- Product description
-

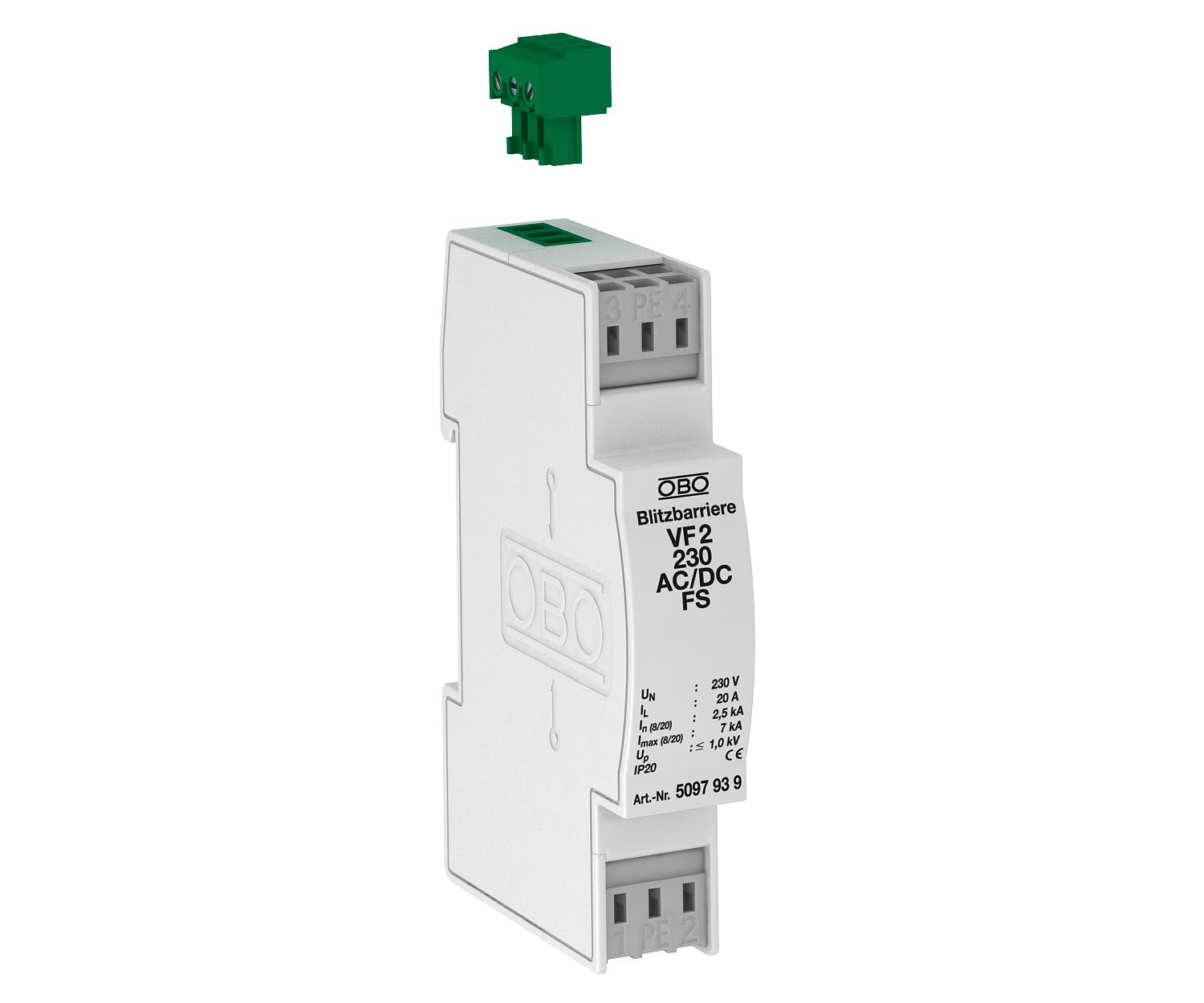

Product descriptionType 3 surge protection/fine network protection to EN 61643-11 with leak current-free remote signalling
• With remote signalling: potential-free NC contact for function monitoring
• With installation-friendly, screwless connection terminals

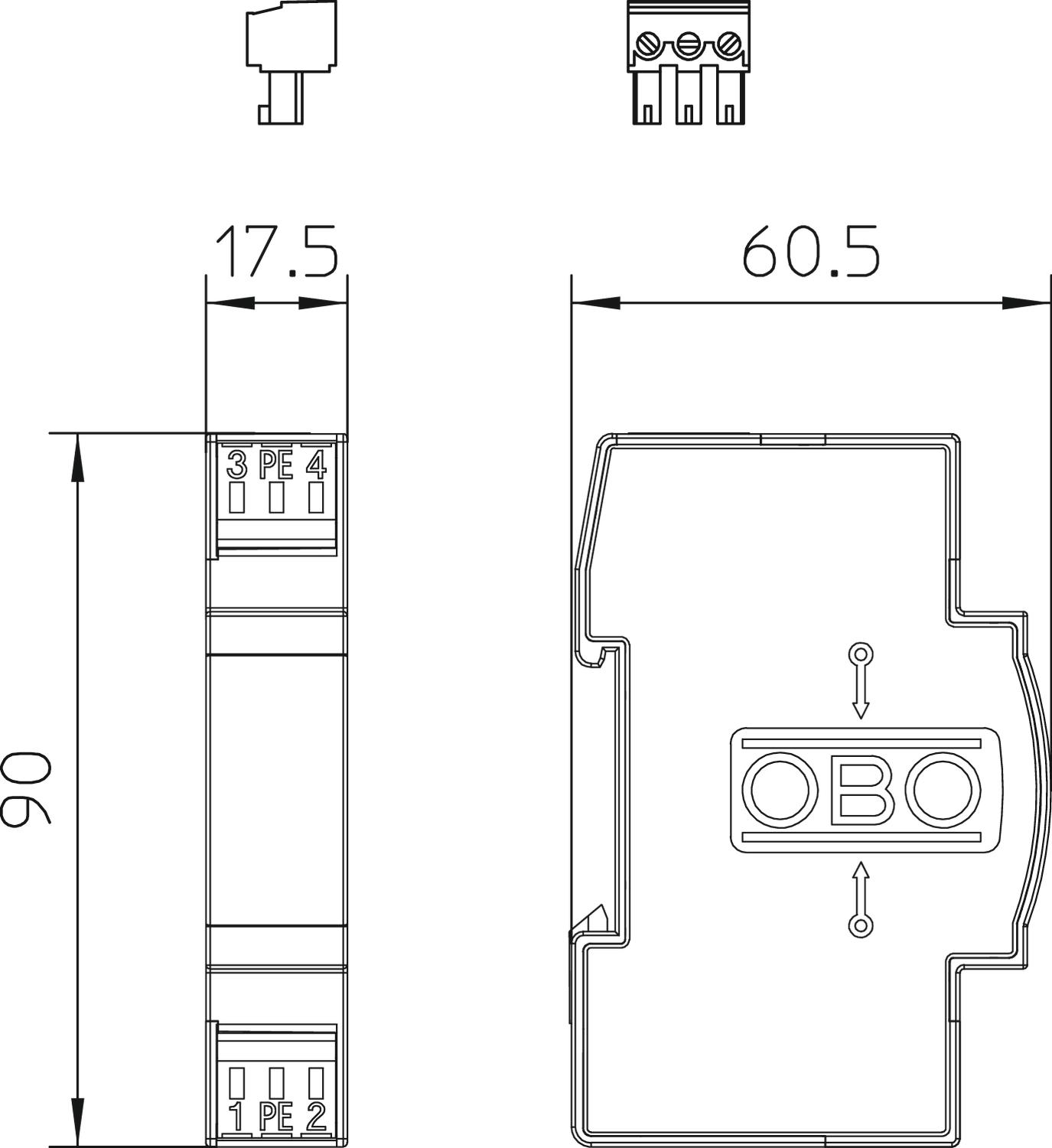

• In space-saving 17.5 mm grid

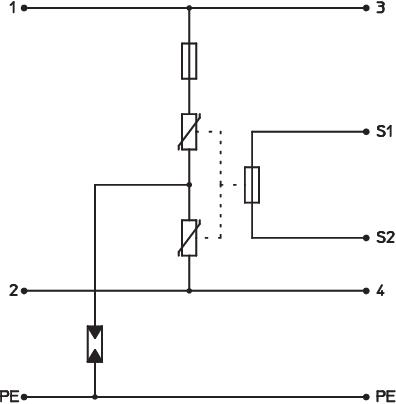

• Y circuit
Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
- Technical data
-
Technical data
Blow-out no Cable type for surge protection devices Power cable AV Conductor cross-section, rigid (single-wire/multiwire), max. 2,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 0,14 mm² Dimension 230V AC FM contacts NC contact Installation type DIN rail 35 mm Lightning protection zone LPZ 2→3 Maximum continuous voltage AC 255 V Maximum continuous voltage DC 350 V Maximum discharge current (8/20 μs) 7 kA Network form Other Nominal discharge current (8/20 µs) 2,5 kA OBO_Nominal load current (input/output terminal) 20 A Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 3 Protection level wire-earth < 1400 V Protection level wire-wire < 1000 V Protection level [L-N] ≤1000 Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device None SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Test class, type 3 yes - All types
- Downloads
-
Data sheet VF2-230-AC/DC-FS / 5097939 , 0.24MB , pdfEU declaration of conformity VF2-230-AC/DC-FS / 5097939 , 0.11MB , pdfREACH Declaration of conformity VF2-230-AC/DC-FS / 5097939 , 0.12MB , pdfRoHS Declaration of conformity VF2-230-AC/DC-FS / 5097939 , 0.13MB , pdfLabel approval UL certificate, VF , 0.26MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfTechnical information Technical information, VF2-....AC/DC-FS , 0.05MB , pdf
