Marking spreading tool for drop-in anchors 235 | M10

morepic-1

morepic-2

Marking spreading tool for drop-in anchors

Item no. 3492974 | EAN 4012196412044

Item no. / Types

Length

Thread

Product description

Product description

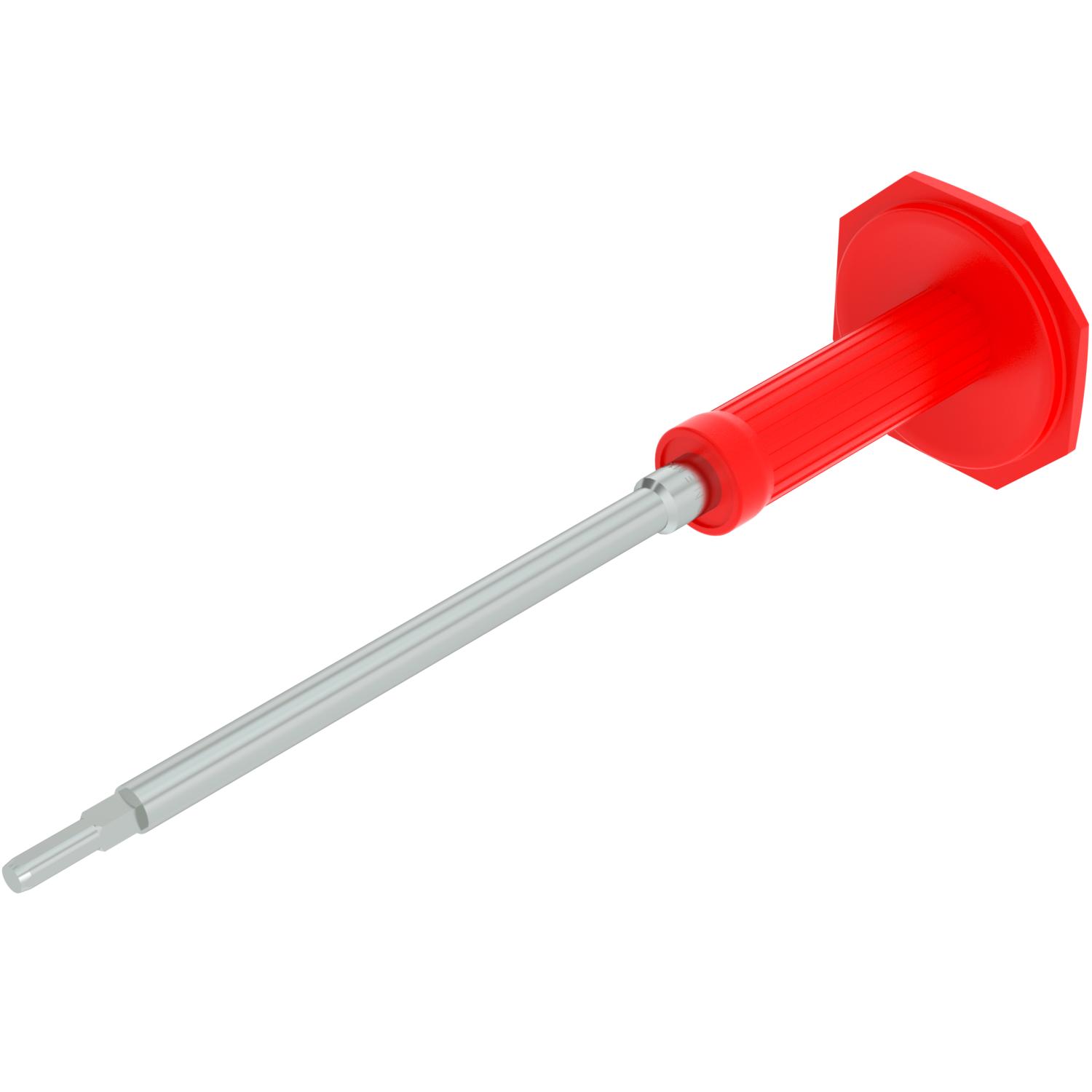

Marking spreading tool with hand protection for drop-in anchors, type E

Technical data

Technical data

Colour	zinc
Length	235 mm
Material	Steel
Pin dimension	10 mm

Surface	Electrogalvanized
Thread	M10
With hand protection	yes

All types

All types

Types	Length	Thread	Item no.	Quantity	SSU
E-MSH 10x40	235 mm	M10	3492974	piece	1 piece
E-MSH 12x50	240 mm	M12	3492978	piece	1 piece

Downloads

Data sheet E-MSH 10x40 / 3492974 , 0.13MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

REACH Declaration of conformity E-MSH 10x40 / 3492974 , 0.12MB , pdf

Download

RoHS Declaration of conformity E-MSH 10x40 / 3492974 , 0.12MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic E-MSH 10x40 / 3492974, 43.35 kB, jpg

Scale drawing E-MSH 10x40 / 3492974, 4.70 kB, jpg

E-MSH 10x40 / 3492974
