Note: This article is discontinued.

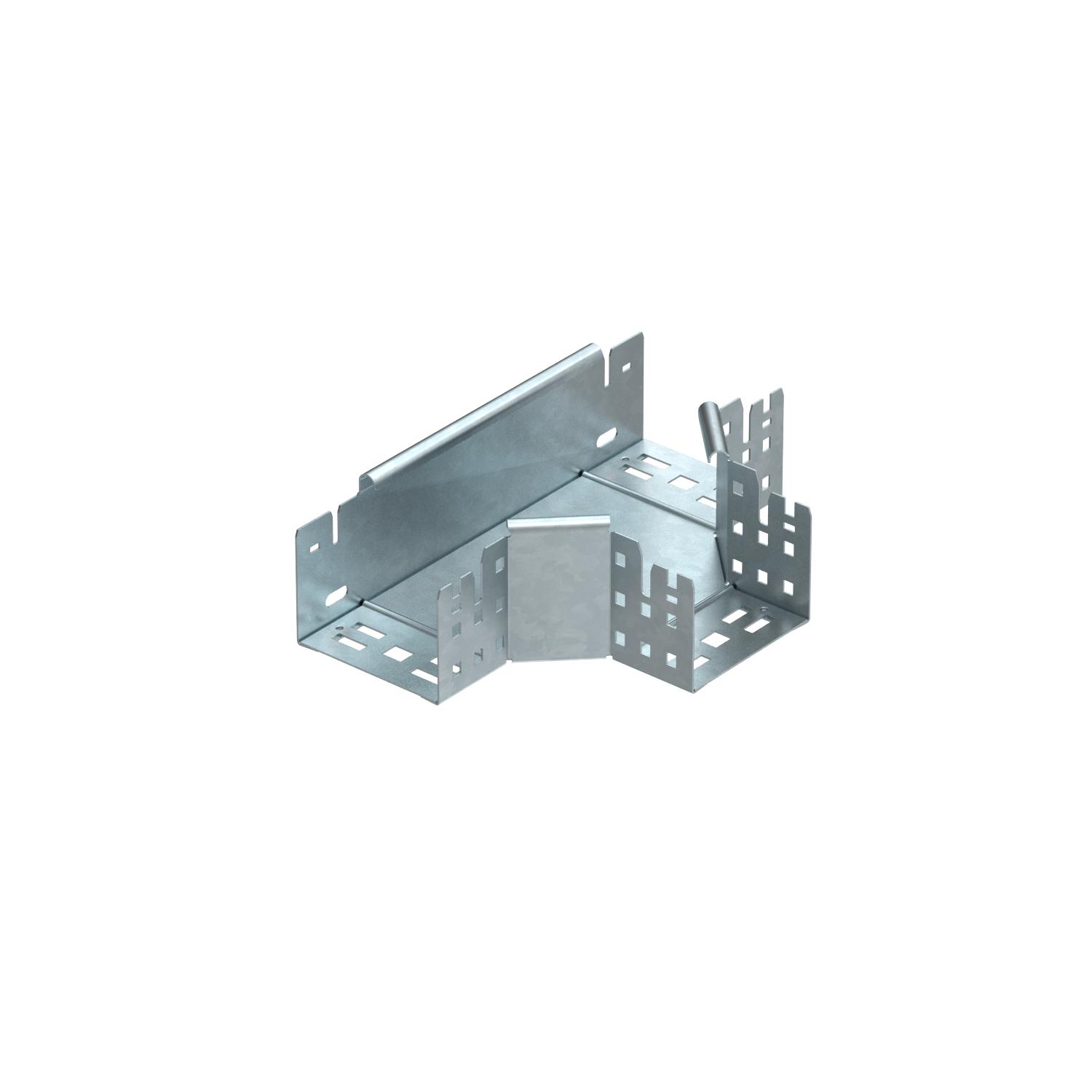

Magic tee 85 FT

Item no. 6041680 | EAN 4012195881414

Steel
Hot-dip galvanised
Product description

Product description

Tee with quick connector system. For all cable tray types of 85 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
Dimension 85x100
Dimension B 100 mm
Height 85 mm
Maintain electrical functions no
Material Steel
NATO hole pattern no
Plate thickness 1,25 mm
Rail thickness 1,25 mm
Rustproof steel, pickled no
Surface Hot-dip galvanised
Type T piece horizontal
Type of connector, cable support system Screwed
Wide-span version no
Width 100 mm
All types

All types

Types Width Material Surface Item no. Quantity SSU
RTM 810 FT 100 mm Steel Hot-dip galvanised 6041680
1 piece
RTM 820 FT 200 mm Steel Hot-dip galvanised 6041682
1 piece
RTM 840 FT 400 mm Steel Hot-dip galvanised 6041686
1 piece
RTM 850 FT 500 mm Steel Hot-dip galvanised 6041688
1 piece
