Note: This article is discontinued.

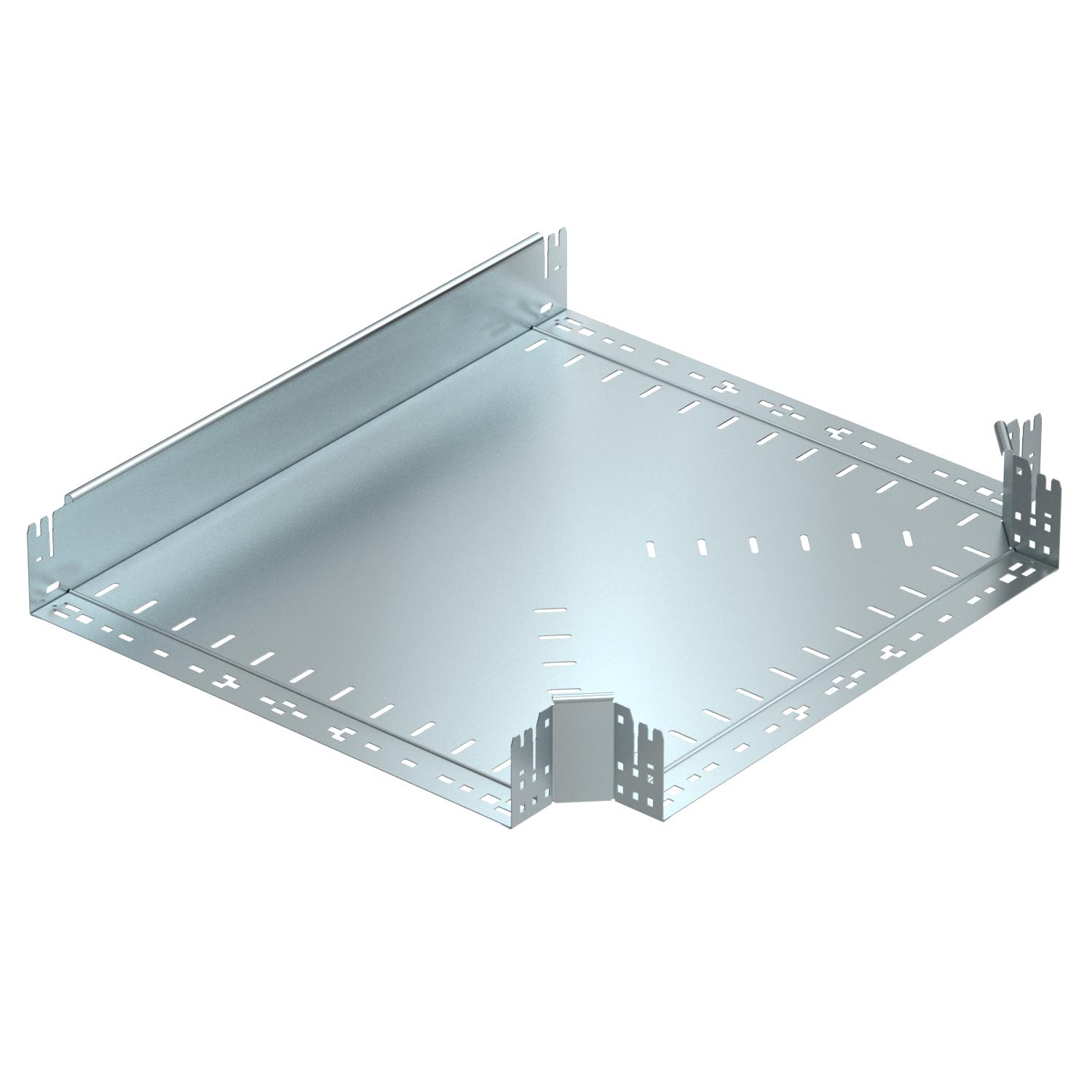

Magic tee 110 FS
Item no. 6042022 | EAN 4012195882411
- Product description
-
Product descriptionTee with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x600 Dimension B 600 mm Height 110 mm Maintain electrical functions no Material Steel NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 600 mm - All types
- Downloads
-
Data sheet RTM 160 FS / 6042022 , 0.24MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RTM 160 FS / 6042022 , 0.10MB , pdfUK Declaration of Conformity RTM 160 FS / 6042022 , 0.14MB , pdfREACH Declaration of conformity RTM 160 FS / 6042022 , 0.12MB , pdfRoHS Declaration of conformity RTM 160 FS / 6042022 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
