Note: This article is discontinued.

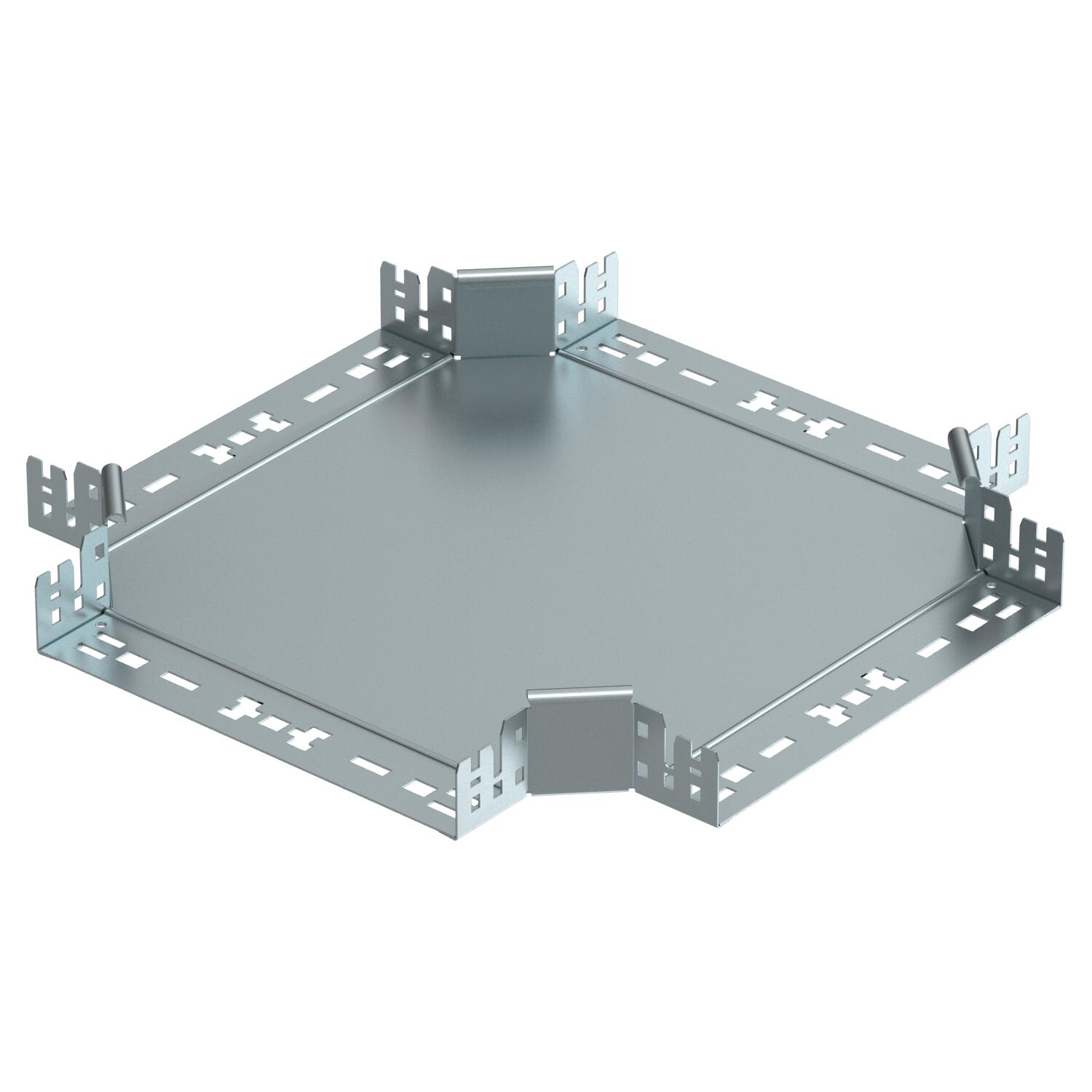

Magic cross-over 60 FS
Item no. 7027007 | EAN 4012195927419
- Product description
-
Product descriptionCross-over with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data

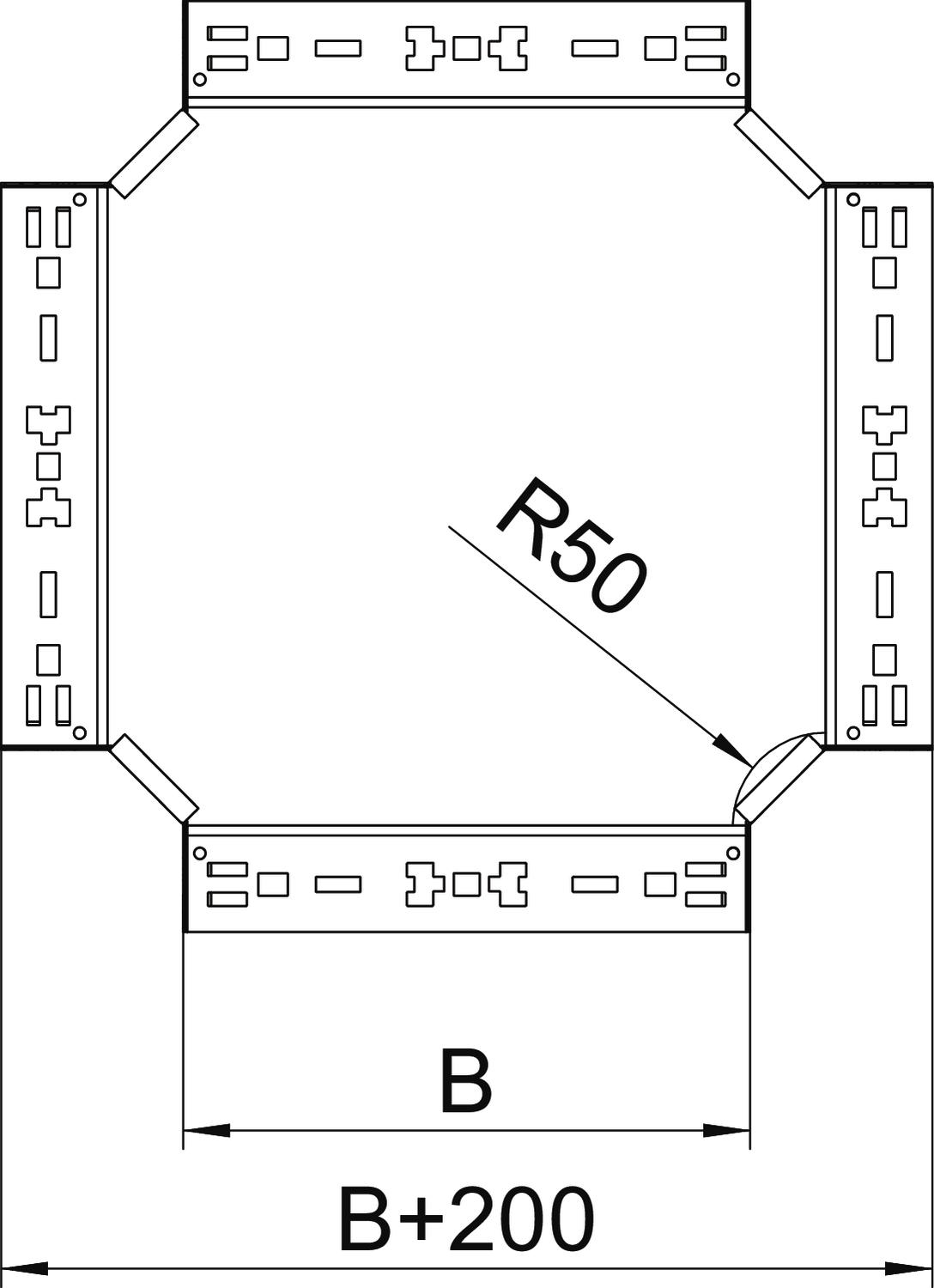

Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 60x300 Dimension B 300 mm Fire protection Use of fire protection ceilings Height 60 mm Height 2 in Maintain electrical functions yes Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 300 mm Width 12 in - All types
- Downloads
-
Data sheet RKM 630 FS / 7027007 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RKM 630 FS / 7027007 , 0.10MB , pdfREACH Declaration of conformity RKM 630 FS / 7027007 , 0.12MB , pdfRoHS Declaration of conformity RKM 630 FS / 7027007 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
