Note: This article is discontinued.

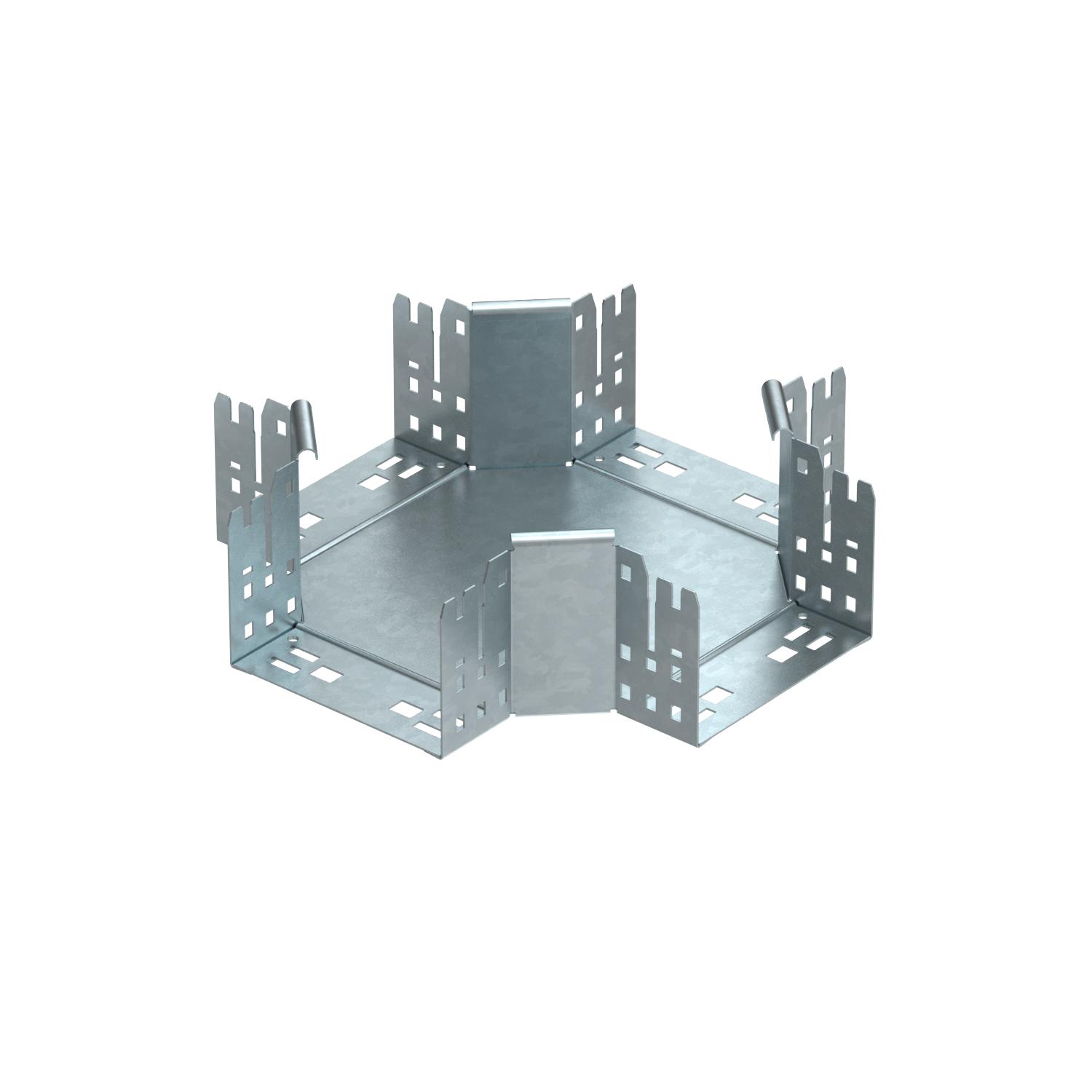

Magic cross-over 110 FT
Item no. 7027183 | EAN 4012195928164
- Product description
-
Product descriptionCross-over with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x150 Dimension B 150 mm Height 110 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 110 mm - All types
- Downloads
-
Data sheet RKM 115 FT / 7027183 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RKM 115 FT / 7027183 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
