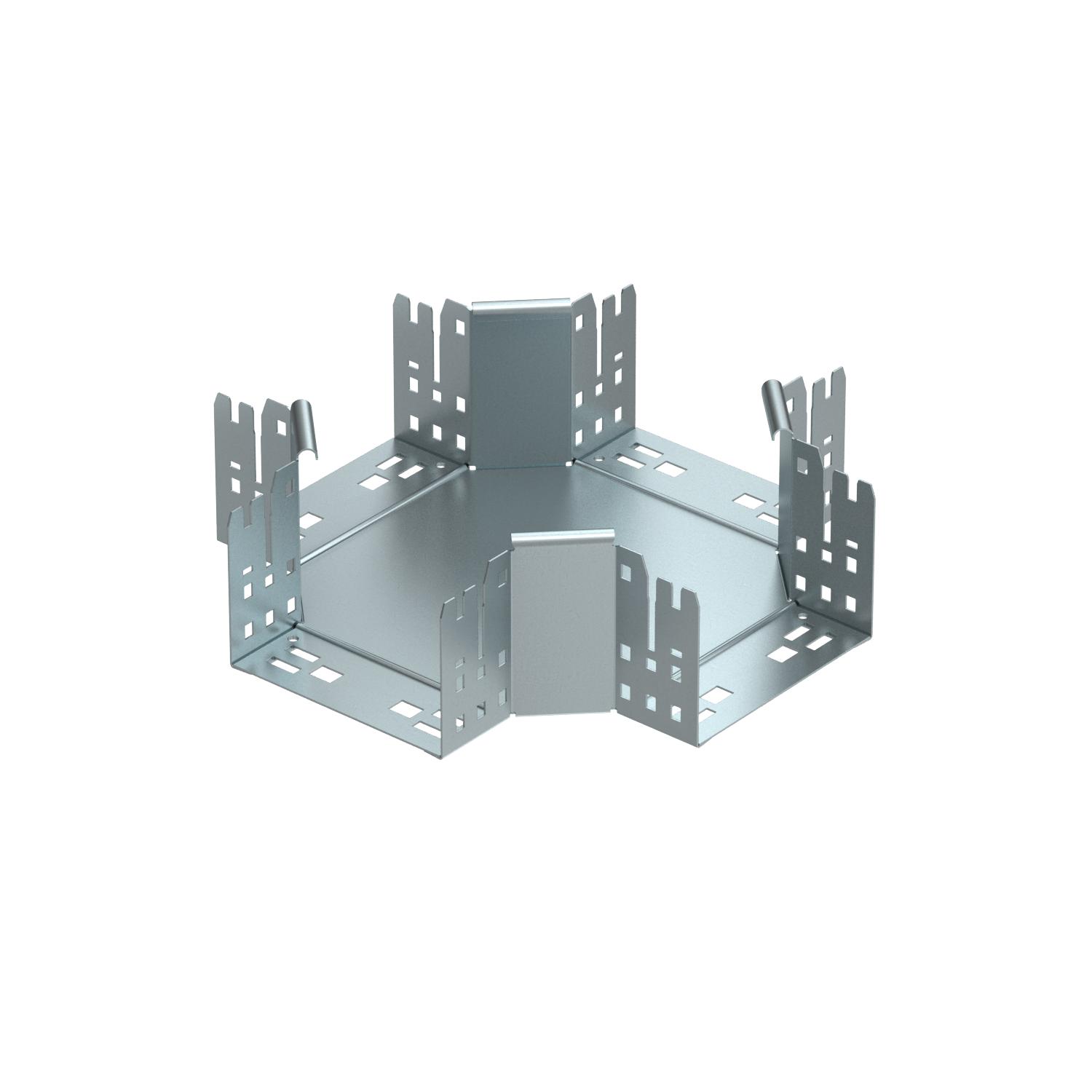

Magic cross-over 110 FS
Item no. 7027163 | EAN 4012195928058
- Product description
-
Product description
Cross-over with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x150 Dimension B 150 mm Height 110 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 150 mm - All types
- Downloads
-
Data sheet RKM 115 FS / 7027163 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RKM 115 FS / 7027163 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
