Product description

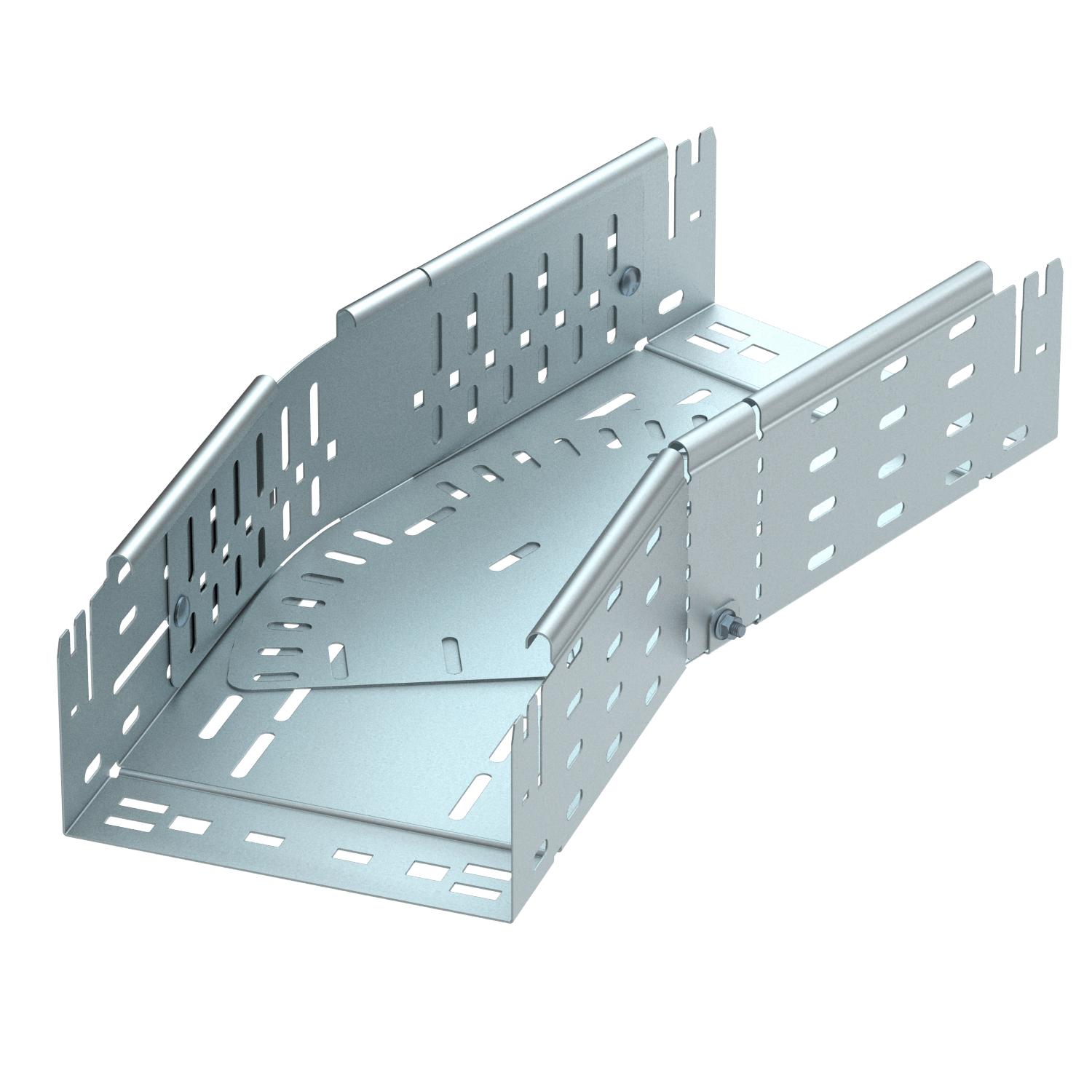

Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Horizontal Connector version Integrated connector Dimension 110x100 Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Dimensions

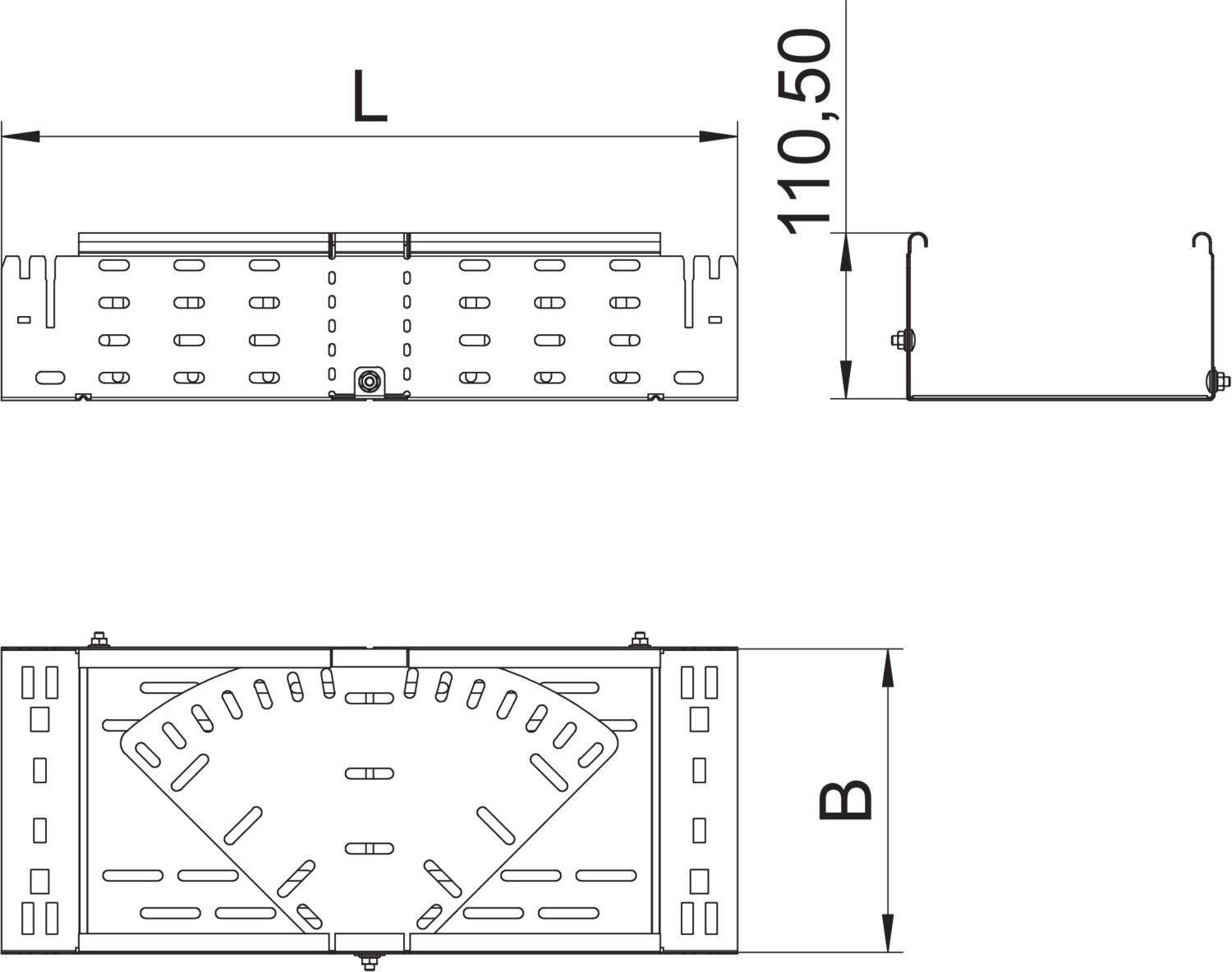

Dimension B 100 mm Dimension L 340 mm Height 110 mm Width 100 mm - All types
-
All types
- Downloads
-
Data sheet RBMV 110 FT / 6040700 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RBMV 110 FT / 6040700 , 0.16MB , pdfREACH Declaration of conformity RBMV 110 FT / 6040700 , 0.12MB , pdfRoHS Declaration of conformity RBMV 110 FT / 6040700 , 0.12MB , pdf
