Note: This article is discontinued.

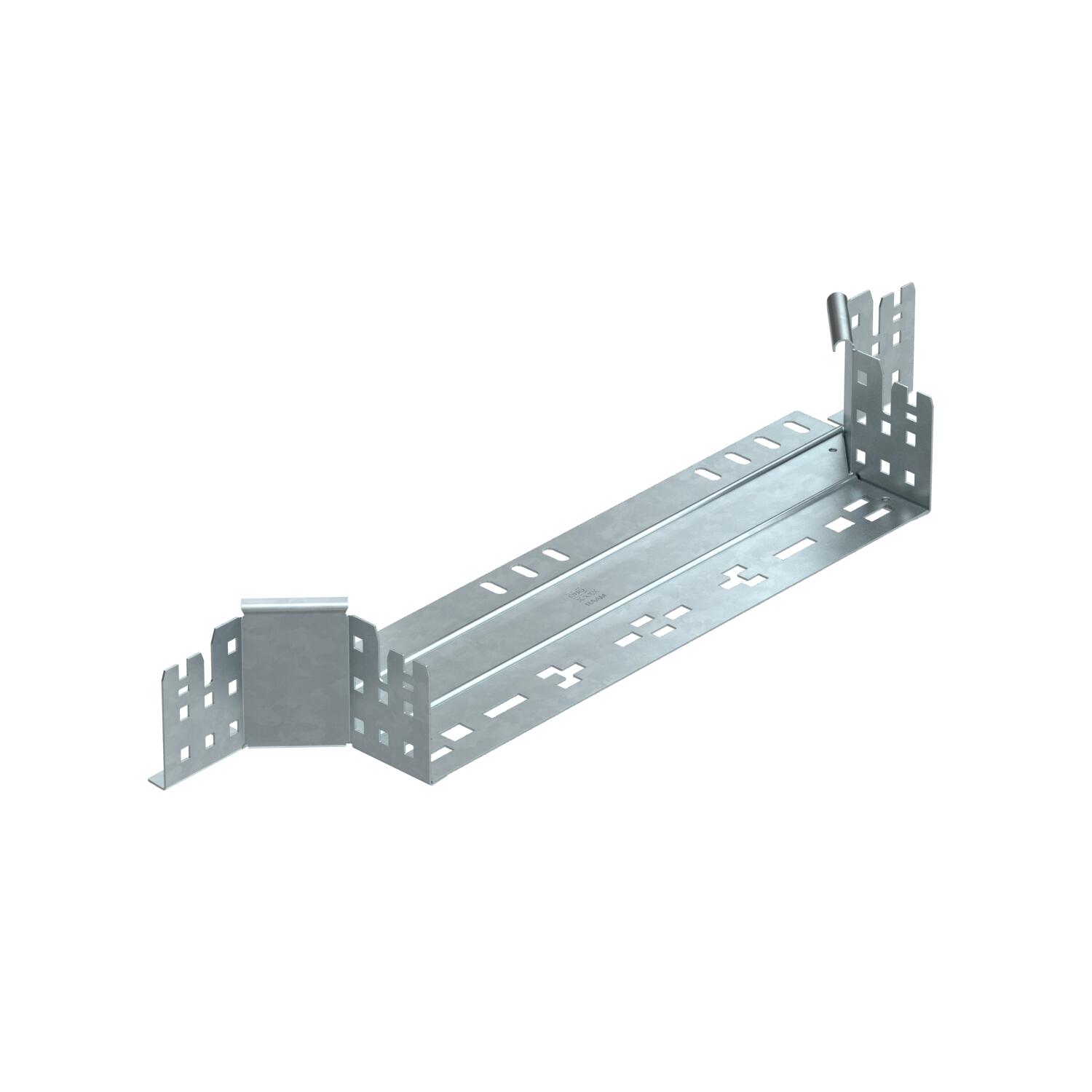

Magic add-on tee 85 FT
Item no. 6041596 | EAN 4012195880974
- Product description
-
Product descriptionAdd-on tee with quick connector system. For all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 85x400 Dimension B 400 mm Height 85 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Click fastening Wide-span version no Width 400 mm - All types
- Downloads
-
Data sheet RAAM 840 FT / 6041596 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAAM 840 FT / 6041596 , 0.10MB , pdfREACH Declaration of conformity RAAM 840 FT / 6041596 , 0.12MB , pdfRoHS Declaration of conformity RAAM 840 FT / 6041596 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
