Note: This article is discontinued.

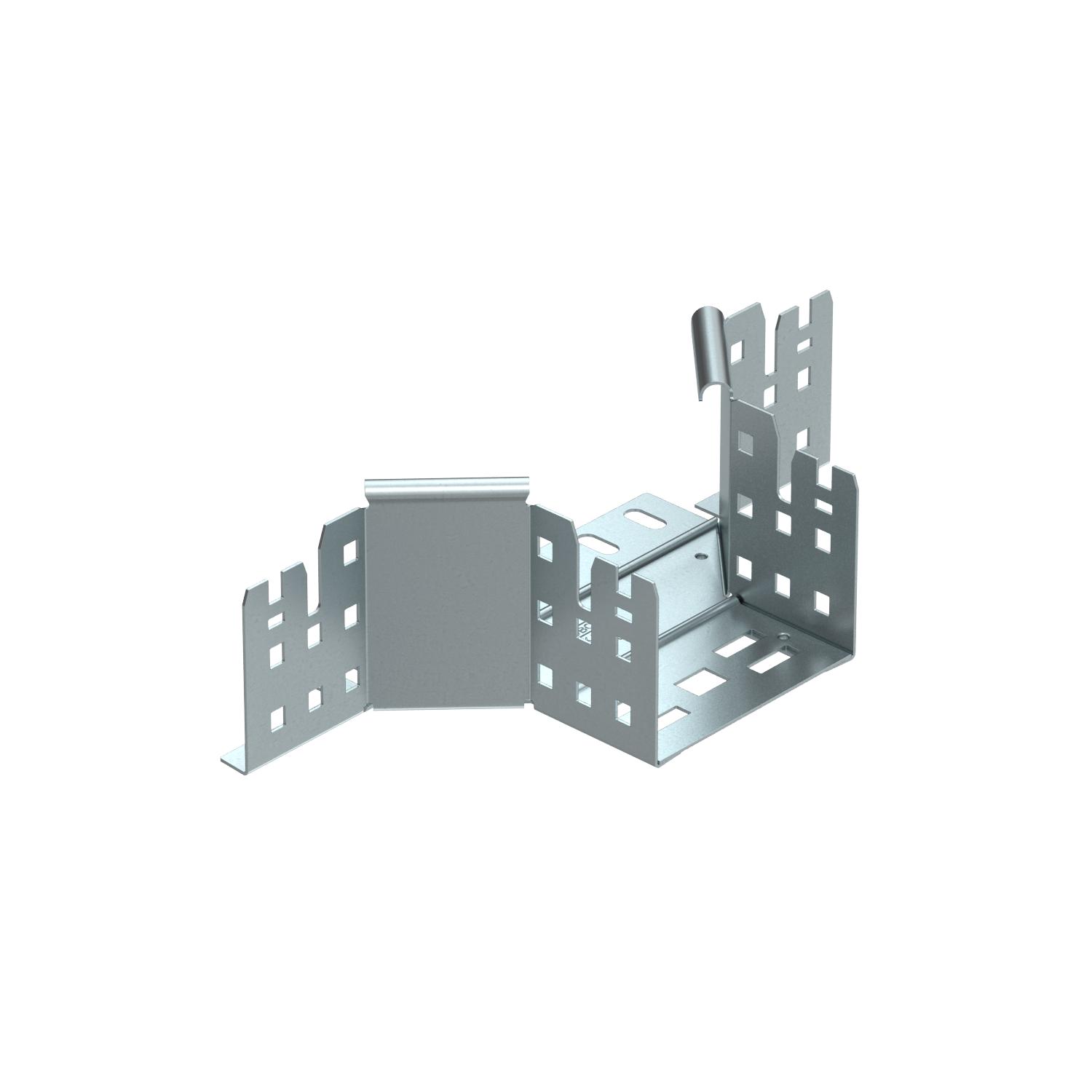

Magic add-on tee 85 FS
Item no. 6041570 | EAN 4012195880851
- Product description
-
Product descriptionAdd-on tee with quick connector system. For all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 85x100 Dimension B 100 mm Height 85 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 100 mm - All types
- Downloads
-
Data sheet RAAM 810 FS / 6041570 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAAM 810 FS / 6041570 , 0.10MB , pdfREACH Declaration of conformity RAAM 810 FS / 6041570 , 0.12MB , pdfRoHS Declaration of conformity RAAM 810 FS / 6041570 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
