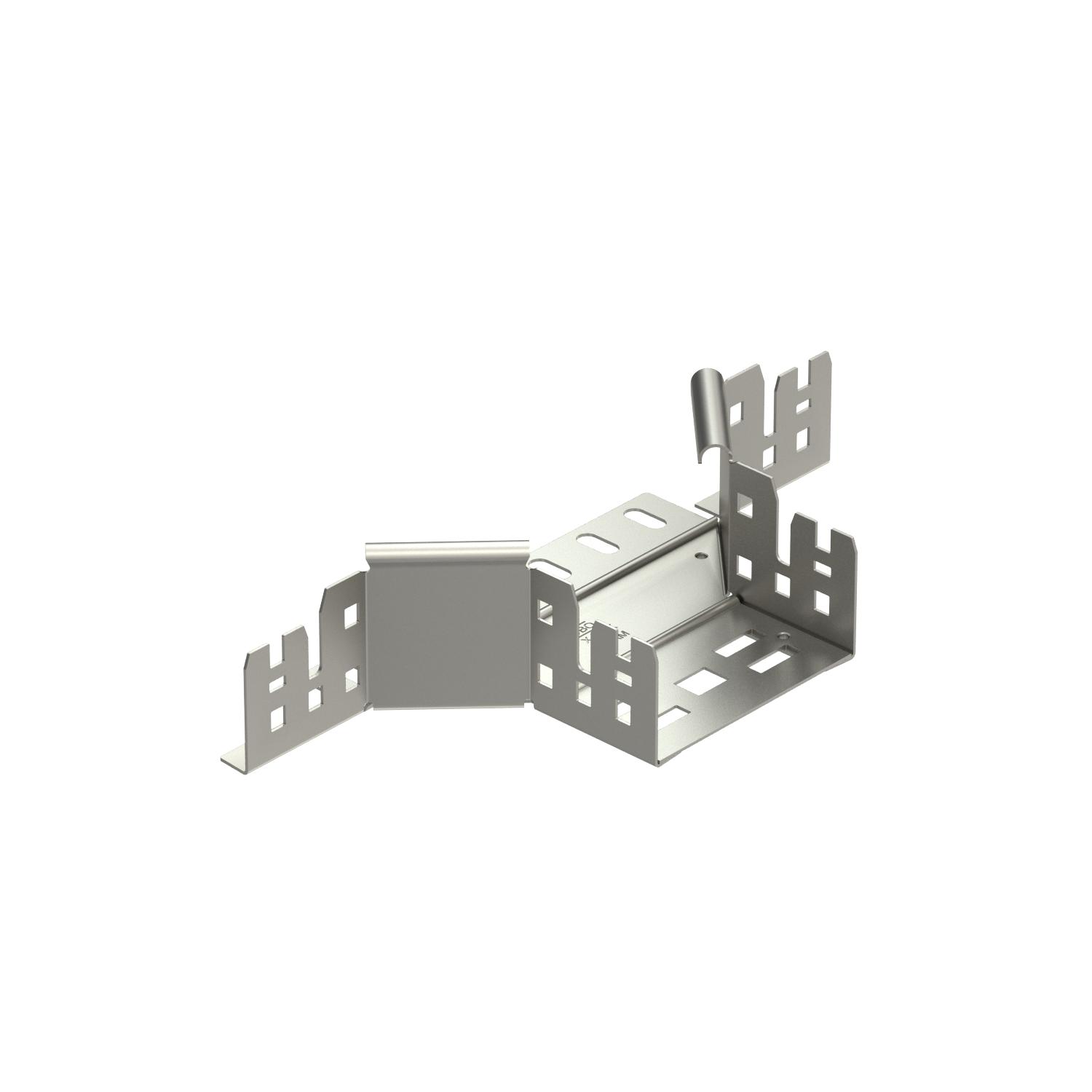

Magic add-on tee 60 A2

Item no. 6041270 | EAN 4012195878797

Item no. / Types

Width

Product description

Product description

Add-on tee with quick connector system. For all cable tray types of 60 mm side height.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Connector version	Integrated connector
Dimension	60x100
Maintain electrical functions	no
Material	Stainless steel
Material thickness, floor plate	1,25 mm

NATO hole pattern	no
Plate thickness	1,25 mm
Rail thickness	1,25 mm
Rustproof steel, pickled	no
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Wide-span version	no

Dimensions

Dimension B	100 mm
Height	60 mm

Width	100 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
RAAM 610 A2	100 mm	6041270	piece	1 piece
RAAM 620 A2	200 mm	6041275	piece	1 piece
RAAM 630 A2	300 mm	6041277	piece	1 piece
RAAM 640 A2	400 mm	6041279	piece	1 piece
RAAM 650 A2	500 mm	6041282	piece	1 piece
RAAM 660 A2	600 mm	6041284	piece	1 piece
