Note: This article is discontinued.

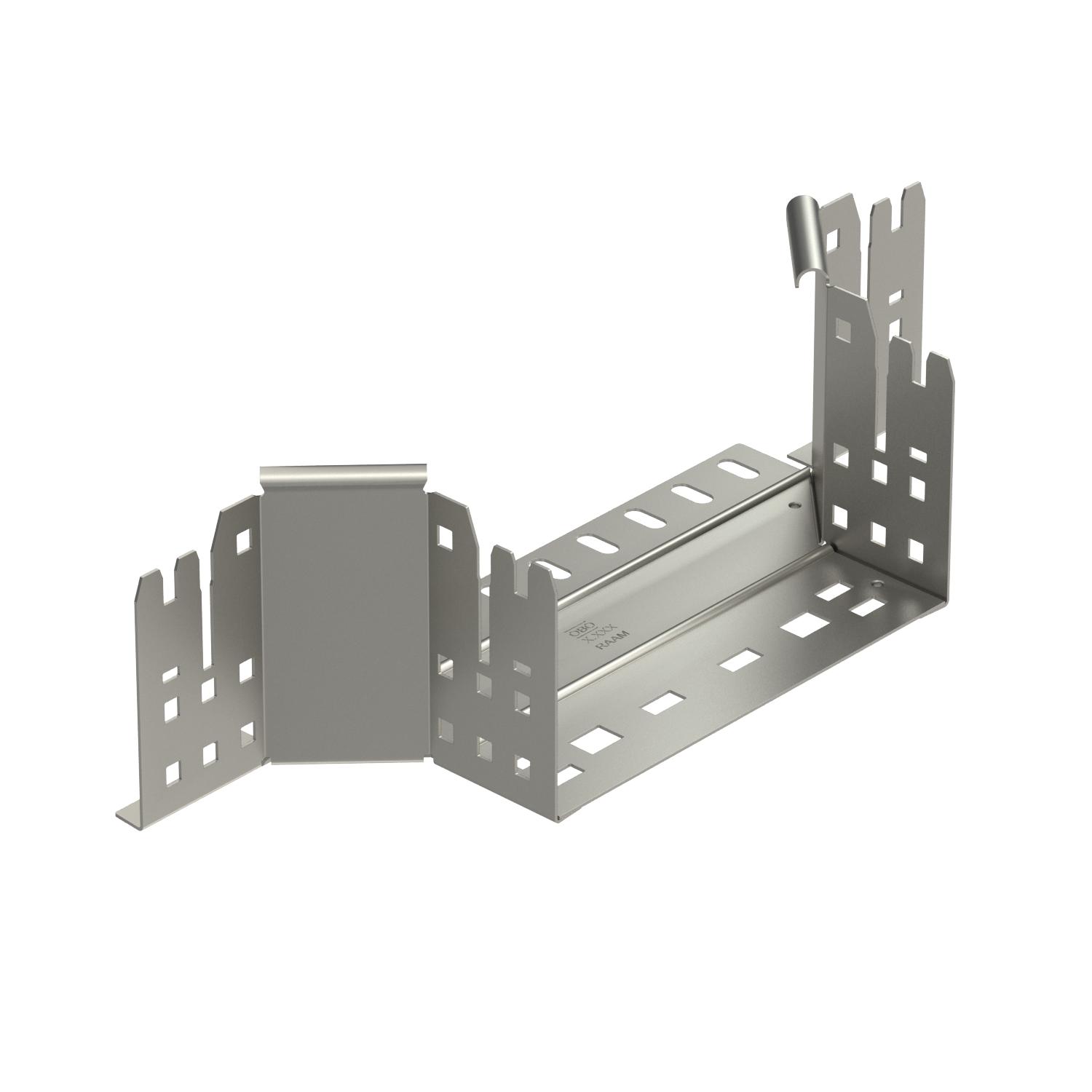

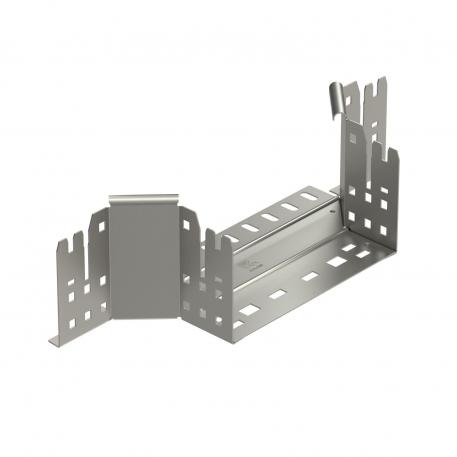

Magic add-on tee 110 A2
Item no. 6041962 | EAN 4012195882183
- Product description
-
Product descriptionAdd-on tee with quick connector system. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Dimension 110x200 Dimension B 200 mm Height 110 mm Maintain electrical functions no Material Stainless steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Bright, treated Type of connector, cable support system Click fastening Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet RAAM 120 A2 / 6041962 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAAM 120 A2 / 6041962 , 0.10MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
