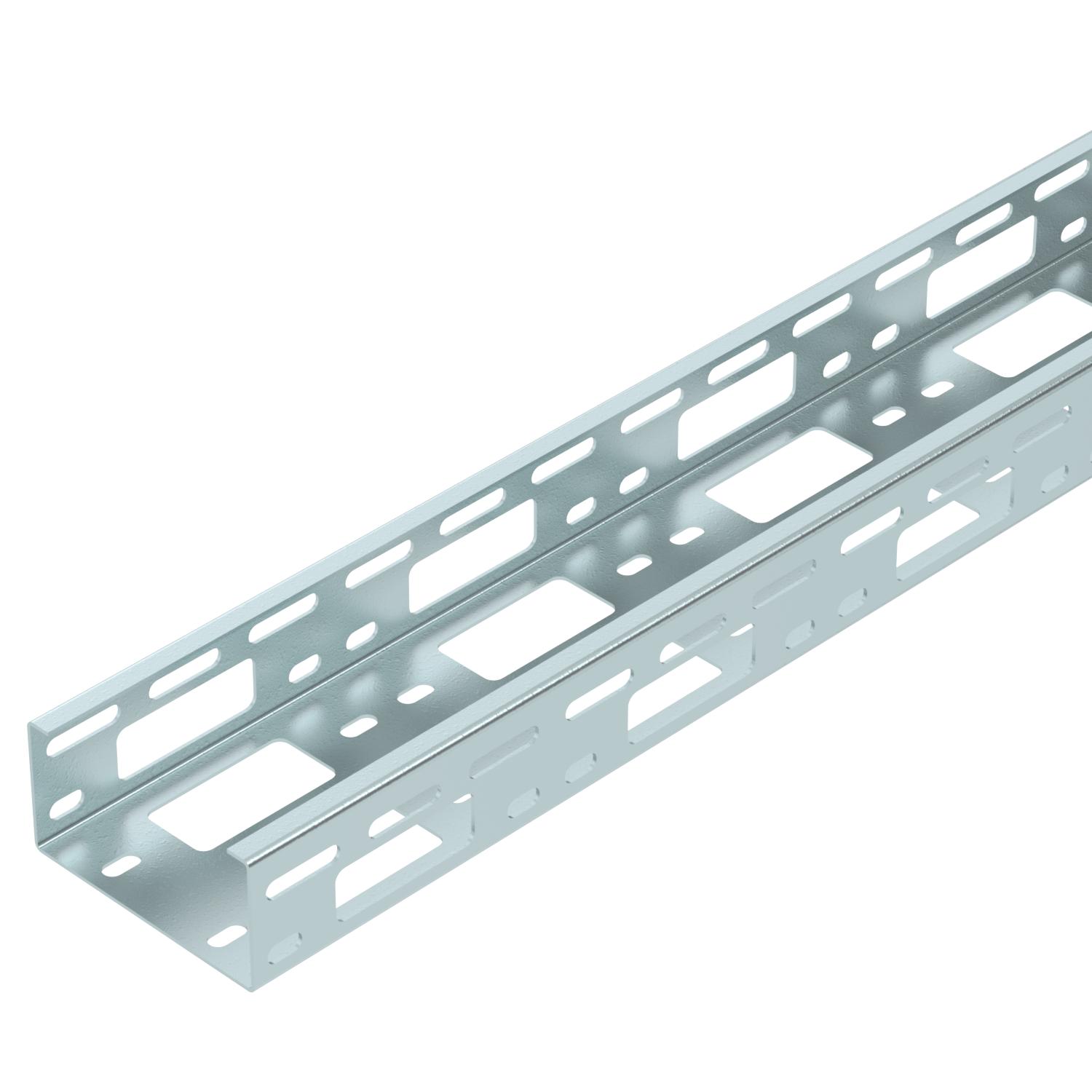

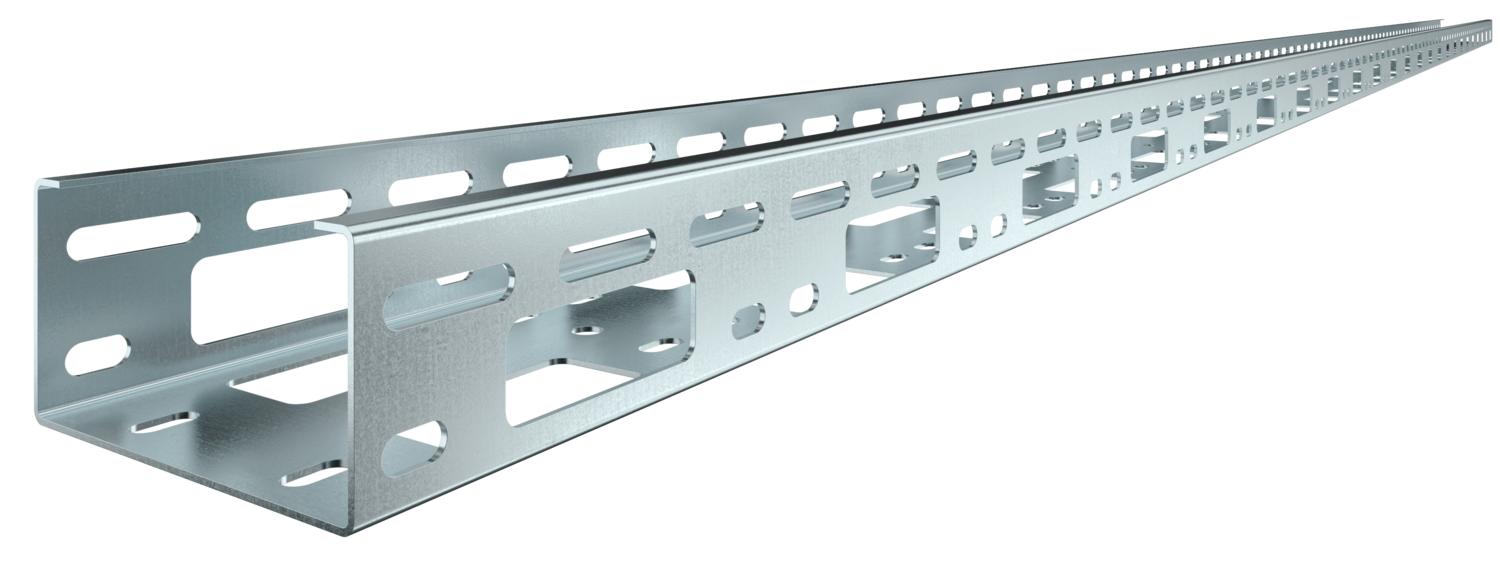

Luminaire support channel 100 FS
Item no. 6075024 | EAN 4012195247135
- Product description
-
Product descriptionPerforated luminaire support tray for cable routing and luminaire mounting.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

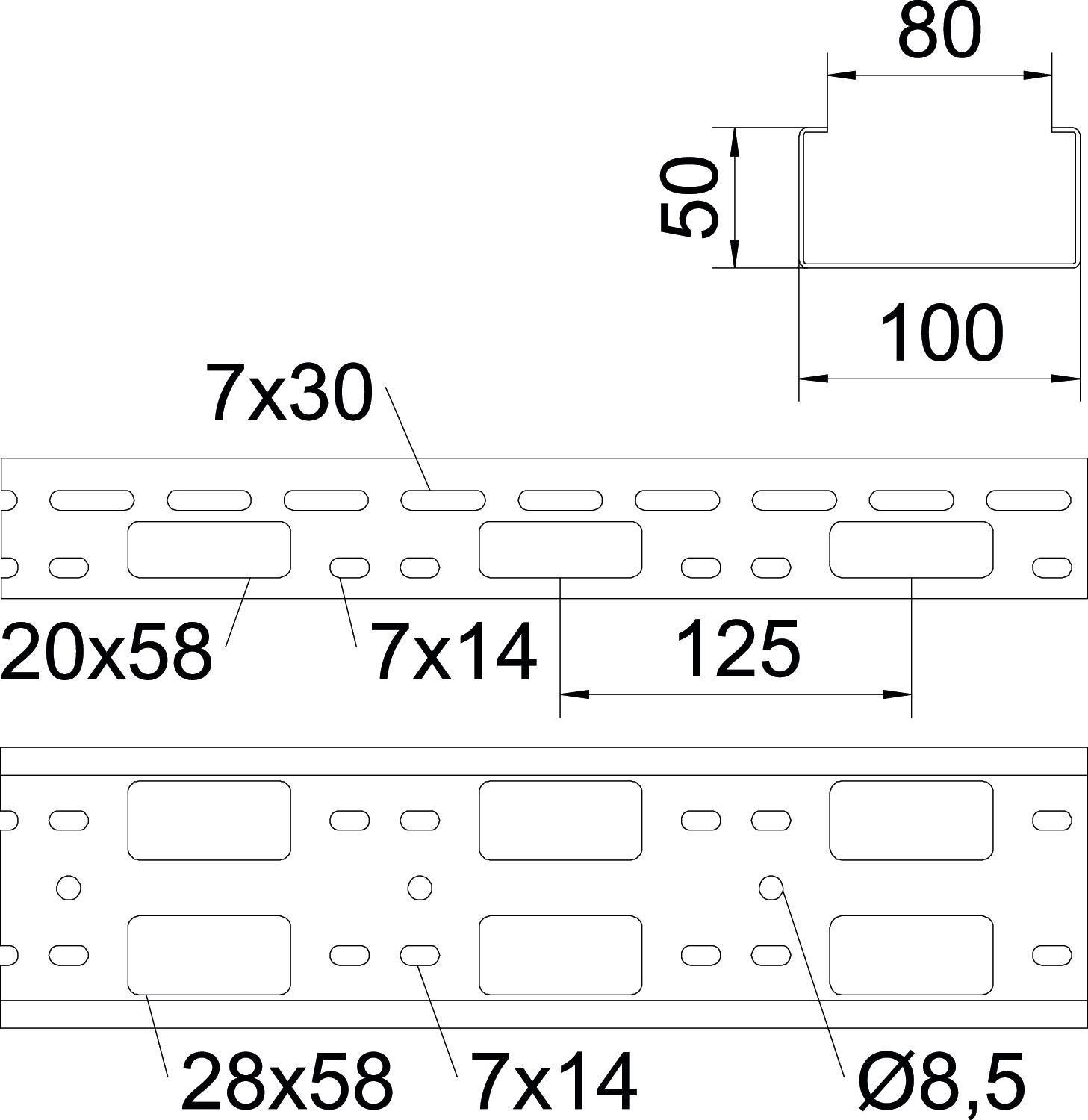

Colour zinc Connector version Without connectors Dimension 50x100x6000 Height 50 mm Length 6000 mm Material Steel Plate thickness 1,5 mm Support spacing 1.0 m 1,7 kN/m Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 1 kN/m Support spacing 2.5 m 0,6 kN/m Support spacing 3.0 m 0,4 kN/m Surface Strip galvanized Usable cross-section 46 cm² Width 100 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Straight and angle connector 50 FT
VF AZK FT 6066550 25 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece

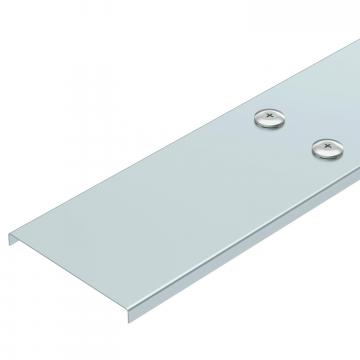

Cover with turn buckle FS
AZDMD 100 FS 6080227 3 m Mounting accessories
Products Types Item no. Quantity SSU

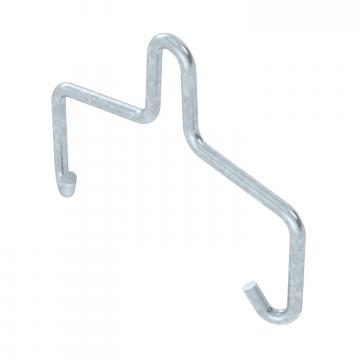

FT suspension bracket 100
AHB 100 D5 FT 6066510 50 piece - Downloads
-
