Long trough

Item no. 1195859 | EAN 4012195082392

Item no. / Types

Clamping range D, min.

Clamping range D, max.

for clip 2056/M, min.

for clip 2056/M, max.

Product description

Product description

In addition to the clamp clip, to increase the support area for cables with integrated maintenance of electrical function, a long trough (L = 200 mm) is mounted.

Technical data

Technical data

Clamping range D, max.	44 mm
Clamping range D, min.	38 mm
Counter-trough/clip version	Long trough
CO₂ Footprint (GWP) Cradle-to-Gate	0,426 kg CO₂e / 1 Piece

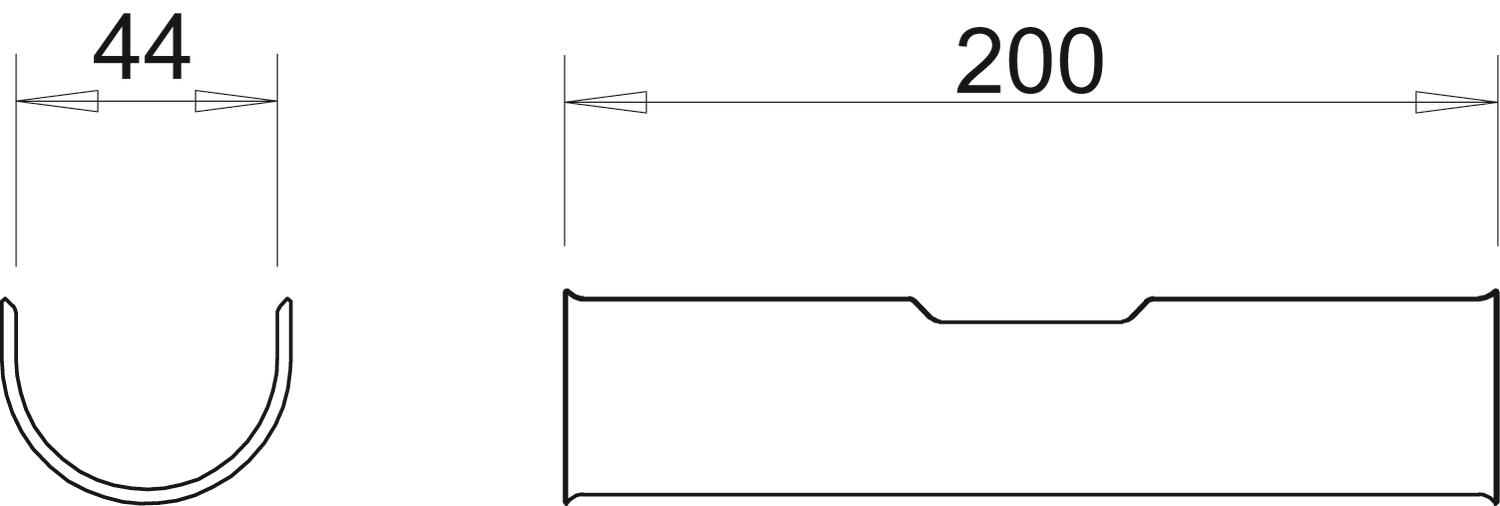

Dimension	38-44, 200mm

for clip 2056/M, max.	46
for clip 2056/M, min.	40 mm
Material	Steel
Surface	Strip galvanized

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	for clip 2056/M, min.	for clip 2056/M, max.	Item no.	Quantity	SSU
2058 LW 10	6 mm	10 mm	8 mm	12	1195794	piece	50 piece
2058 LW 14	10 mm	14 mm	12 mm	16	1195808	piece	50 piece
2058 LW 20	14 mm	20 mm	16 mm	22	1195816	piece	50 piece
2058 LW 26	20 mm	26 mm	22 mm	28	1195824	piece	25 piece
2058 LW 32	26 mm	32 mm	28 mm	34	1195832	piece	25 piece
2058 LW 38	32 mm	38 mm	34 mm	40	1195840	piece	25 piece
2058 LW 44	38 mm	44 mm	40 mm	46	1195859	piece	25 piece
2058 LW 50	44 mm	50 mm	46 mm	52	1195867	piece	25 piece
2058 LW 56	50 mm	56 mm	52 mm	58	1195875	piece	25 piece
2058 LW 62	56 mm	62 mm	58 mm	64	1195883	piece	25 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Clamp clip, single, FT metal pressure trough	2056 M 46 FT	1156063	piece	100 piece
Clamp clip, single, FT metal pressure trough	2056U M 46 FT	1158074	piece	100 piece
