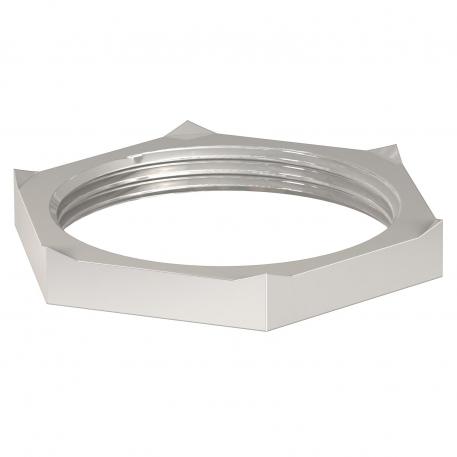

Locknut, metric thread with cutting teeth M20_x_1,5 | 24

morepic-1

morepic-2

Locknut, metric thread with cutting teeth

Item no. 2091713 | EAN 4012195903758

Item no. / Types

Thread

WAF

Product description

Product description

Locknuts DIN 46319 with metric thread IEC 423.

* Prices according to DEL notation.

Technical data

Technical data

Dimension	M20x1,5
Dimension E	27,7 mm
Dimension L	4,5 mm
Fibre-glass reinforced	no
Halogen-free	no
Impact-resistant	no

Material	Brass
Nominal thread size metric/PG	20
Surface	Nickel-plated
Thread	M20_x_1,5
Thread type	Metric
WAF	24

All types

All types

Types	Thread	WAF	Item no.	Quantity	SSU
169 MSS M12	M12_x_1,5	15	2091705	piece	50 piece
169 MSS M16	M16_x_1,5	19	2091709	piece	50 piece
169 MSS M20	M20_x_1,5	24	2091713	piece	50 piece
169 MSS M25	M25_x_1,5	30	2091717	piece	50 piece
169 MSS M32	M32_x_1,5	36	2091721	piece	50 piece
169 MSS M40	M40_x_1,5	46	2091725	piece	25 piece
169 MSS M50	M50_x_1,5	60	2091729	piece	25 piece
169 MSS M63	M63_x_1,5	70	2091733	piece	25 piece

Downloads

Data sheet 169 MSS M20 / 2091713 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

REACH Declaration of conformity 169 MSS M20 / 2091713 , 0.12MB , pdf

Download

RoHS Declaration of conformity 169 MSS M20 / 2091713 , 0.12MB , pdf

Download

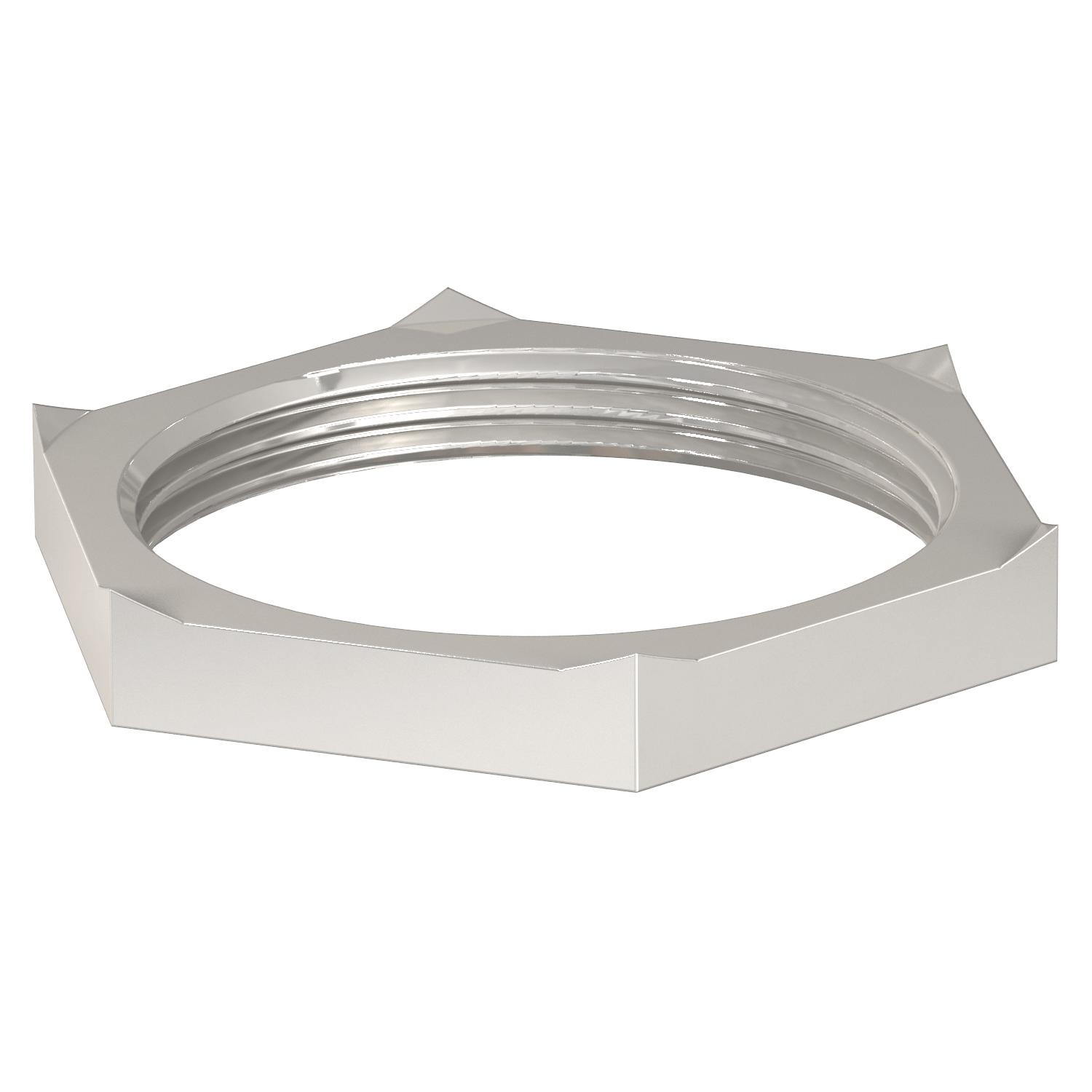

Product graphic 169 MSS M20 / 2091713, 63.32 kB, jpg

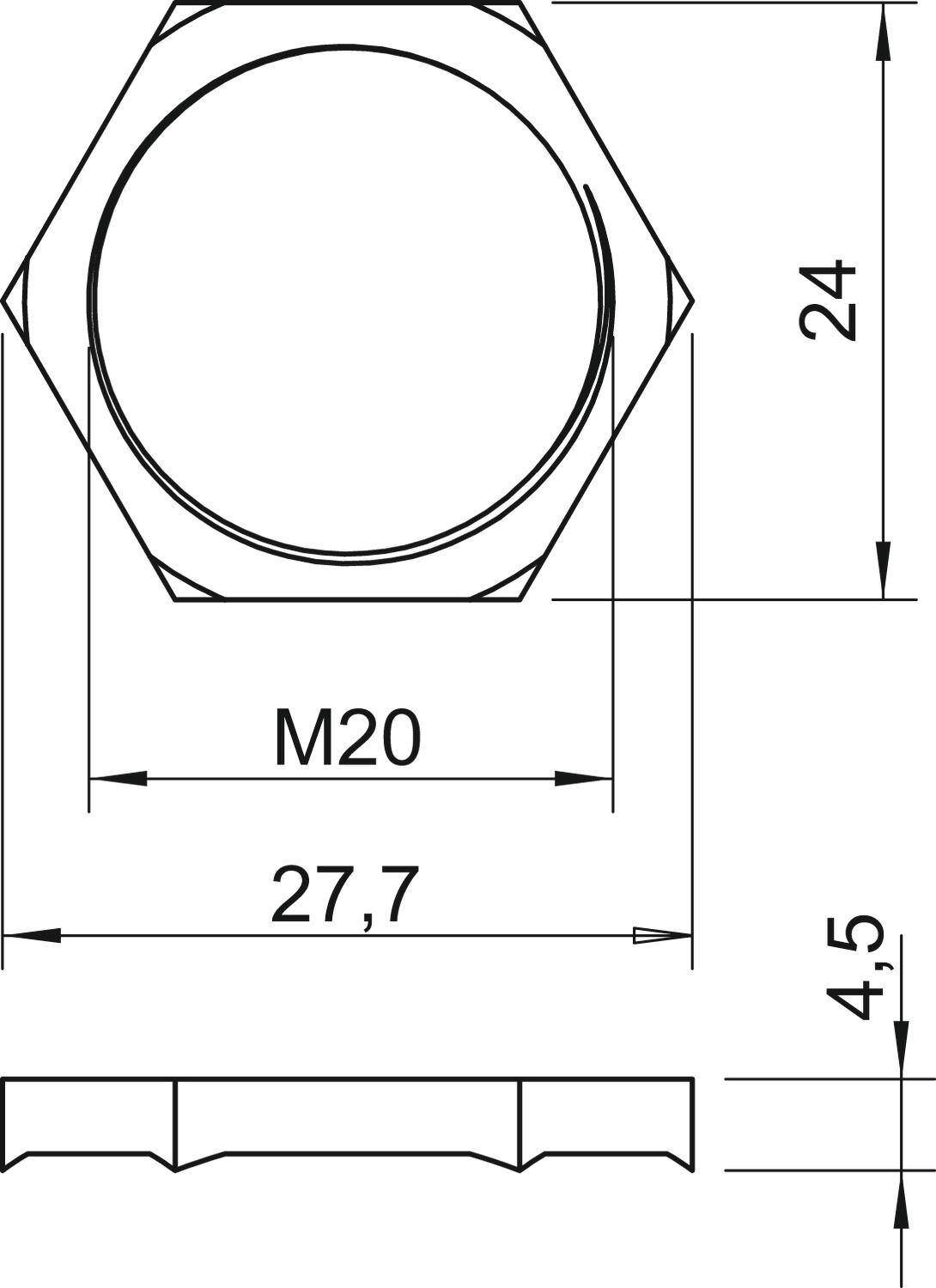

Scale drawing 169 MSS M20 / 2091713, 72.37 kB, jpg

169 MSS M20 / 2091713
