Locknut, metric thread M75_x_1,5 | 90

Locknut, metric thread

Item no. 2091685 | EAN 4012195897712

Item no. / Types

Thread

WAF

Back to overview

Product description

Product description

Locknut to DIN 46319 with metric thread IEC 423.

* Prices according to DEL notation.

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	0,1385 kg CO₂e / 1 Piece
Dimension	M75
Dimension E	100 mm
Dimension L	8 mm
Fibre-glass reinforced	no
Halogen-free	no
Impact-resistant	no

Material	Brass
Nominal thread size metric/PG	75
Surface	Nickel-plated
Thread	M75_x_1,5
Thread type	Metric
WAF	90

All types

All types

Types	Thread	WAF	Item no.	Quantity	SSU
169 MS M12	M12_x_1,5	15	2091607	piece	100 piece
169 MS M16	M16_x_1,5	20	2091615	piece	100 piece
169 MS M20	M20_x_1,5	24	2091623	piece	100 piece
169 MS M25	M25_x_1,5	30	2091631	piece	100 piece
169 MS M32	M32_x_1,5	35	2091658	piece	100 piece
169 MS M40	M40_x_1,5	45	2091666	piece	50 piece
169 MS M50	M50_x_1,5	55	2091674	piece	50 piece
169 MS M63	M63_x_1,5	70	2091682	piece	25 piece
169 MS M75	M75_x_1,5	90	2091685	piece	3 piece

Downloads

Data sheet 169 MS M75 / 2091685 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure False ceiling installations , 2.70MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

REACH Declaration of conformity 169 MS M75 / 2091685 , 0.12MB , pdf

Download

RoHS Declaration of conformity 169 MS M75 / 2091685 , 0.12MB , pdf

Download

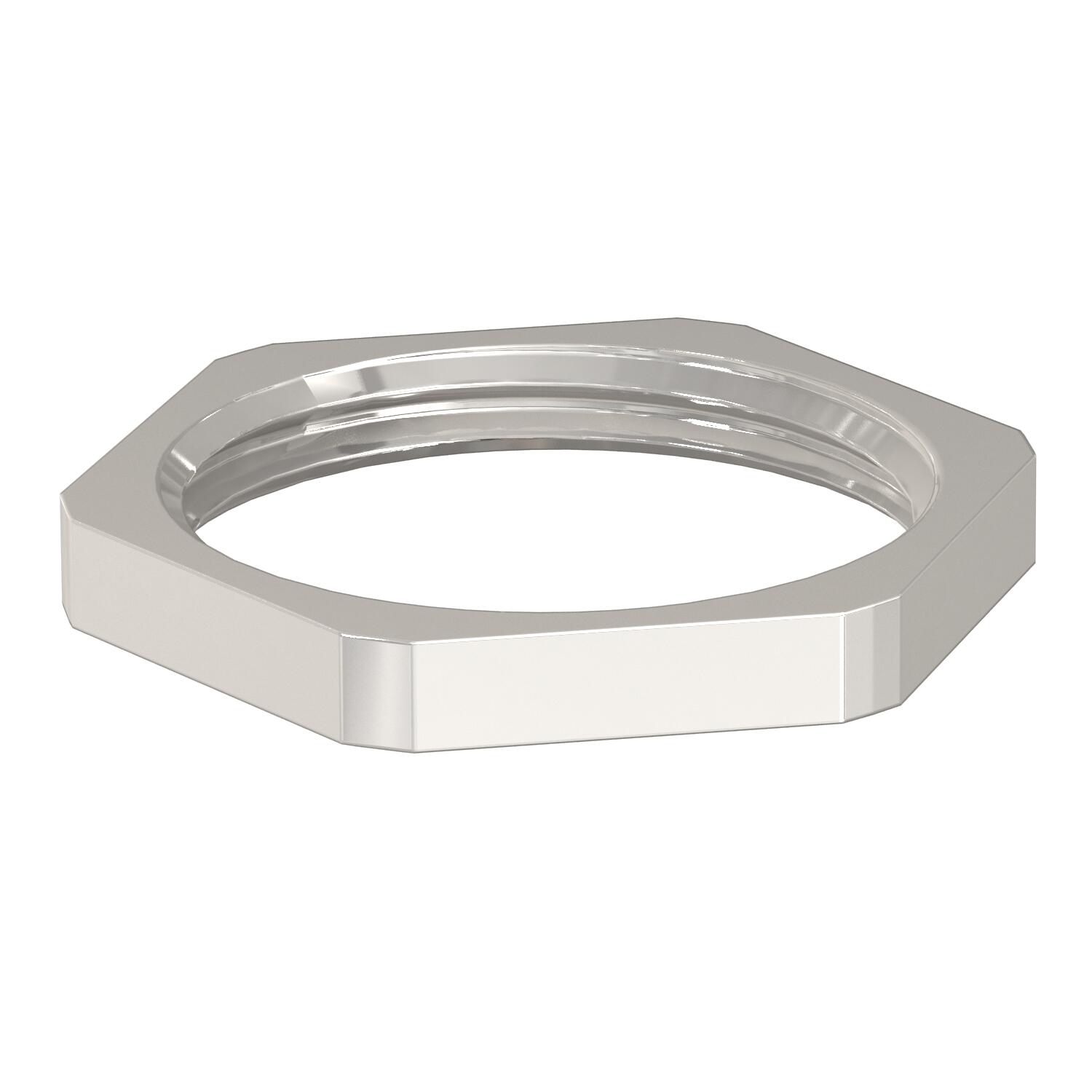

Product graphic 169 MS M75 / 2091685, 54.32 kB, jpg

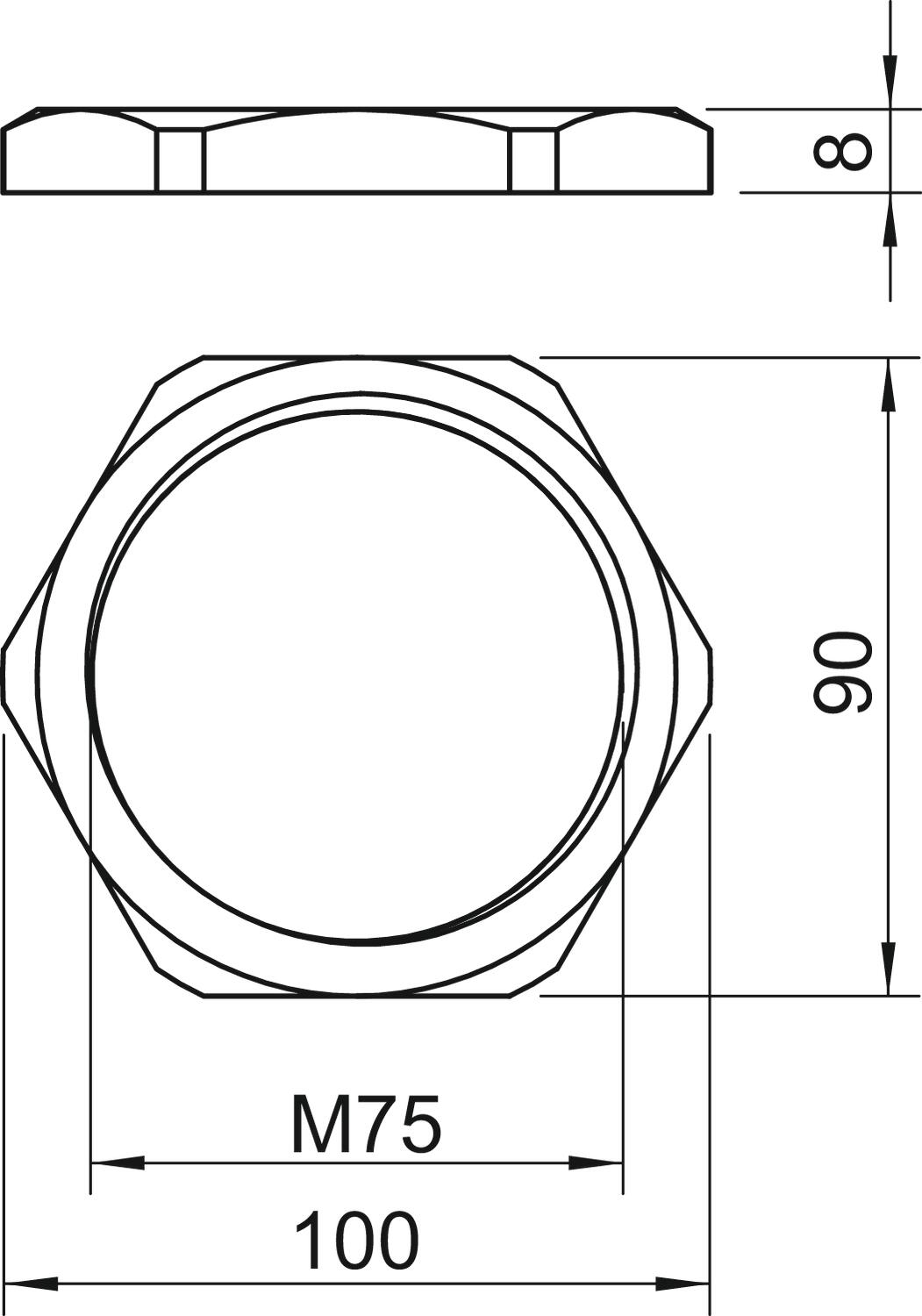

Scale drawing 169 MS M75 / 2091685, 82.57 kB, jpg

169 MS M75 / 2091685

2091685_KSTP1.stp, 39.09 kB
