LKM cable bracket, trunking width 150 mm 146 | 30
morepic-1 morepic-2 video-1

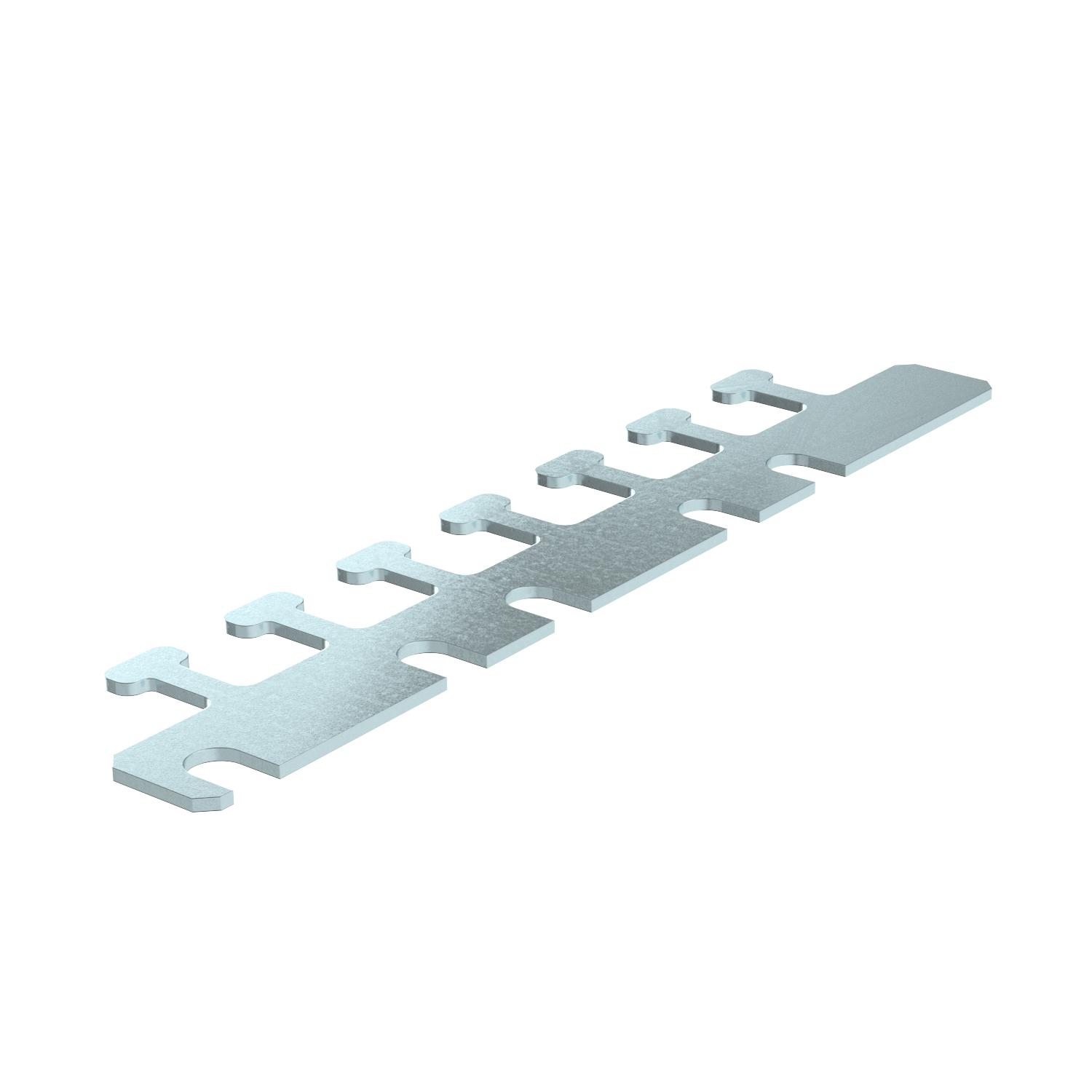

LKM cable bracket, trunking width 150 mm

Item no. 6249965 | EAN 4012196315611

30 mm
Product description

Product description

Cable bracket to fix cables in vertical routing.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Dimension 150mm
Fastening type Screw-on
for duct dimension 60 x 150 mm
Halogen-free yes
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized
With equipotential bonding no

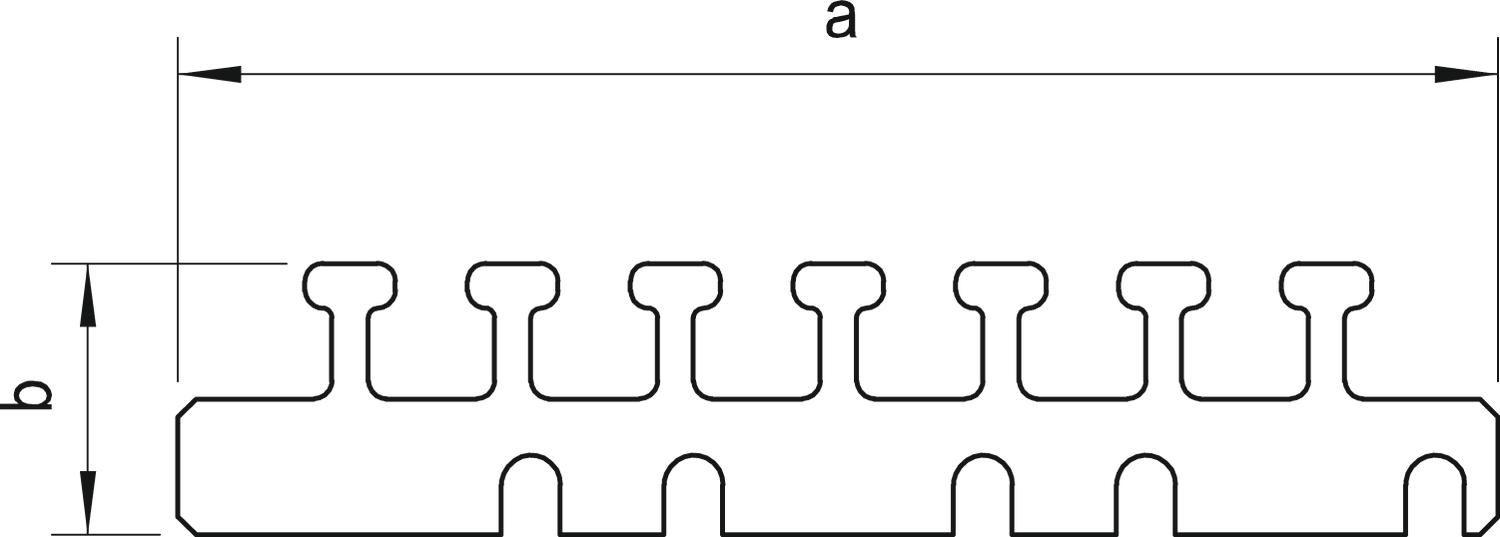

Dimensions

Dimension a 146 mm
Dimension b 30 mm
Height 30 mm
Width 146 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKM Z60 46 mm 30 mm 6249906
10 piece
LKM Z100 96 mm 30 mm 6249922
10 piece
LKM Z150 146 mm 30 mm 6249965
10 piece
LKM Z200 166 mm 30 mm 6249981
10 piece
