LKM cable bracket, duct width 200 mm 166 | 30
morepic-1 morepic-2 video-1

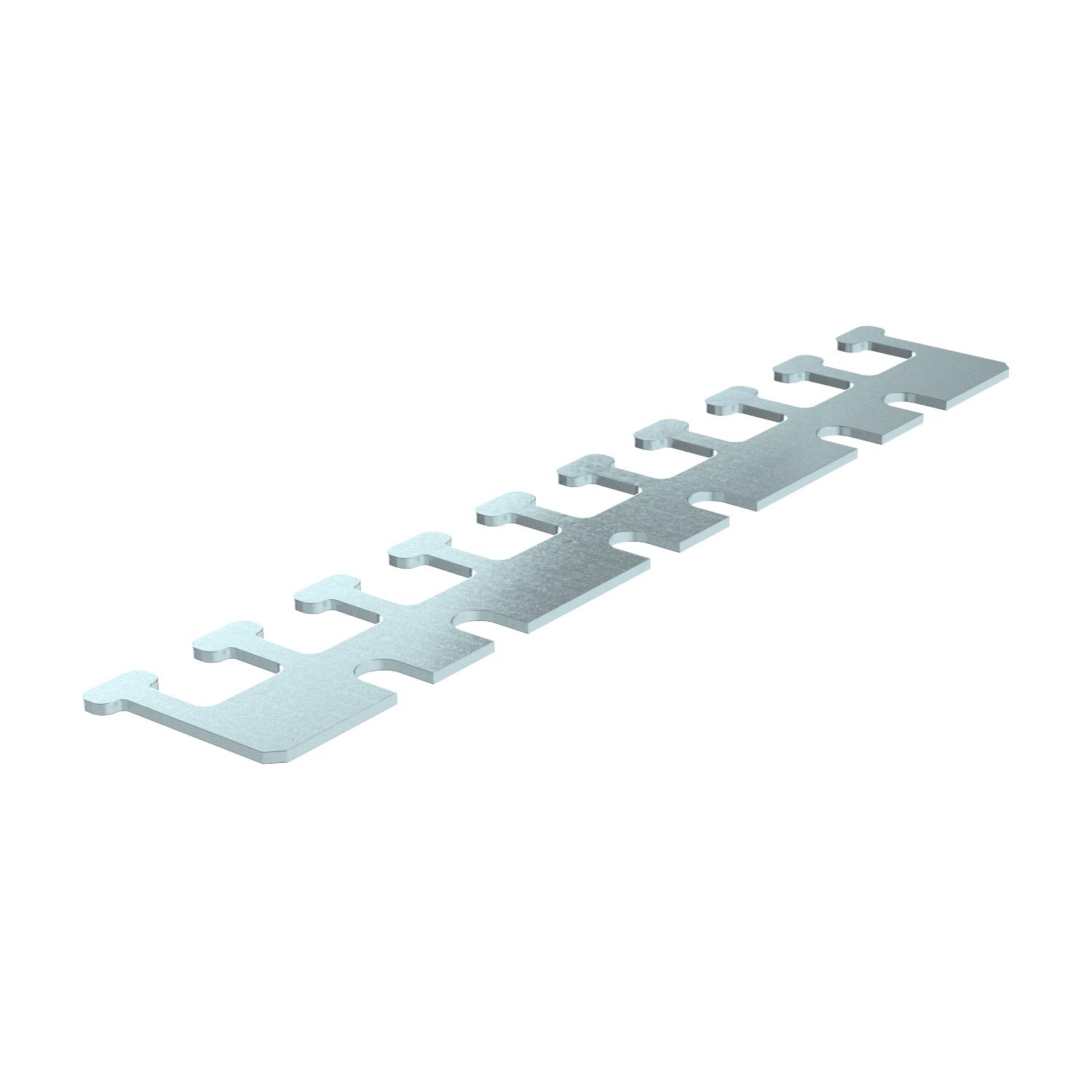

LKM cable bracket, duct width 200 mm

Item no. 6249981 | EAN 4012196315673

30 mm
Product description

Product description

Cable bracket to fix cables in vertical routing.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Dimension 200mm

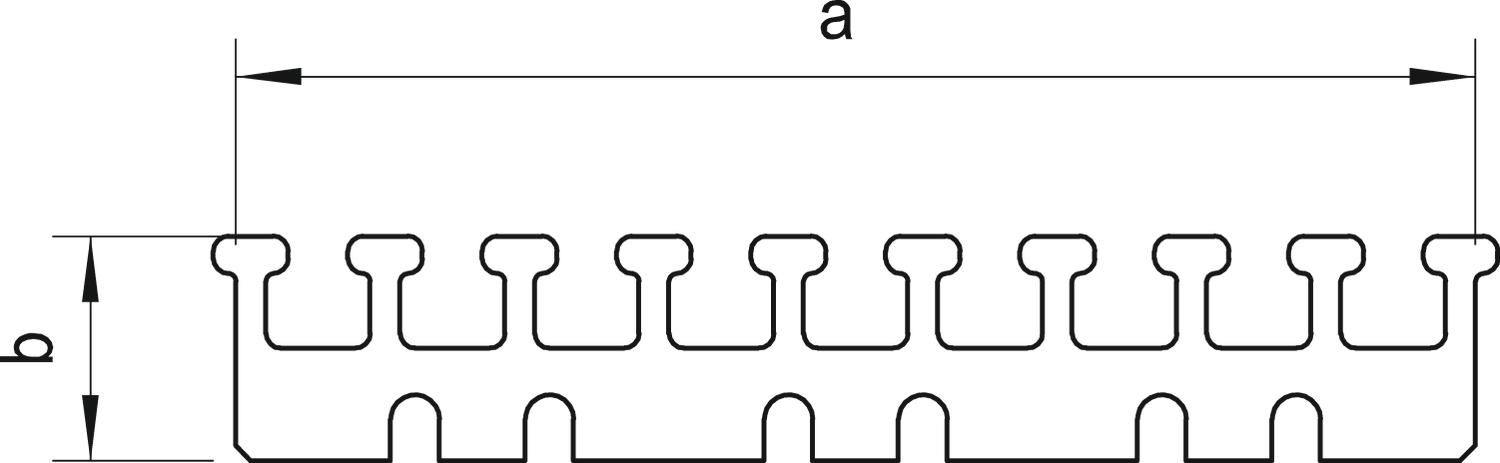

Dimension a 166 mm
Dimension b 30 mm
Fastening type Screw-on
for duct dimension 60 x 200 mm
Halogen-free yes
Height 30 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized
Width 166 mm
With equipotential bonding no
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKM Z60 46 mm 30 mm 6249906
10 piece
LKM Z100 96 mm 30 mm 6249922
10 piece
LKM Z150 146 mm 30 mm 6249965
10 piece
LKM Z200 166 mm 30 mm 6249981
10 piece
