LKM cable bracket, duct width 100 mm 96 | 30
morepic-1 morepic-2 video-1

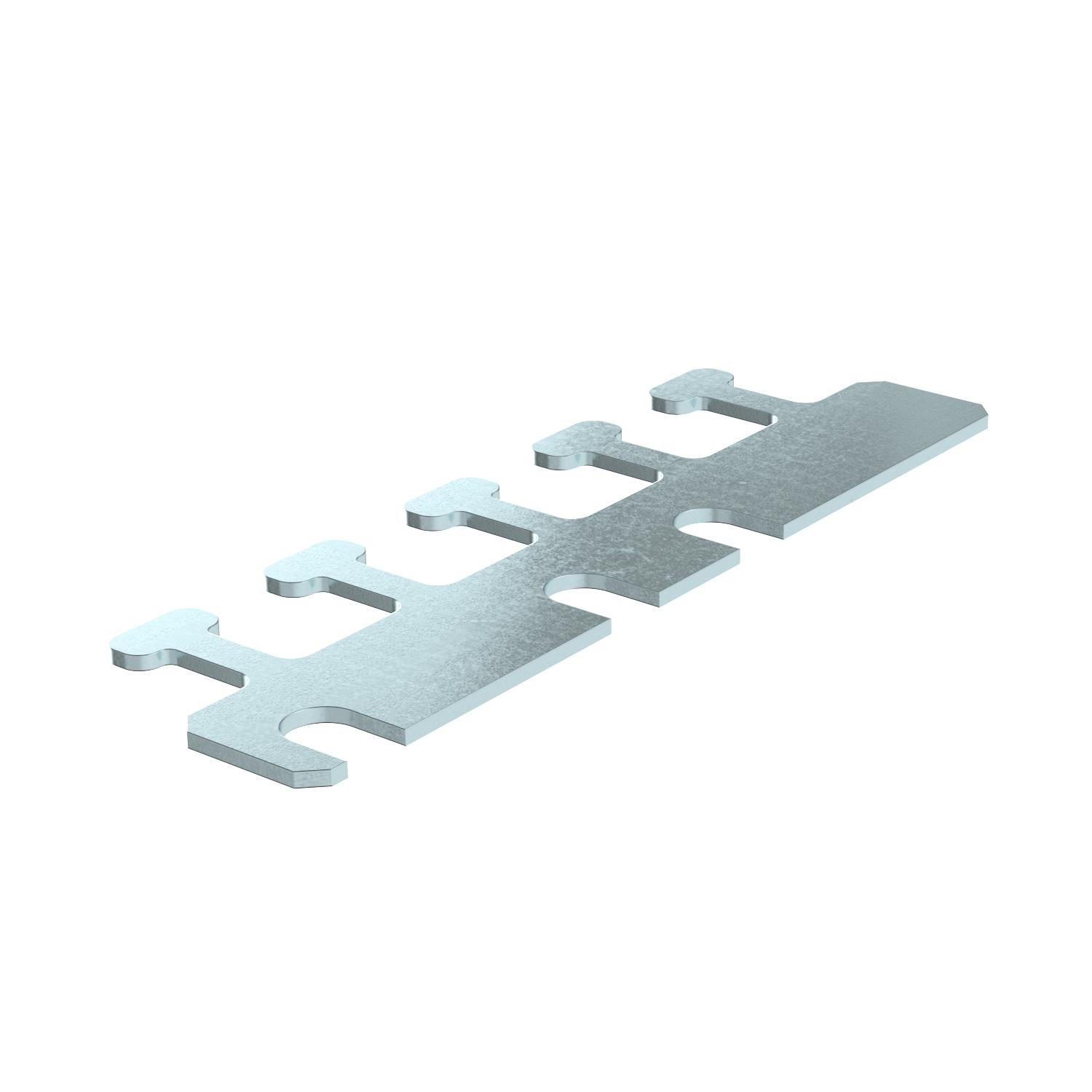

LKM cable bracket, duct width 100 mm

Item no. 6249922 | EAN 4012196315499

30 mm
Product description

Product description

Cable bracket to fix cables in vertical routing.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Dimension 100mm

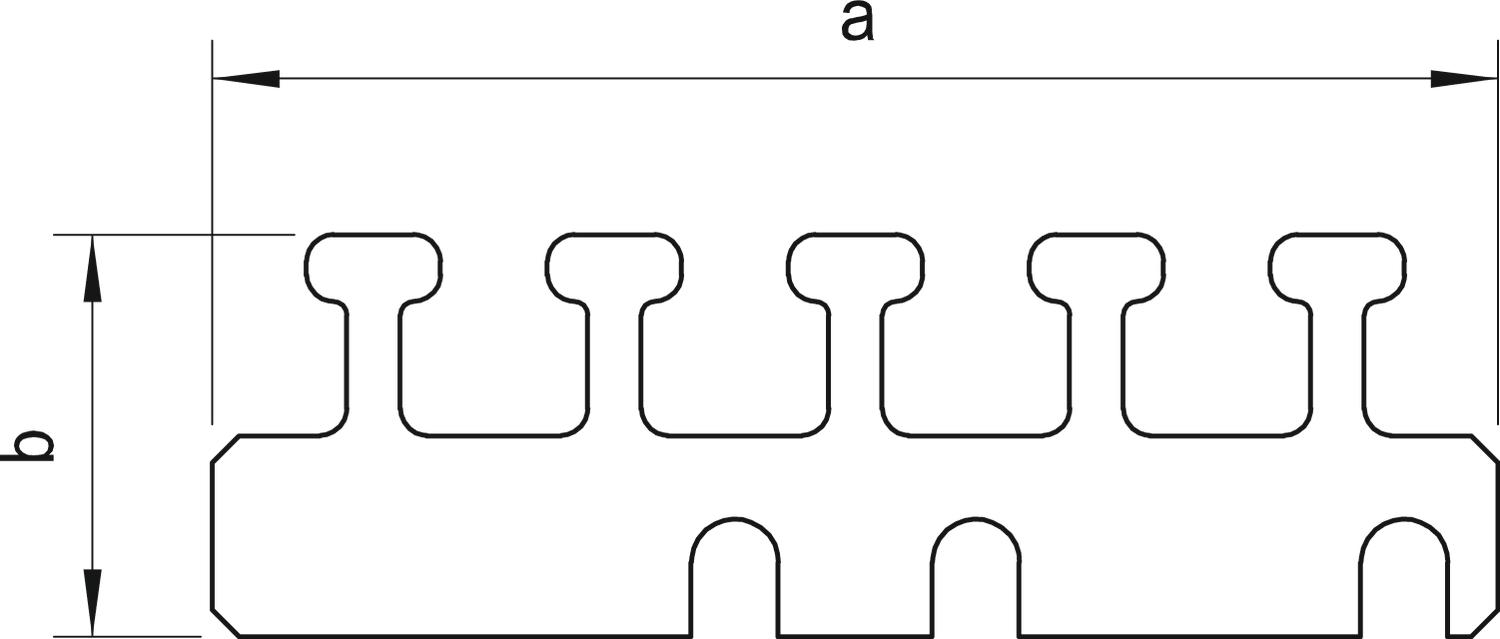

Dimension a 96 mm
Dimension b 30 mm
Fastening type Screw-on
for duct dimension 60 x 100 mm
Halogen-free yes
Height 30 mm
Maintain electrical functions yes
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface Strip galvanized
Width 96 mm
With equipotential bonding no
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKM Z60 46 mm 30 mm 6249906
10 piece
LKM Z100 96 mm 30 mm 6249922
10 piece
LKM Z150 146 mm 30 mm 6249965
10 piece
LKM Z200 166 mm 30 mm 6249981
10 piece
