Lightning ISO clip, screw-on 6 | 12 | Threaded connection

Lightning ISO clip, screw-on

Item no. 2158124 | EAN 4012195207139

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Fastening type	Threaded connection

Product description

Product description

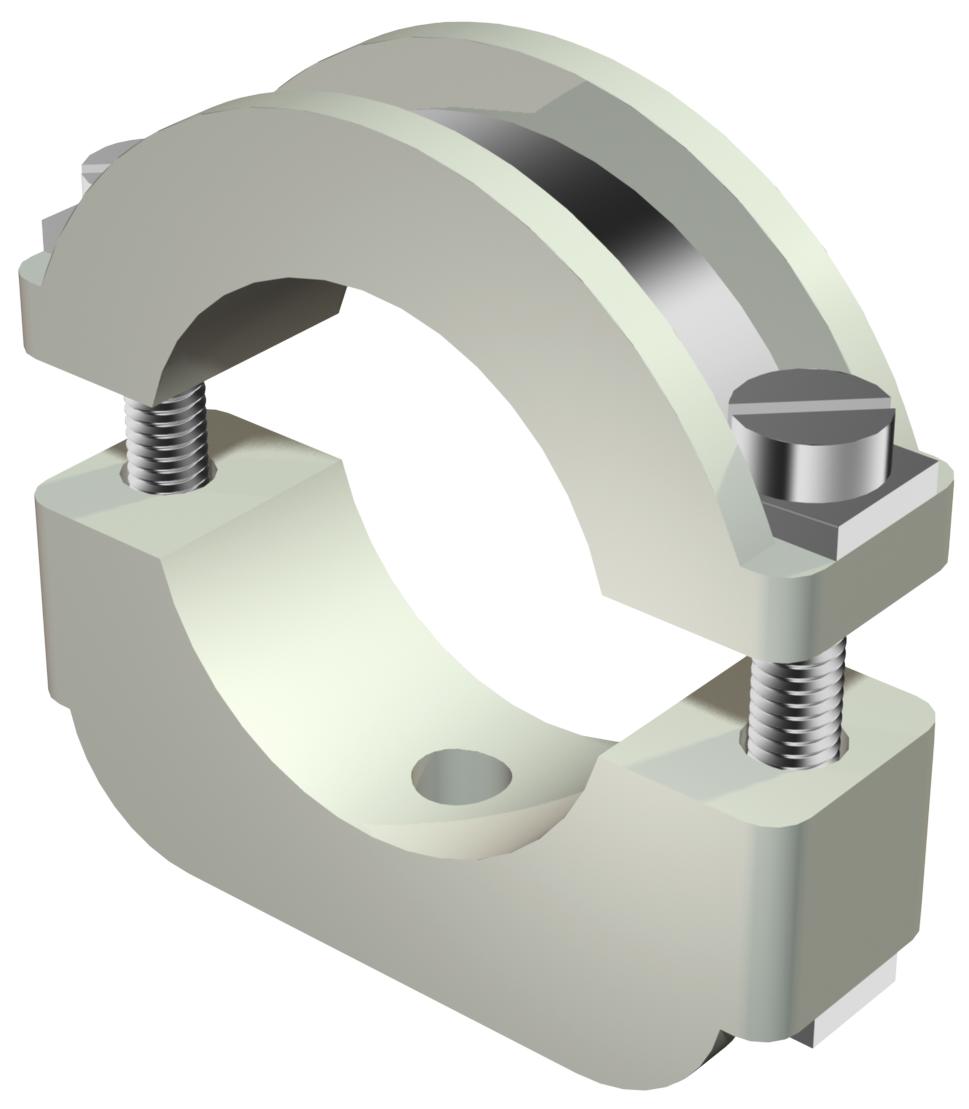

Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
Can be screwed onto M6 thread.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.

Technical data

Technical data

Bolt	M4 x 22
Clamping range D, max.	12 mm
Clamping range D, min.	6 mm
Colour	Light grey; RAL 7035

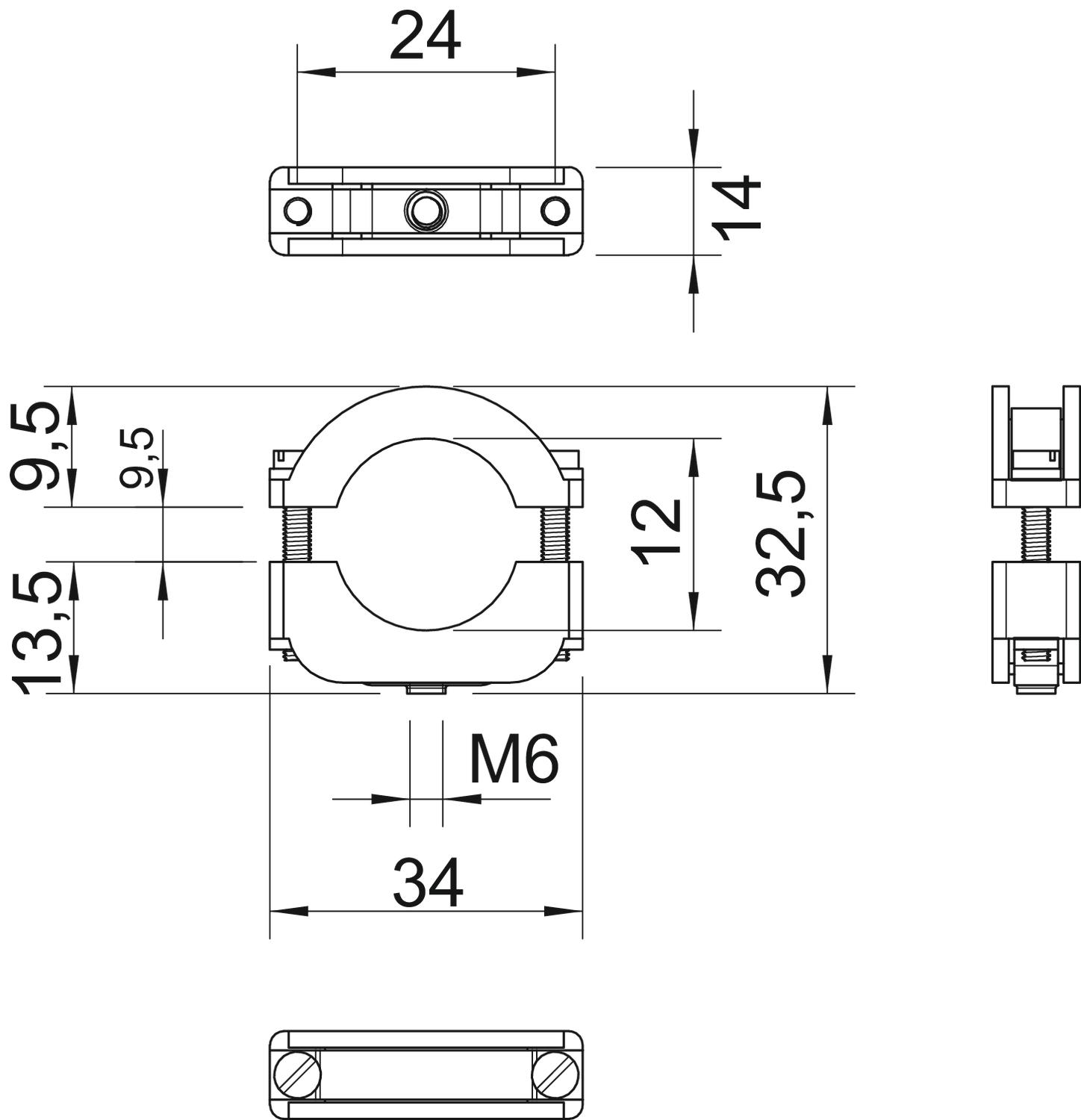

Dimension	6-12mm
Dimension A	34 mm
Dimension B	24 mm
Dimension b	14 mm
Dimension D	12 mm
Dimension H	32,5 mm
Dimension Ho (mm)	9,5

Dimension Hu (mm)	13,5
Dimension l	22 mm
Dimension x	6 mm
Fastening type	Threaded connection
Halogen-free	yes
Material	Polystyrene
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
Version for	Closed

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Fastening type	Item no.	Quantity	SSU
3019 M6 LGR	6 mm	12 mm	Threaded connection	2158124	piece	50 piece
3020 LGR	10 mm	17 mm	Threaded connection	2158175	piece	50 piece
3021 LGR	17 mm	24 mm	Threaded connection	2158248	piece	25 piece
3022 LGR	24 mm	34 mm	Threaded connection	2158345	piece	25 piece
