Lightning ISO clip

Item no. 2157128 | EAN 4012195206897

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Fastening type	Screw hole

Product description

Product description

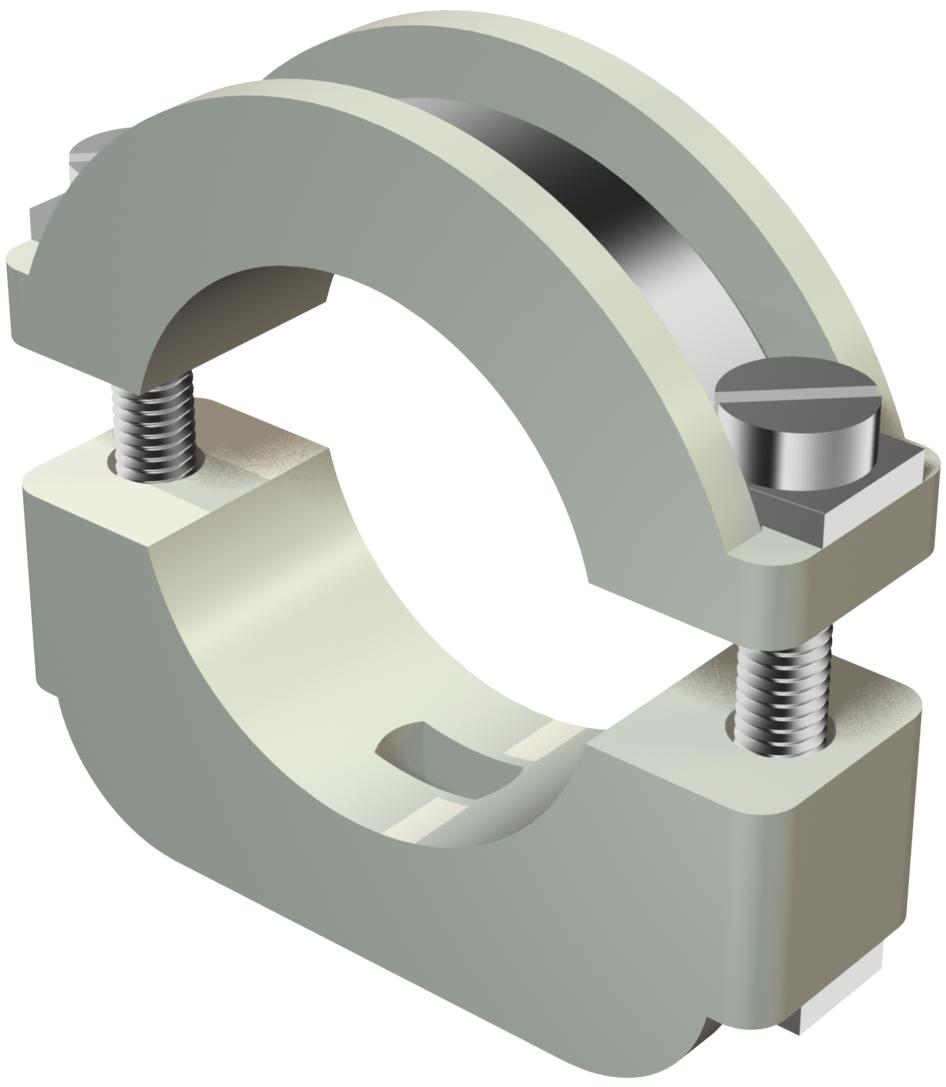

Lightning ISO clips: plastic clip with metal insert, therefore also suitable for heavy-duty applications; metal parts made of electrogalvanised steel.
3015 with 4.5 mm slot.
*Sizes 6–12 and 10–17 not suitable for bolt-firing device.

Technical data

Technical data

Bolt	M4 x 22
Clamping range D, max.	12 mm
Clamping range D, min.	6 mm
Colour	Light grey; RAL 7035
Dimension	6-12mm

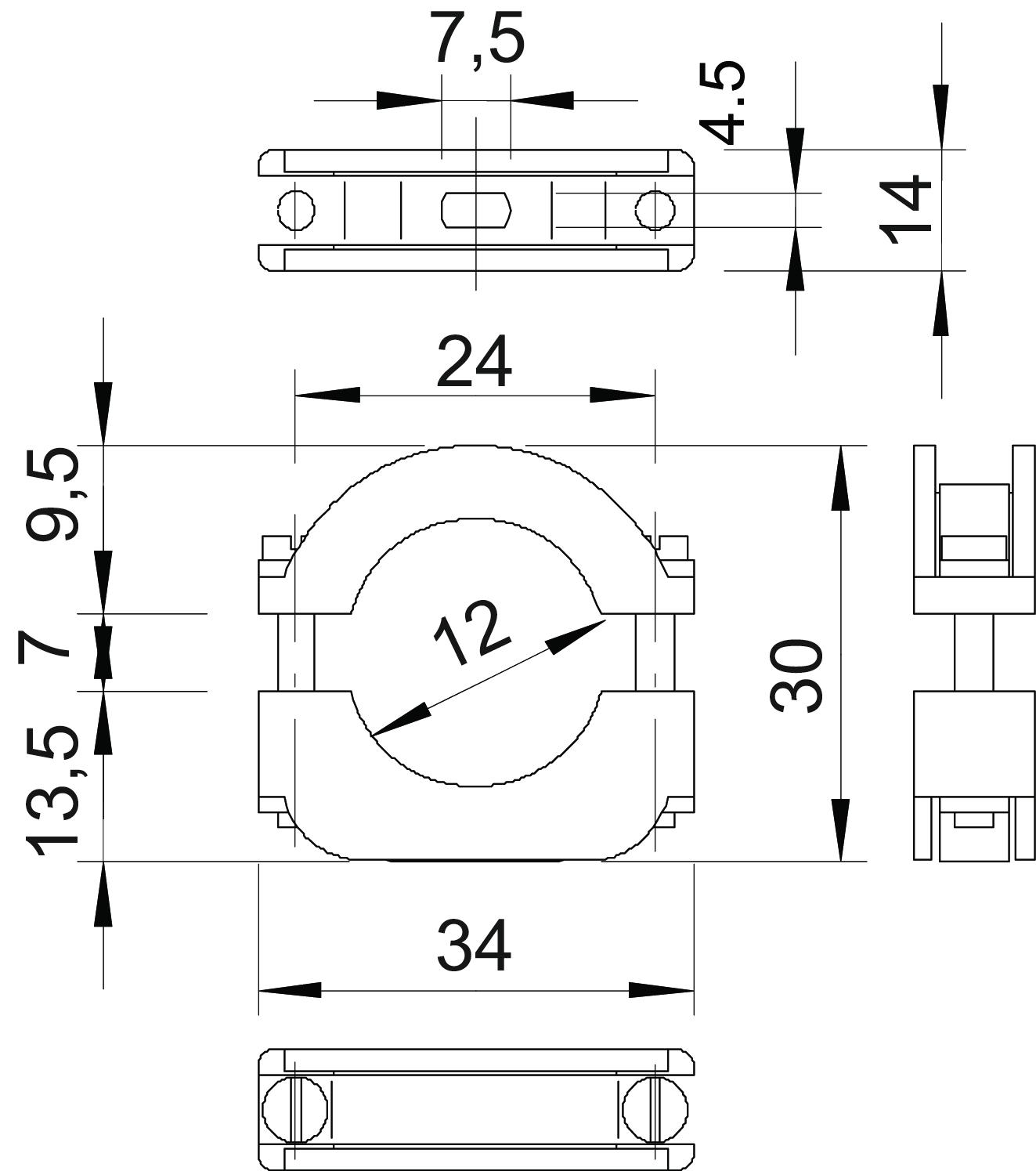

Dimension A	34 mm
Dimension b	14 mm
Dimension B	24 mm
Dimension D	12 mm
Dimension H	30 mm
Dimension Ho (mm)	9,5

Dimension Hu (mm)	13,5
Dimension L	7,5 mm
Dimension x	7 mm
Fastening type	Screw hole
Halogen-free	yes
Material	Polystyrene
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
Version for	Closed

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Fastening type	Item no.	Quantity	SSU
3015 12 LGR	6 mm	12 mm	Screw hole	2157128	piece	50 piece
3015 17 LGR	10 mm	17 mm	Screw hole	2157179	piece	50 piece
3015 24 LGR	17 mm	24 mm	Screw hole	2157241	piece	50 piece
3015 34 LGR	24 mm	34 mm	Screw hole	2157349	piece	25 piece
