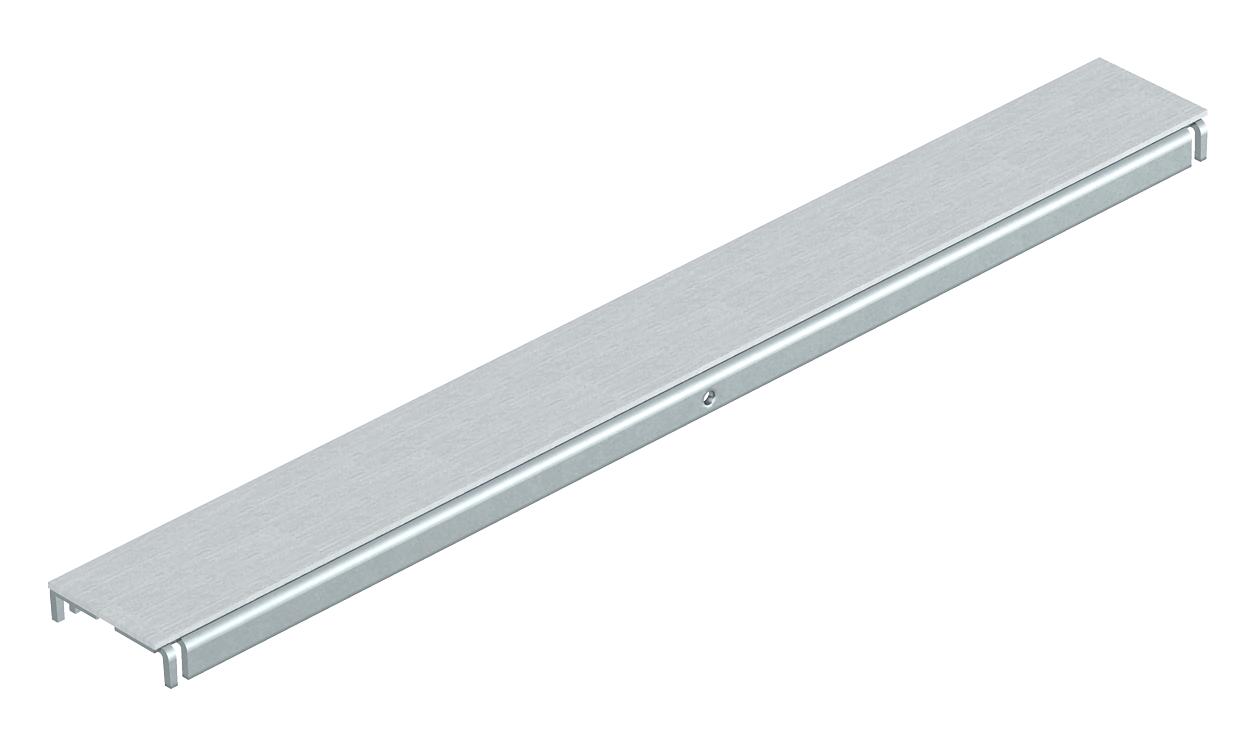

Lid butt support for trunking width 400, 500 and 600 mm

Item no. / Types

Width

Dimension A

Product description

Product description

To support and seal the joints for nominal trunking widths of 400, 500 or 600. With installation option for a centrally arranged levelling unit.

Technical data

All types

All types

Types	Width	Dimension A	Item no.	Quantity	SSU
DSU2 400	400 mm	400 mm	7424360	piece	1 piece
DSU2 500	500 mm	500 mm	7424362	piece	1 piece
DSU2 600	600 mm	600 mm	7424364	piece	1 piece

Downloads

Data sheet DSU2 400 / 7424360 , 0.11MB , pdf

Declaration of conformity DSU2 400 / 7424360 , 0.13MB , pdf
