LG 60 cable ladder, 6 m VSF 6000 | 200 | 1.5 | yes | Steel | Strip galvanized

LG 60 cable ladder, 6 m VSF

Item no. 6207501 | EAN 4012195299639

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	yes

Material	Steel

Surface

Product description

Product description

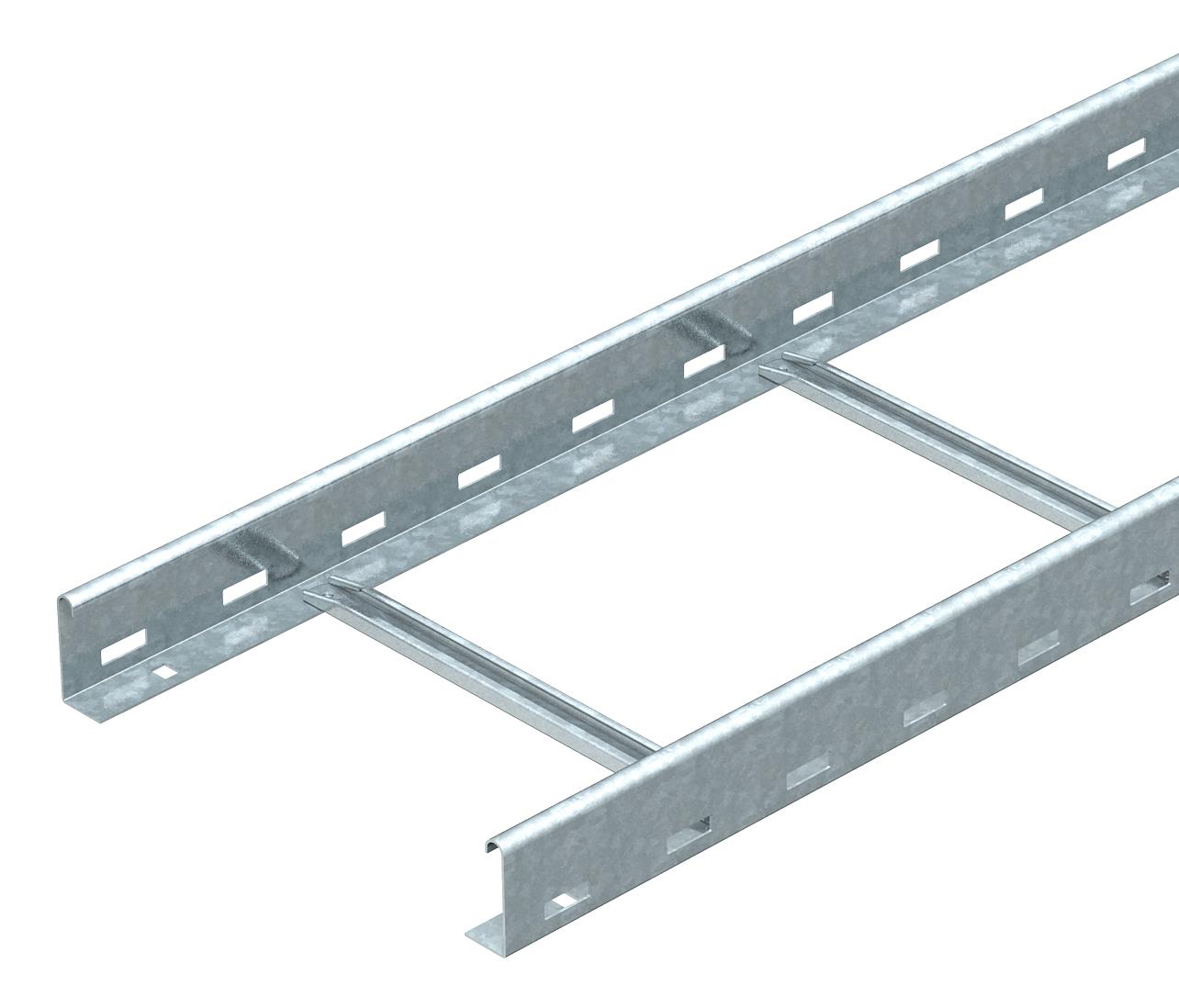

Cable ladder for the horizontal routing of cables. Can be used as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical function classes E30 to E90. With riveted C profile rung, open in an upward direction.

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate	7,838 kg CO₂e / 1 Meter

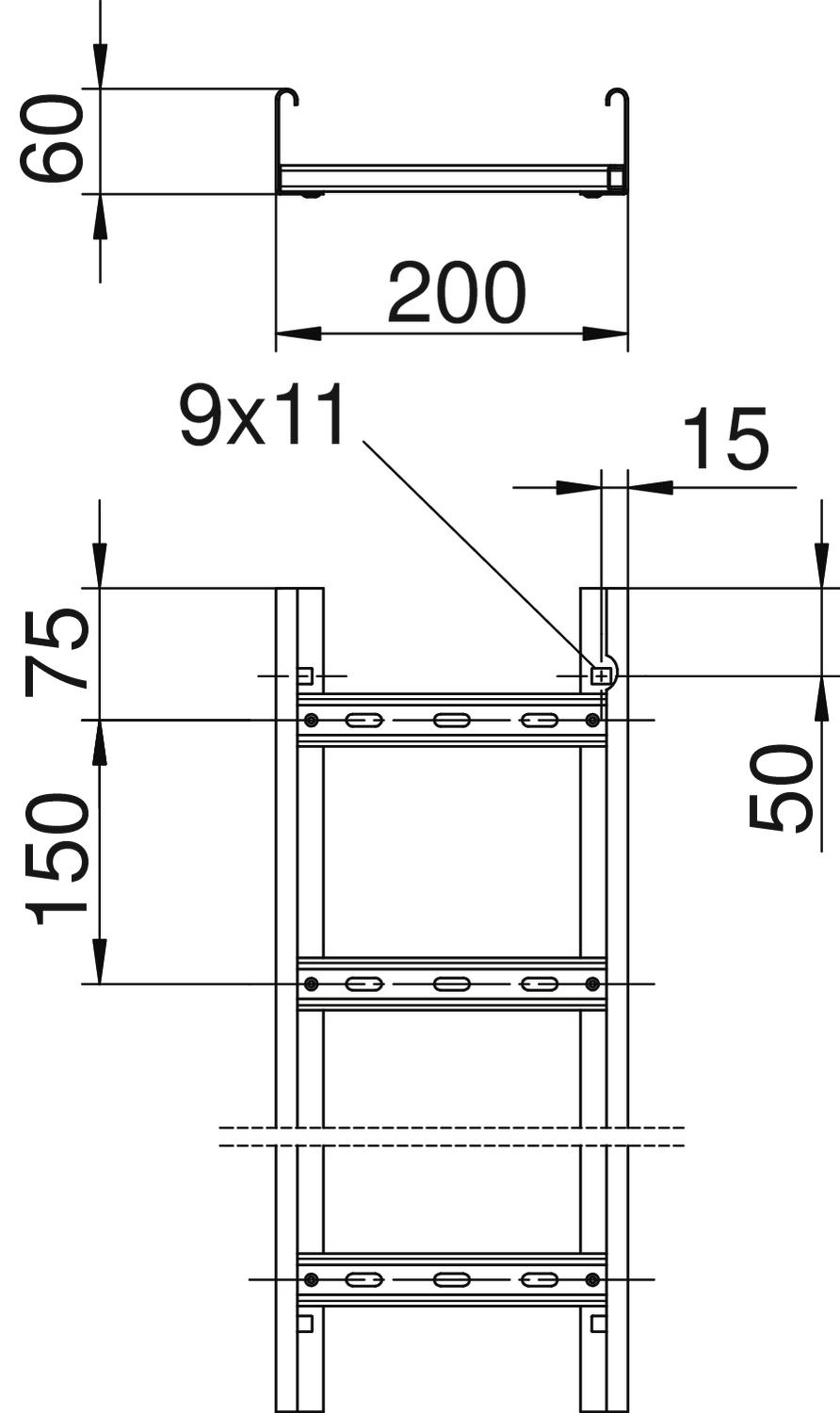

Dimension	60x200x6000
Dimension B	200 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	6000 mm
Length	6000 ft
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm

Rung distance	150 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Profile (open)
Surface	Strip galvanized
Usable cross-section	9800 mm²
Usable cross-section	98 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	200 mm

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 VSF 6 FS	6000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6207501	m	6 m
LG 630 VSF 6 FS	6000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6207505	m	6 m
LG 640 VSF 6 FS	6000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6207509	m	6 m
LG 620 VSF 6 FT	6000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207523	m	6 m
LG 630 VSF 6 FT	6000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207527	m	6 m
LG 640 VSF 6 FT	6000 mm	400 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207531	m	6 m
