LG 60 cable ladder, 6 m VSF
Item no. 6207523 | EAN 4012195299691
- Product description
-
Product descriptionCable ladder for the horizontal routing of cables. Can be used as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical function classes E30 to E90. With riveted C profile rung, open in an upward direction.
-
- Technical data
-
Technical data

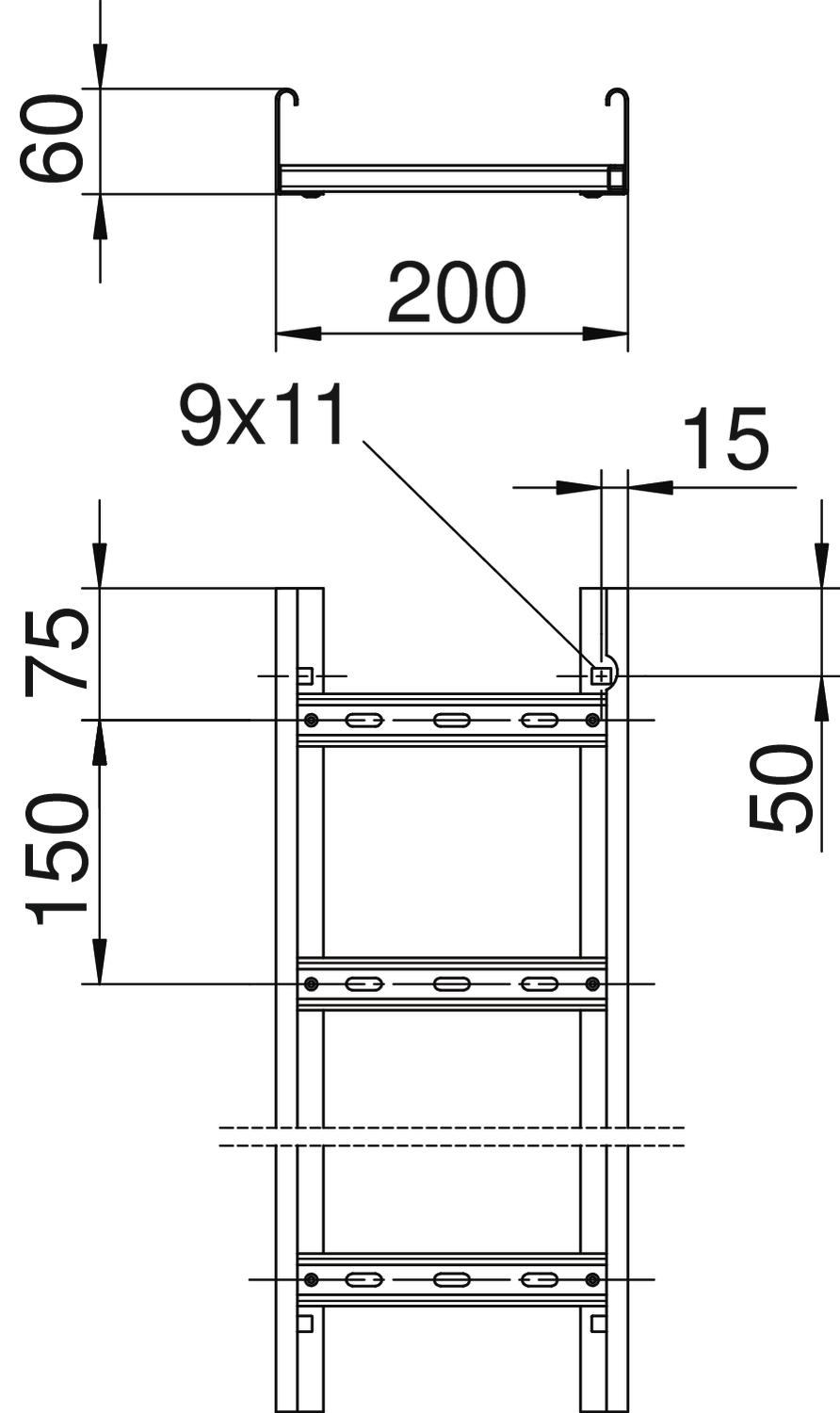

CO₂ Footprint (GWP) Cradle-to-Gate 7,485 kg CO₂e / 1 Meter Dimension 60x200x6000 Dimension B 200 mm Fastening of rung Blind riveted Fire protection Maintenance of electrical function of standard support structure Height 60 mm Length 6000 mm Length 6000 ft Maintain electrical functions yes Material Steel Rail thickness 1,5 mm Rung distance 150 mm Rung slot dimension 17,00 Rustproof steel, pickled no Side perforation yes Side rail version Profile (open) Surface Hot-dip galvanised Usable cross-section 9800 mm² Usable cross-section 98 cm² Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Protective cap 60
SKH 60 OR 6222537 40 Pair
Identification plate for maintenance of electrical function
KS-E DE 7205423 10 piece Mounting accessories
Products Types Item no. Quantity SSU
Drop-out plate FT
LAB 20 FT 6220436 1 piece - Downloads
-
Data sheet LG 620 VSF 6 FT / 6207523 , 0.24MB , pdfBrochure Brochure The Experts , 2.10MB , pdfEU declaration of conformity LG 620 VSF 6 FT / 6207523 , 0.11MB , pdfNo invitation to tender text is available for this product.
