LG 60 cable ladder, 3 m NS FS 3000 | 200 | 1.5 | no | Steel | Strip galvanized

LG 60 cable ladder, 3 m NS FS

Item no. 6208506 | EAN 4012195063957

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

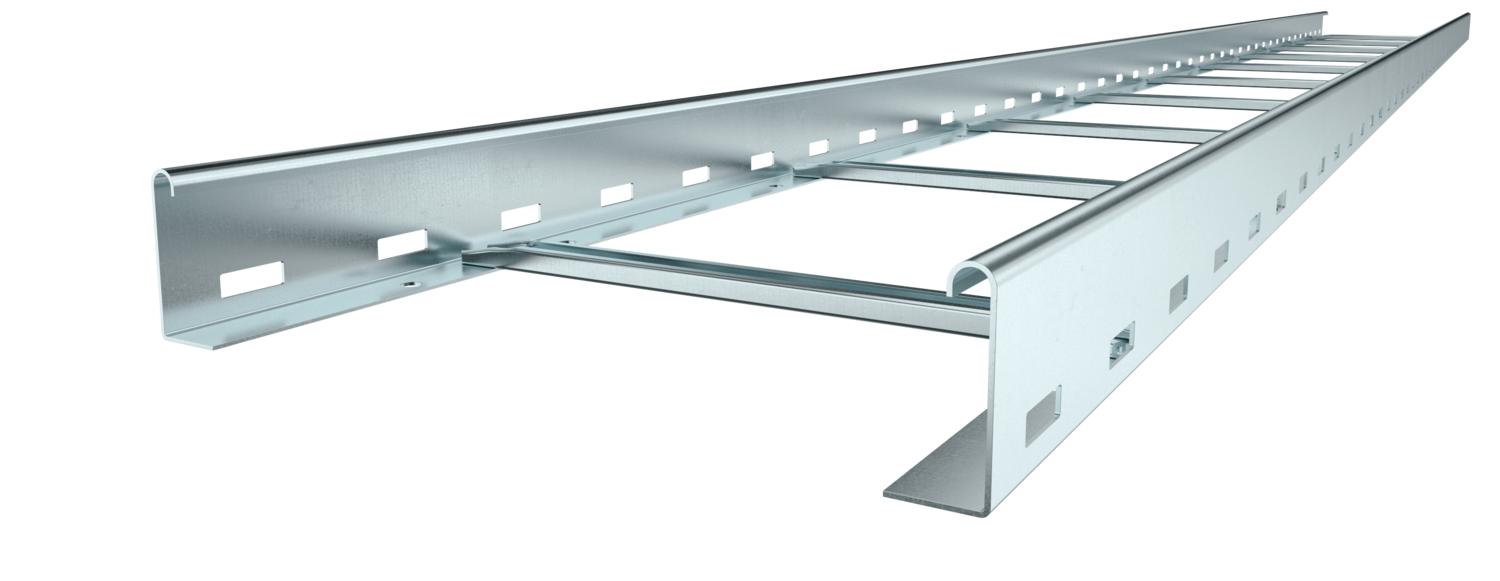

Cable ladder with perforated side rail of side height 60 mm with riveted C profile rungs, open in an upwards direction (NS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

Dimension	60x200x3000
Dimension	60x200x3000
Fastening of rung	Blind riveted
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rustproof steel, pickled	no

Side perforation	yes
Side rail version	Flat profile
Surface	Strip galvanized
Usable cross-section	9800 mm²
Usable cross-section	98 cm²
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Height	60 mm
Length	3000 ft

Length	3000 mm
Width	200 mm

Loads

Support spacing 1.5 m	3,1 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1,5 kN/m

Support spacing 3.0 m	1 kN/m
Support spacing 3.5 m	0,6 kN/m
Support spacing 4.0 m	0,4 kN/m

Technical data

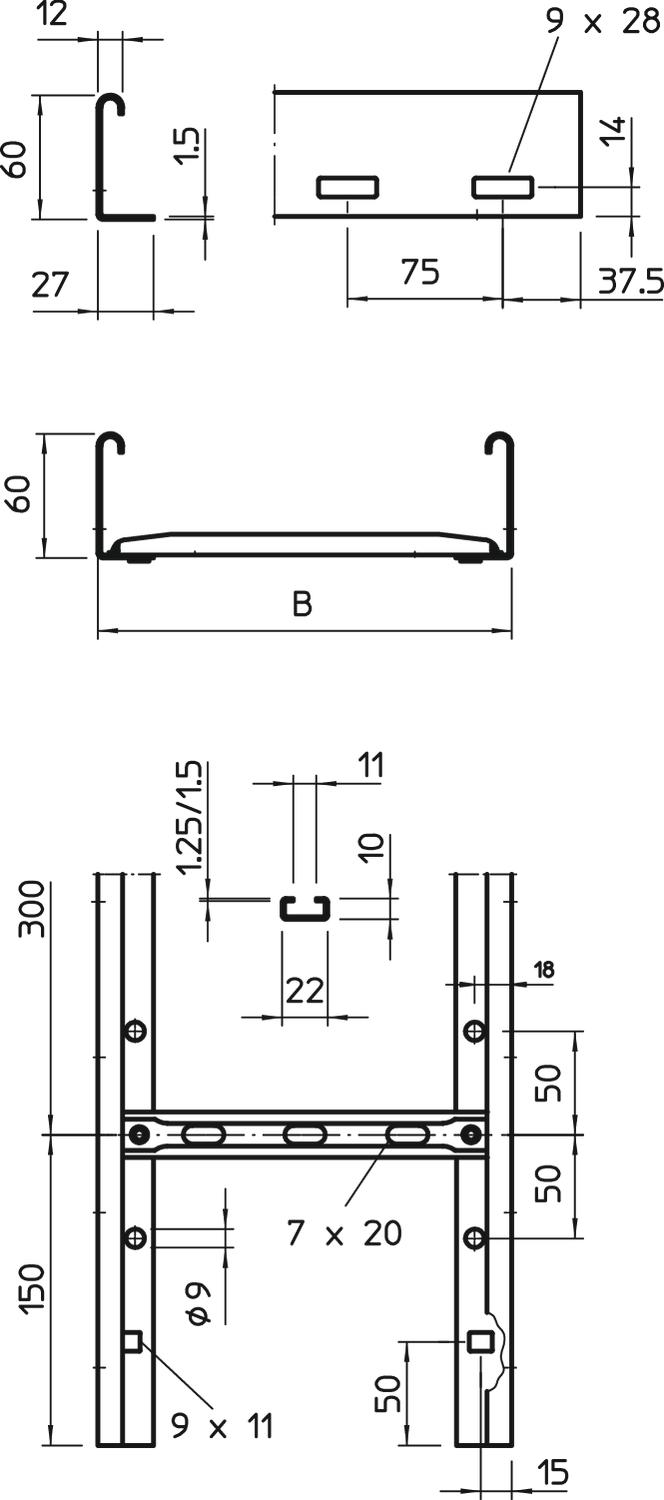

Load diagram, cable ladder, type LG 60 NS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
LG 620 NS 3 FS	3000 mm	200 mm	1.5 mm	no	Steel	Strip galvanized	6208506	m	3 m
LG 630 NS 3 FS	3000 mm	300 mm	1.5 mm	no	Steel	Strip galvanized	6208509	m	3 m
LG 640 NS 3 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6208512	m	3 m
LG 650 NS 3 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6208515	m	3 m
LG 660 NS 3 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6208518	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Cover with turn buckle FS	DRL 200 FS	6052207	m	3 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Clamping piece for separating retainer fastening A2	KS KL A2	6062284	piece	30 piece
Straight connector FS	LVG 60 FS	6208840	piece	10 piece
Protective cap 60	SKH 60 OR	6222537	Pair	40 Pair

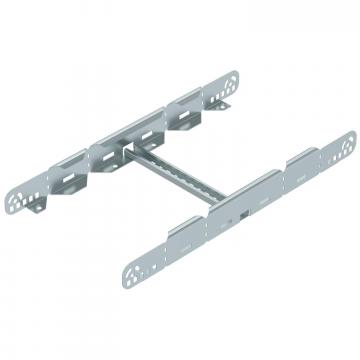

Multifunctional connector FS	LMFV 630 FS	6225712	piece	1 piece
