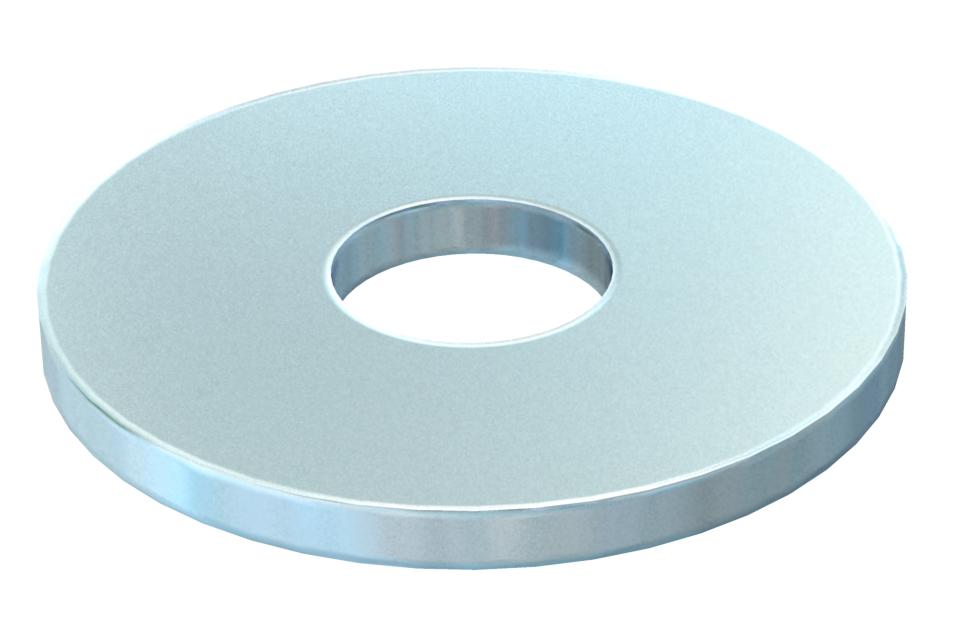

Large washer F 22 | 22 | 6.6 | 2 | M6

morepic-1

morepic-2

Large washer F

Item no. 6408702 | EAN 4012196479955

Item no. / Types

Dimension d min.

Dimension d max.

Dimension d

Dimension h

Thread

Product description

Product description

Washer of particularly large outer diameter.

Technical data

Technical data

Diameter	22 mm
Dimension	M6
External diameter	22 mm
Faceted	no
Hardened	no
Hole diameter	6,6 mm
Hole shape	Round

Inner diameter	6,6 mm
Material	Steel
Material thickness	2 mm
Plate thickness	0,08 in
Surface	Hot galvanized
Thread	M6

Dimensions

Dimension d	6,6 mm
Dimension d max.	22 mm

Dimension d min.	22 mm
Dimension h	2 mm

All types

All types

Types	Dimension d min.	Dimension d max.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
DIN440 7 F	22 mm	22 mm	6.6 mm	2 mm	M6	6408702	piece	100 piece
DIN440 9 F	28 mm	28 mm	9 mm	3 mm	M8	6408710	piece	100 piece
DIN440 11 F	34 mm	34 mm	11 mm	3 mm	M10	6408729	piece	100 piece
DIN440 14 F	44 mm	44 mm	13.5 mm	4 mm	M12	6408737	piece	50 piece
