KVS-3 connection set

Item no. 7215385 | EAN 4012195077886

Product description

Product description

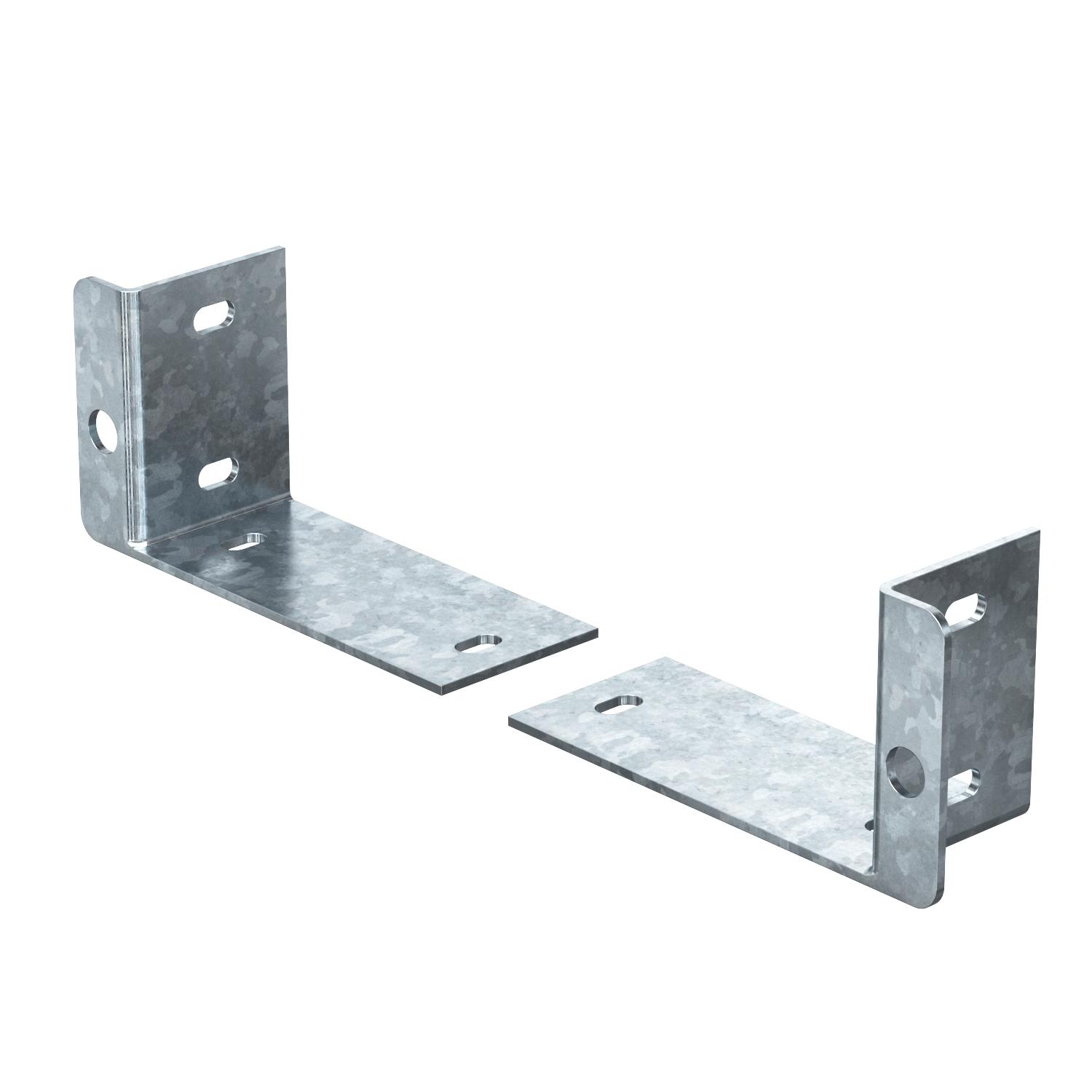

Connection set as spare part for the PYROLINE® Con S fire protection duct, type BSKH09-K0521, along with the matching fittings, consisting of one connection plate on the left and one on the right.
  • Suspended fire protection duct, ceiling mounting I90
  • Suspended fire protection duct, wall mounting I90
  • Fire resistance class I90
  • Suspended fire protection duct, ceiling mounting E30
  • Suspended fire protection duct, wall mounting E30
  • Function maintenance class E30
Technical data

Technical data

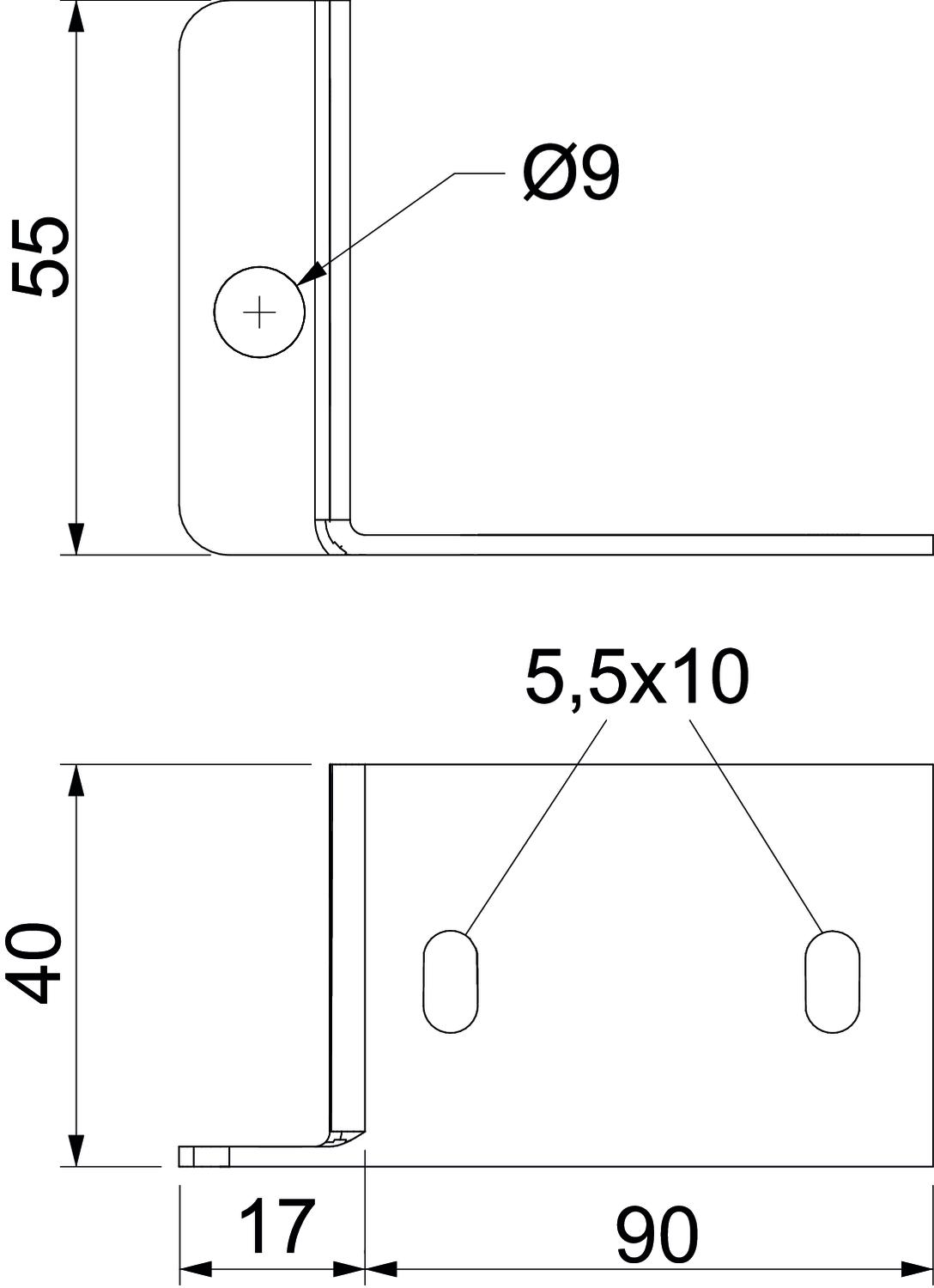

Dimension 90x55x40
Dimension B 90 mm
Dimension H 55 mm
Height 55 mm
Material Steel
Surface Strip galvanized
Type of accessory Miscellaneous
Width 90 mm
All types

All types

Types Dimension Item no. Quantity SSU

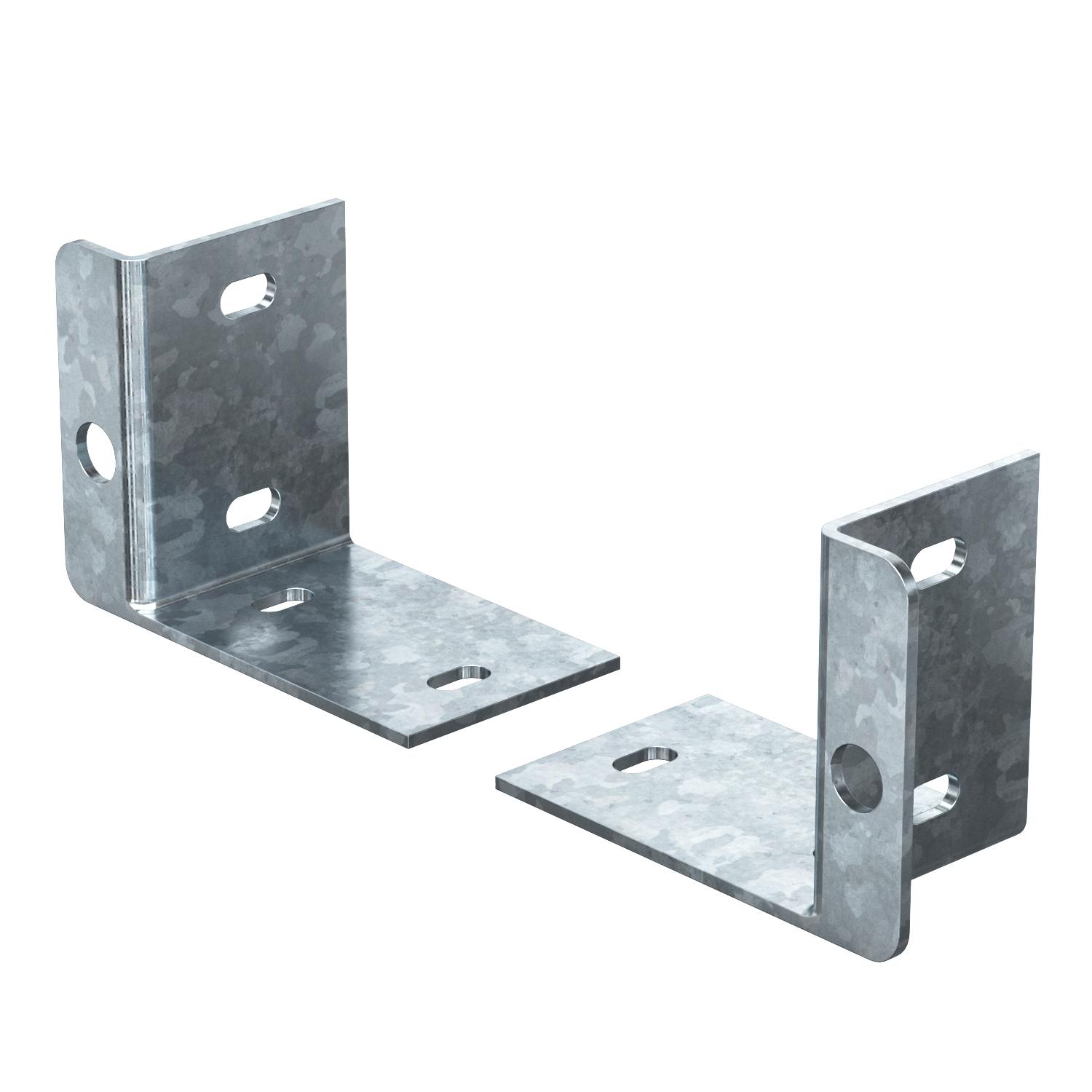

KVS-1 58x58x40 7215381
1 piece
KVS-3 90x55x40 7215385
1 piece
KVS-4 112x90x40 7215389
1 piece
Downloads

Download

Download
Download

No invitation to tender text is available for this product.
