K connector 40 | 20 | 100

morepic-1

morepic-2

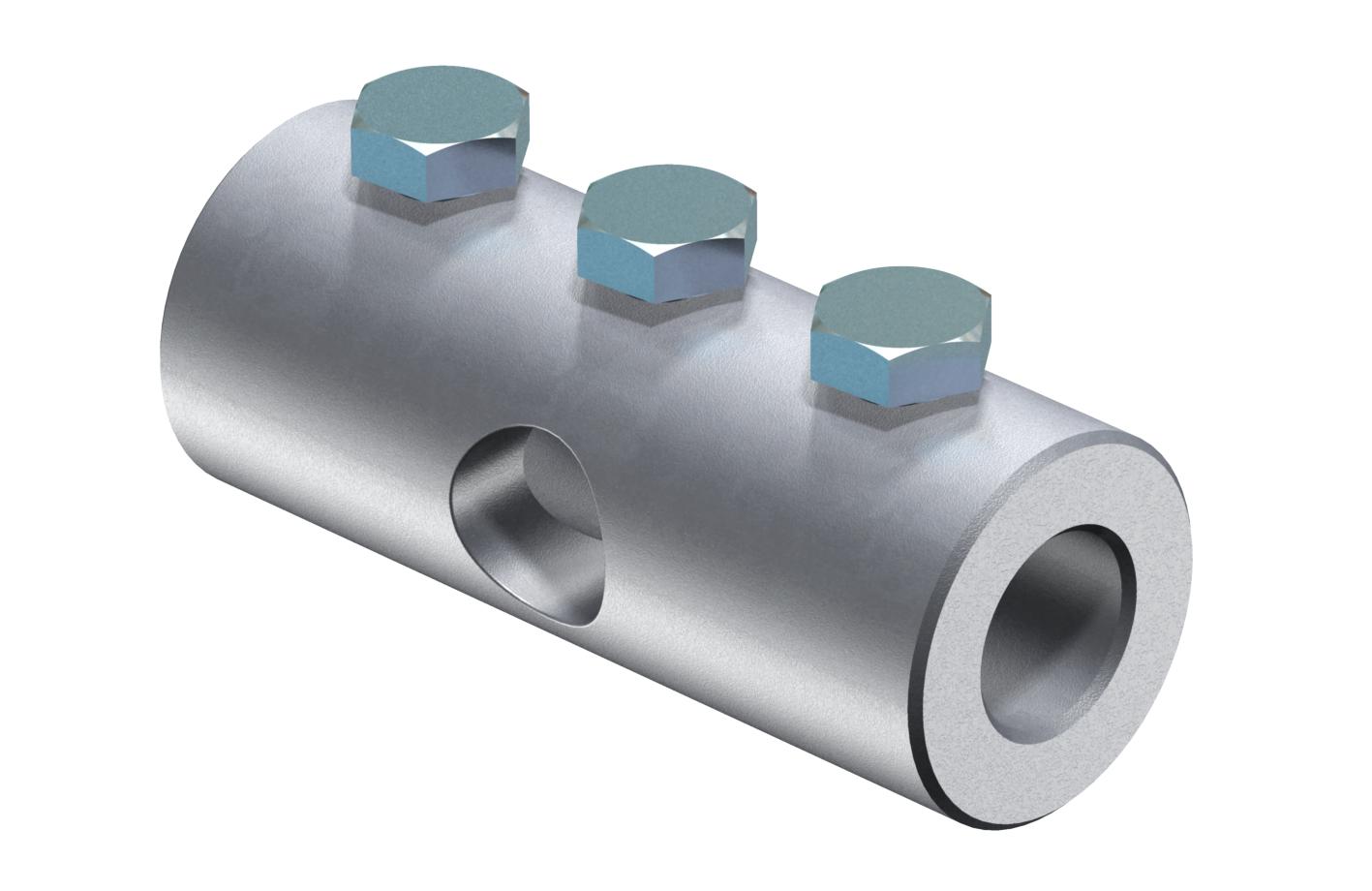

K connector

Item no. 5408296 | EAN 4012195895879

Item no. / Types

Dimension d min.

Dimension d Ø

Dimension L	100 mm

Product description

Product description

• K connector for installation of insulating rods

• With M10 bolts

Technical data

Technical data

Connection	Round conductor
Dimension	20mm
Dimension d min.	40 mm
Dimension d Ø	20 mm

Dimension L	100 mm
Length	100 mm
Material	Aluminium

All types

All types

Types	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 IK	40 mm	20 mm	100 mm	5408296	piece	10 piece
101 IK-16	30 mm	16 mm	100 mm	5408298	piece	10 piece

Downloads

Data sheet 101 IK / 5408296 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 101 IK / 5408296 , 0.06MB , pdf

Download

Product graphic 101 IK / 5408296, 64.70 kB, jpg

Scale drawing 101 IK / 5408296, 72.99 kB, jpg

101 IK / 5408296
