Adjustable connector, horizontal	no
Articulated connector, vertical	no
Colour	zinc
Connection type	Screw connector
Dimension	B600mm
Dimension B	600 mm
Height	4 mm
Length	600 mm
Maintain electrical functions	no
Material	Steel
Plate thickness	1,5 mm

Quantity of bolts	6 St.
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for cable tray system height	35 mm
Suitable for mesh cable tray	no
Surface	Strip galvanized
Version for	Joint plate
Wide-span version	yes
Width	24 in
Width	585 mm

Types	Width	Height	Dimension B	Plate thickness	Item no.	Quantity	SSU
SSLB 100 FS	85 mm	4 mm	100 mm	1.5 mm	7070205	piece	20 piece
SSLB 150 FS	135 mm	4 mm	150 mm	1.5 mm	7070209	piece	20 piece
SSLB 200 FS	185 mm	4 mm	200 mm	1.5 mm	7070213	piece	20 piece
SSLB 300 FS	285 mm	4 mm	300 mm	1.5 mm	7070217	piece	20 piece
SSLB 400 FS	385 mm	4 mm	400 mm	1.5 mm	7070221	piece	20 piece
SSLB 500 FS	485 mm	4 mm	500 mm	1.5 mm	7070225	piece	20 piece
SSLB 550 FS	535 mm	4 mm	550 mm	1.5 mm	7070229	piece	20 piece
SSLB 600 FS	585 mm	4 mm	600 mm	1.5 mm	7070233	piece	20 piece

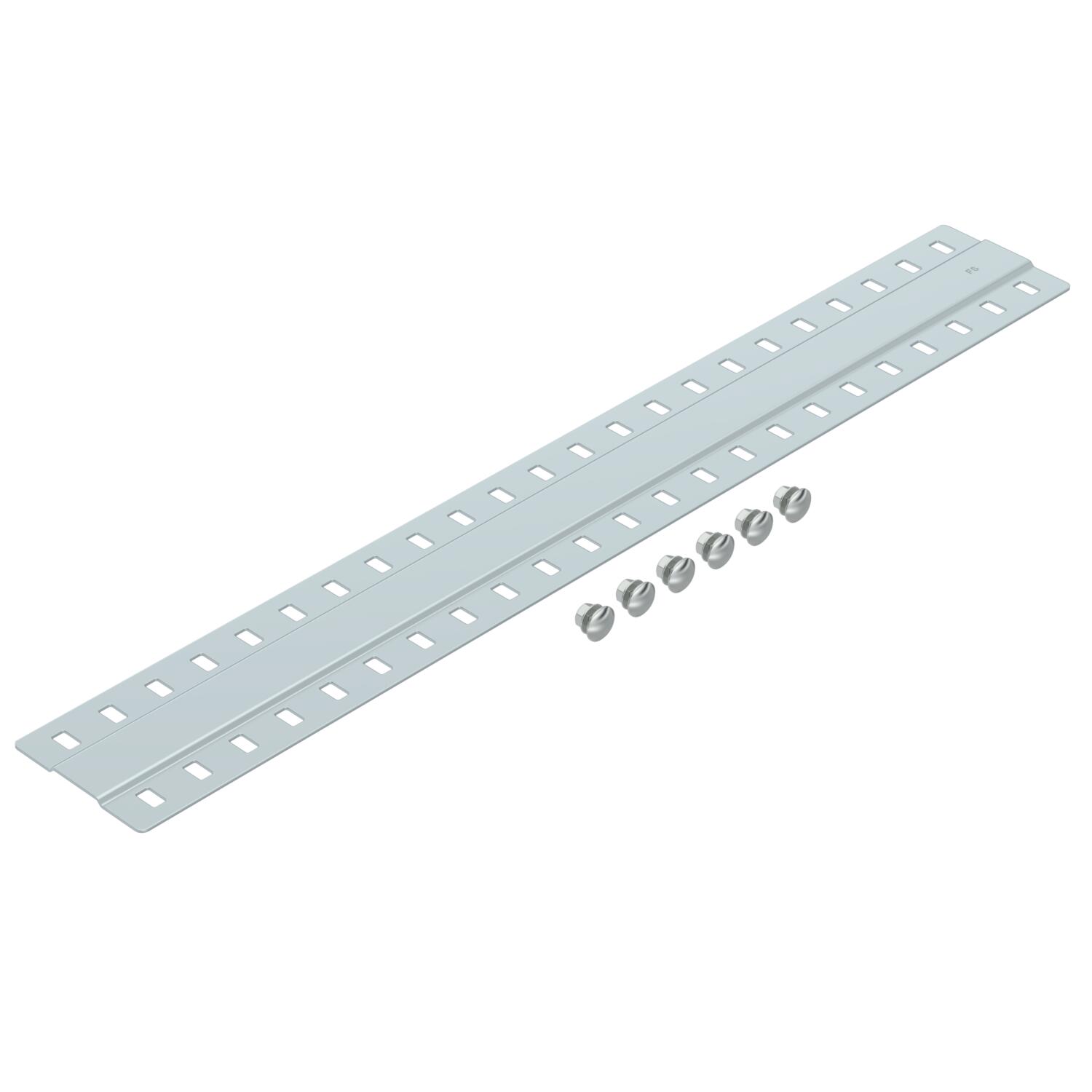

Joint plate FS

All types
