- Product description
-
Product description

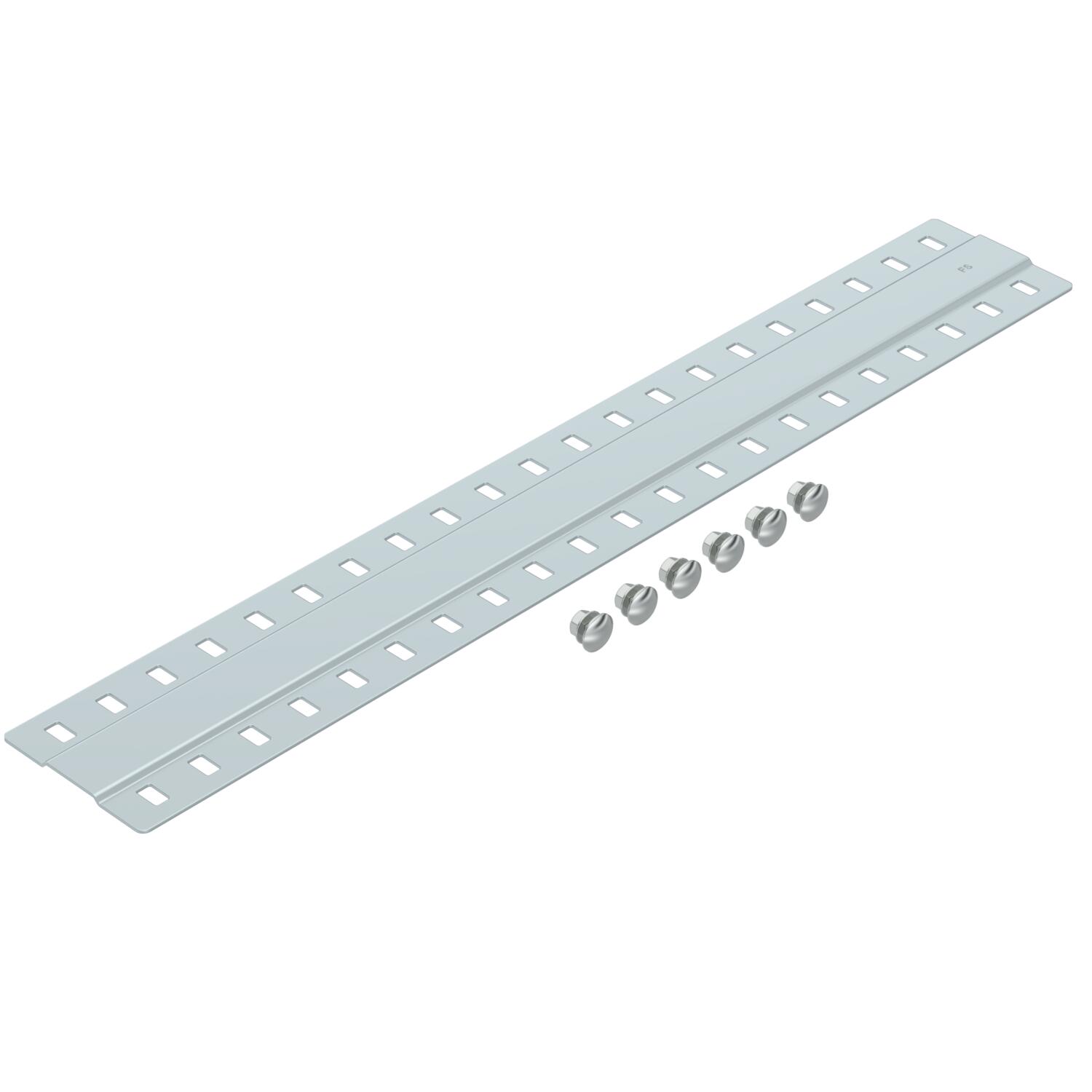

Wide joint plate for use in all cable trays and wide span cable trays.
- Technical data
-
Technical data

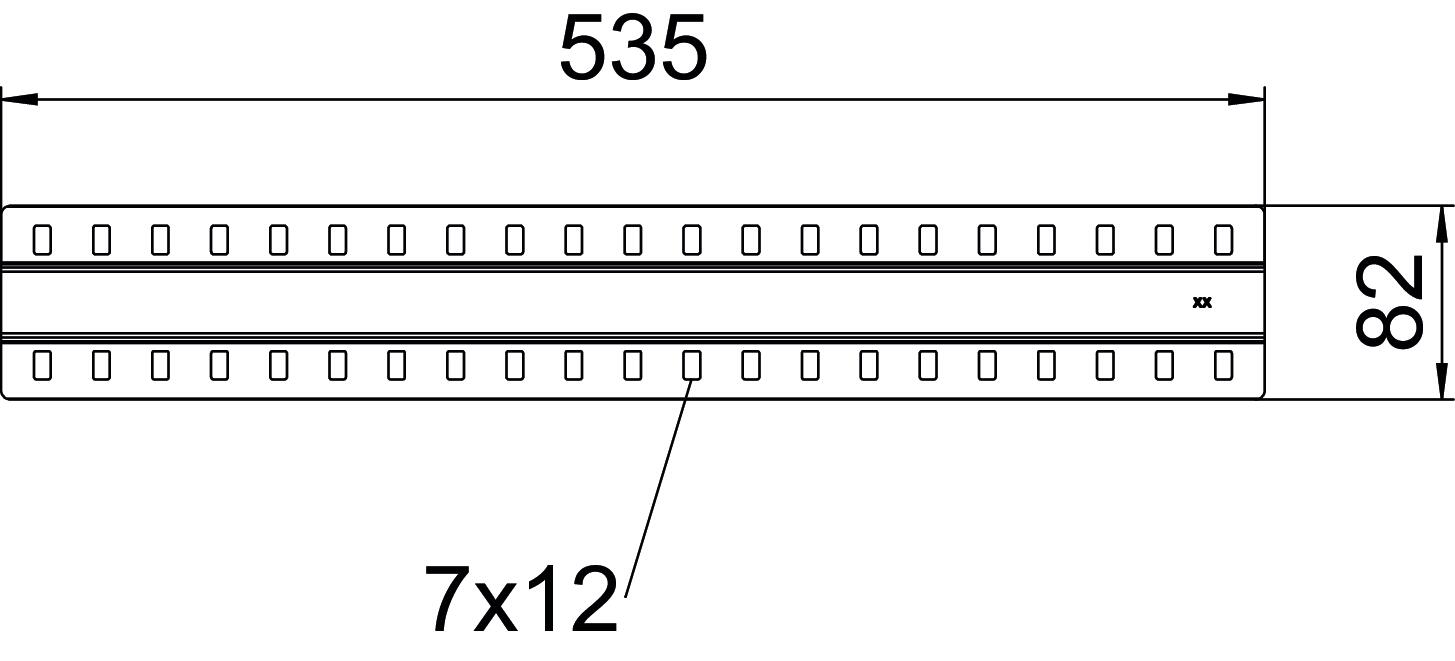

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension B550mm Dimension B 550 mm Height 4 mm Length 550 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Quantity of bolts 6 St. Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Joint plate Wide-span version yes Width 535 mm Width 22 in - All types
-
All types
- Downloads
-
Data sheet SSLB 550 FS / 7070229 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity SSLB 550 FS / 7070229 , 0.10MB , pdfUK Declaration of Conformity SSLB 550 FS / 7070229 , 0.14MB , pdfREACH Declaration of conformity SSLB 550 FS / 7070229 , 0.12MB , pdfRoHS Declaration of conformity SSLB 550 FS / 7070229 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
