Joint cover, for trunking, type WDK 40110 Pure white; RAL 9010
morepic-1 morepic-2

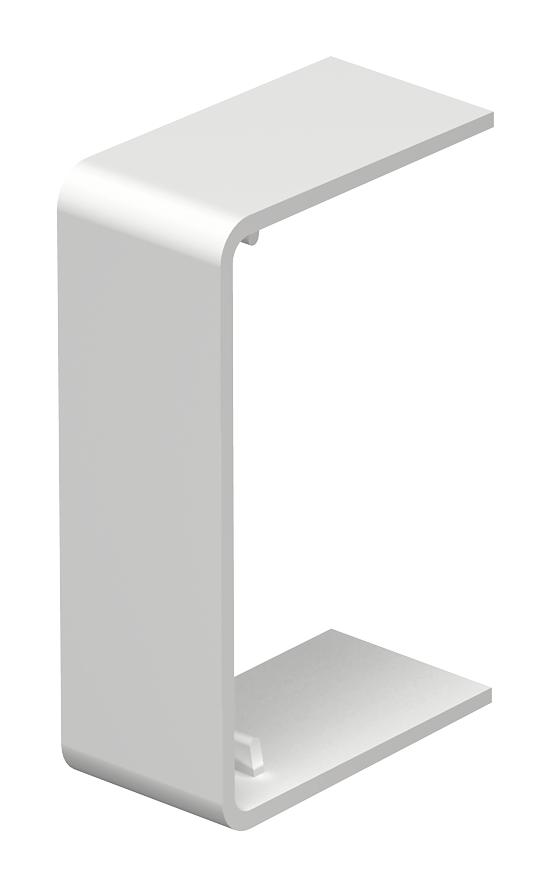

Joint cover, for trunking, type WDK 40110

Item no. 6193586 | EAN 4012195461821

Product description
Product description
Joint cover for hiding cut edges and for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Cover width 40 mm
Dimension 42x113x18mm

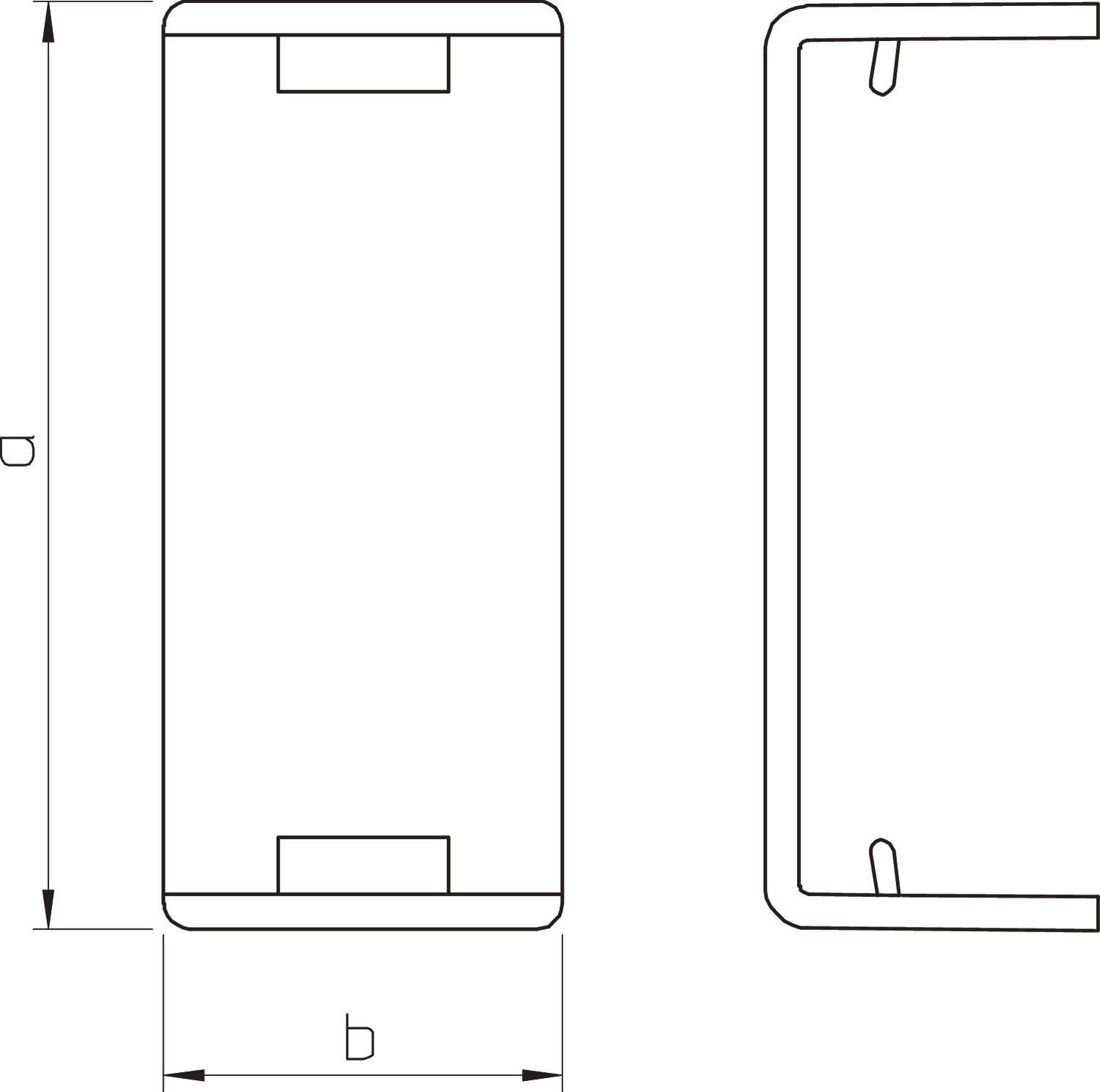

Dimension a 110 mm
Dimension b 39 mm
Fastening type Lockable
Halogen-free no
Height 39 mm
Length 18 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Version for Trunking cut cover
Width 110 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS40110RW Pure white; RAL 9010 6193586
20 piece
WDK HS40110CW Cream; RAL 9001 6193588
20 piece
