Joint cover, for trunking, type WDK 25040 Cream; RAL 9001
morepic-1 morepic-2

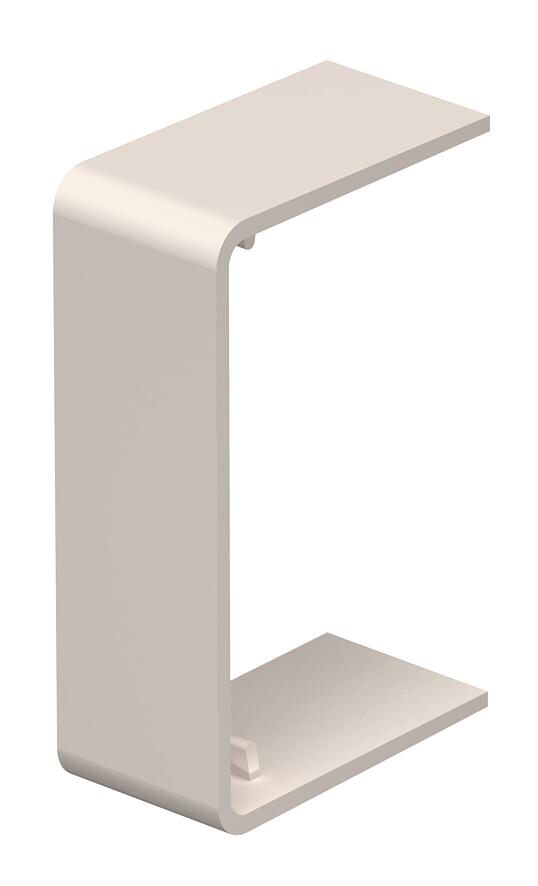

Joint cover, for trunking, type WDK 25040

Item no. 6152082 | EAN 4012196507375

Product description
Product description
Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Cream; RAL 9001
Cover width 14 mm
Dimension 25x40mm

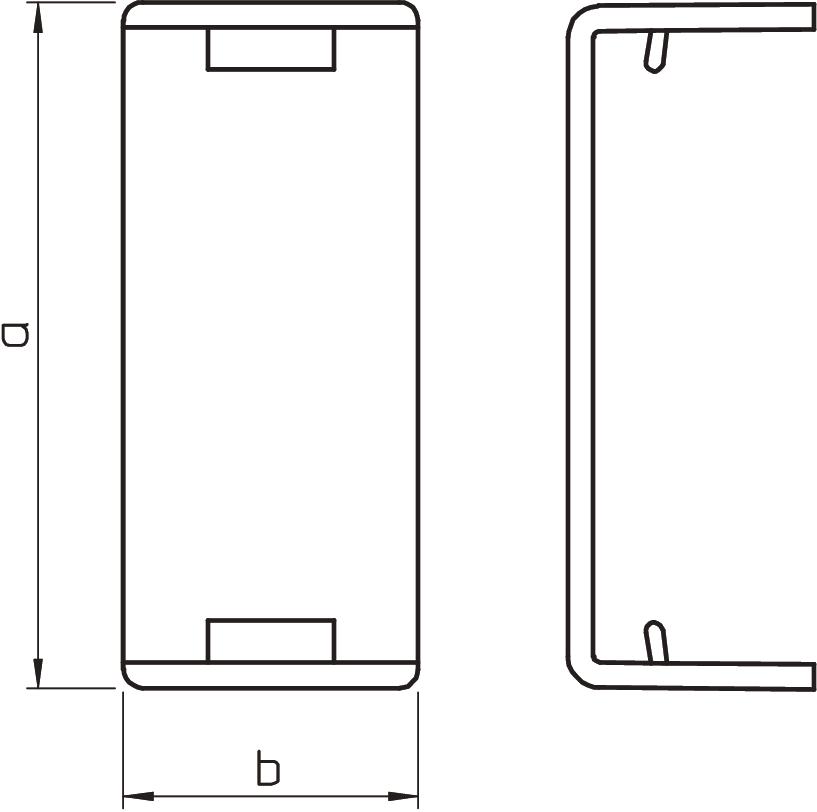

Dimension a 42 mm
Dimension b 14 mm
Dimension H 40 mm
Fastening type Lockable
for duct dimension 25x40
Halogen-free no
Height 25 mm
Length 14 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Trunking depth 25 mm
Version for Trunking cut cover
Width 42 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS25040CW Cream; RAL 9001 6152082
10 piece
WDK HS25040GR Stone grey; RAL 7030 6158889
10 piece
WDK HS25040RW Pure white; RAL 9010 6193560
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HS25040CW / 6152082 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HS25040CW / 6152082 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
