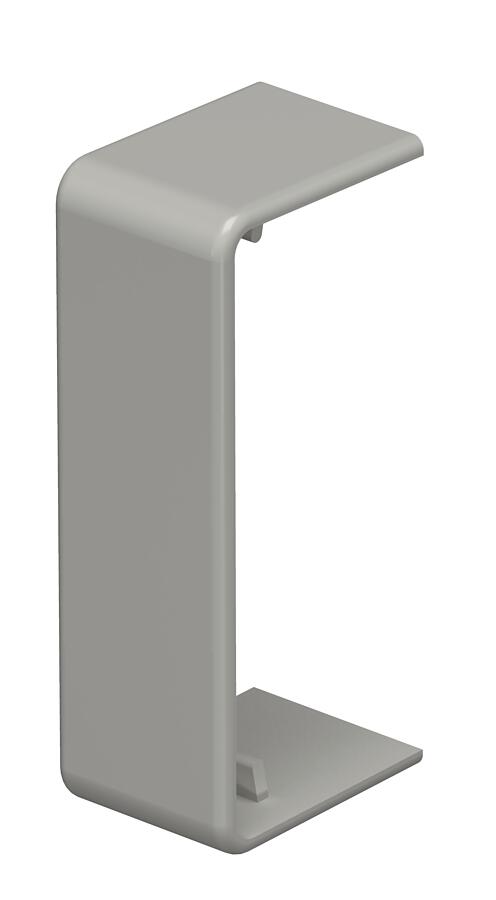

Joint cover, for trunking, type WDK 15040
Item no. 6158846 | EAN 4012196507498
- Product description
-
Product description
Joint cover for smooth connection of trunking segments.
-
- Technical data
-
Technical data
Colour Stone grey; RAL 7030 Cover width 14 mm Dimension 15x40mm Fastening type Lockable Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Shape Symmetrical Trunking depth 15 mm Version for Trunking cut cover Dimensions
Dimension a 42 mm Dimension b 14 mm Dimension H 40 mm Height 15 mm Length 14 mm Width 42 mm - All types
- Downloads
-
Data sheet WDK HS15040GR / 6158846 , 0.25MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HS15040GR / 6158846 , 0.13MB , pdfUK Declaration of Conformity WDK HS15040GR / 6158846 , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
