Joint cover, for trunking, type WDK 10030 Cream; RAL 9001
morepic-1 morepic-2

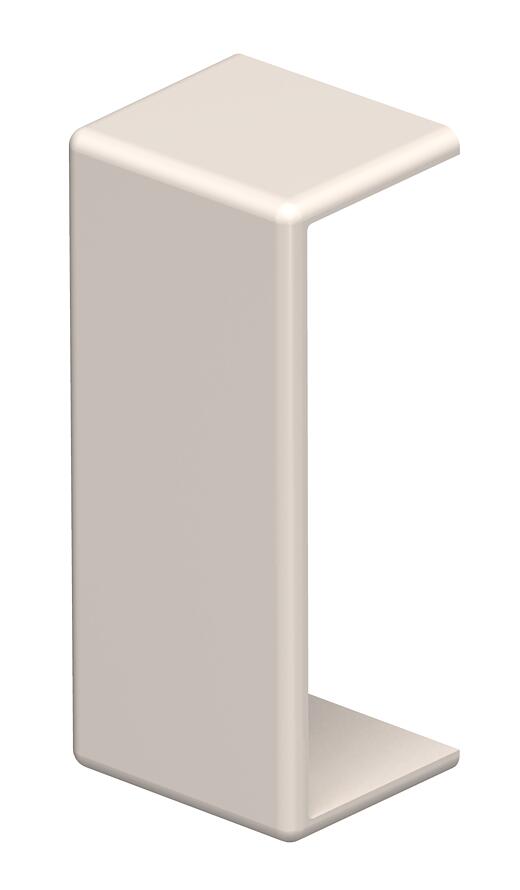

Joint cover, for trunking, type WDK 10030

Item no. 6152015 | EAN 4012196098354

Product description
Product description
Joint cover for smooth connection of trunking segments.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Cream; RAL 9001
Cover width 14 mm
Dimension 10x30mm
Dimension a 32 mm
Dimension b 14 mm
Dimension H 30 mm
Fastening type Lockable
for duct dimension 10x30
Halogen-free no
Height 10 mm
Length 14 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Shape Symmetrical
Trunking depth 10 mm
Version for Trunking cut cover
Width 32 mm
All types

All types

Types Colour Item no. Quantity SSU
WDK HS10030CW Cream; RAL 9001 6152015
10 piece
WDK HS10030RW Pure white; RAL 9010 6154034
10 piece
Downloads

Download

Download

EU declaration of conformity WDK HS10030CW / 6152015 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HS10030CW / 6152015 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
