Joint connector G

Item no. 6016596 | EAN 4012196520510

6016596 / GSV 34 G
29 mm
24 mm
Steel
Electrogalvanized
Product description
Product description

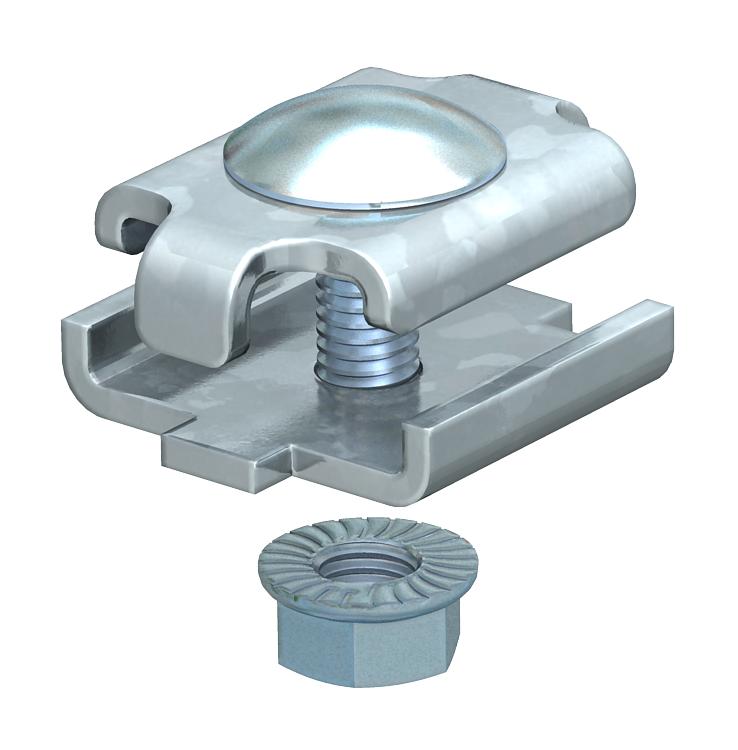

Screwed version of joint connector for mesh cable trays.
Figure: Positioning and quantity of mesh cable tray connectors.

50–150 mm = 2 units

200–300 mm = 3 units

400–450 mm = 4 units

500–600 mm = 5 units
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Colour zinc
Connection type Screw connector
CO₂ Footprint (GWP) Cradle-to-Gate 0,091 kg CO₂e / 1 Piece

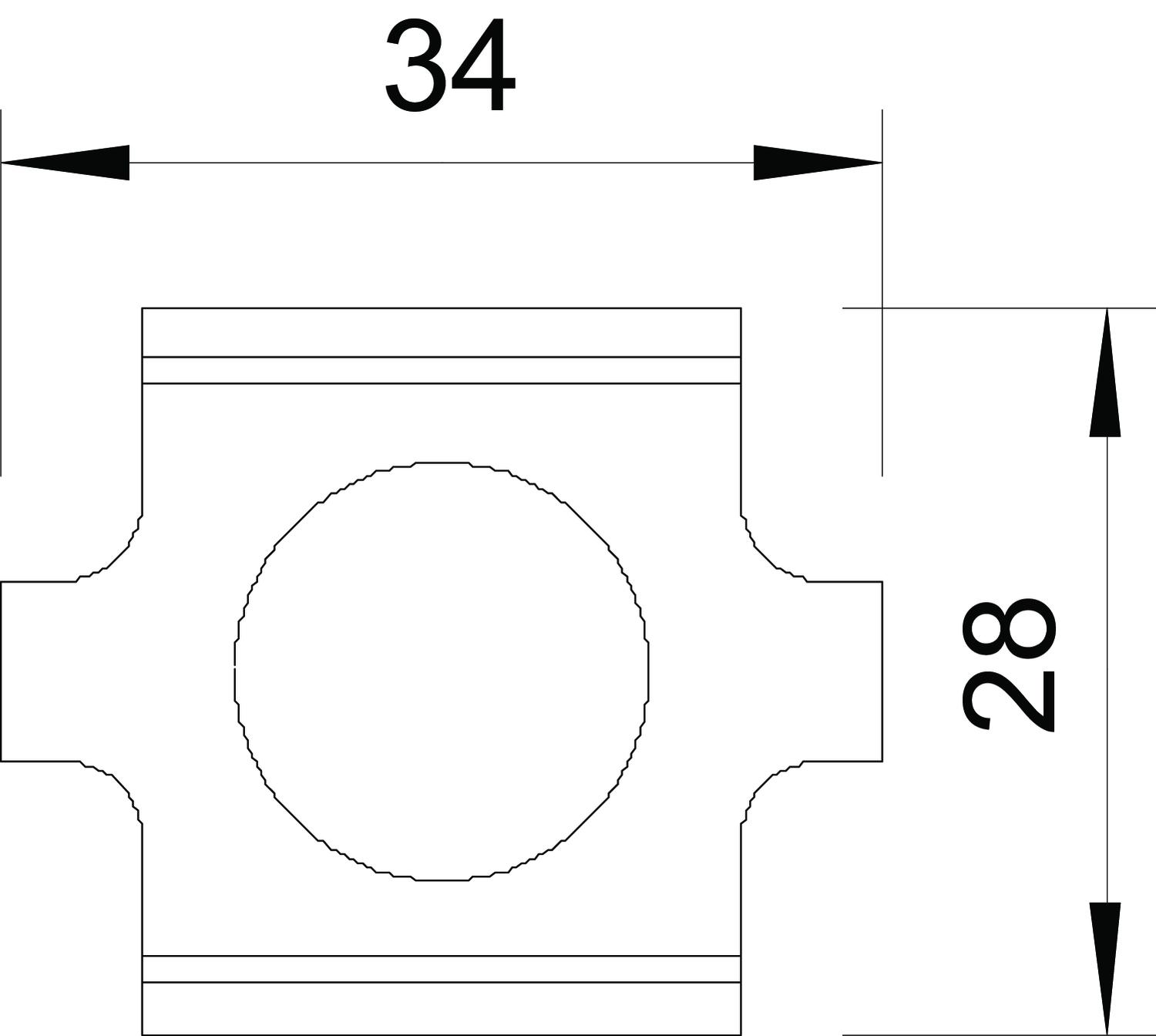

Dimension 34 x 27,5
Height 0,94 in
Height 24 mm
Length 34 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Suitable for mesh cable tray wire, max. 4,9 mm
Suitable for mesh cable tray wire, min. 3,9 mm
Surface Electrogalvanized
Version for Straight connector
Width 1,14 in
Width 29 mm
All types

All types

Types Width Height Material Surface Item no. Quantity SSU
GSV 34 G 29 mm 24 mm Steel Electrogalvanized 6016596
20 piece
