ISO nail clip 4032 16-20
Item no. 2215209 | EAN 4012195213437
- Product description
-
Product descriptionOBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.
-
- Technical data
-
Technical data

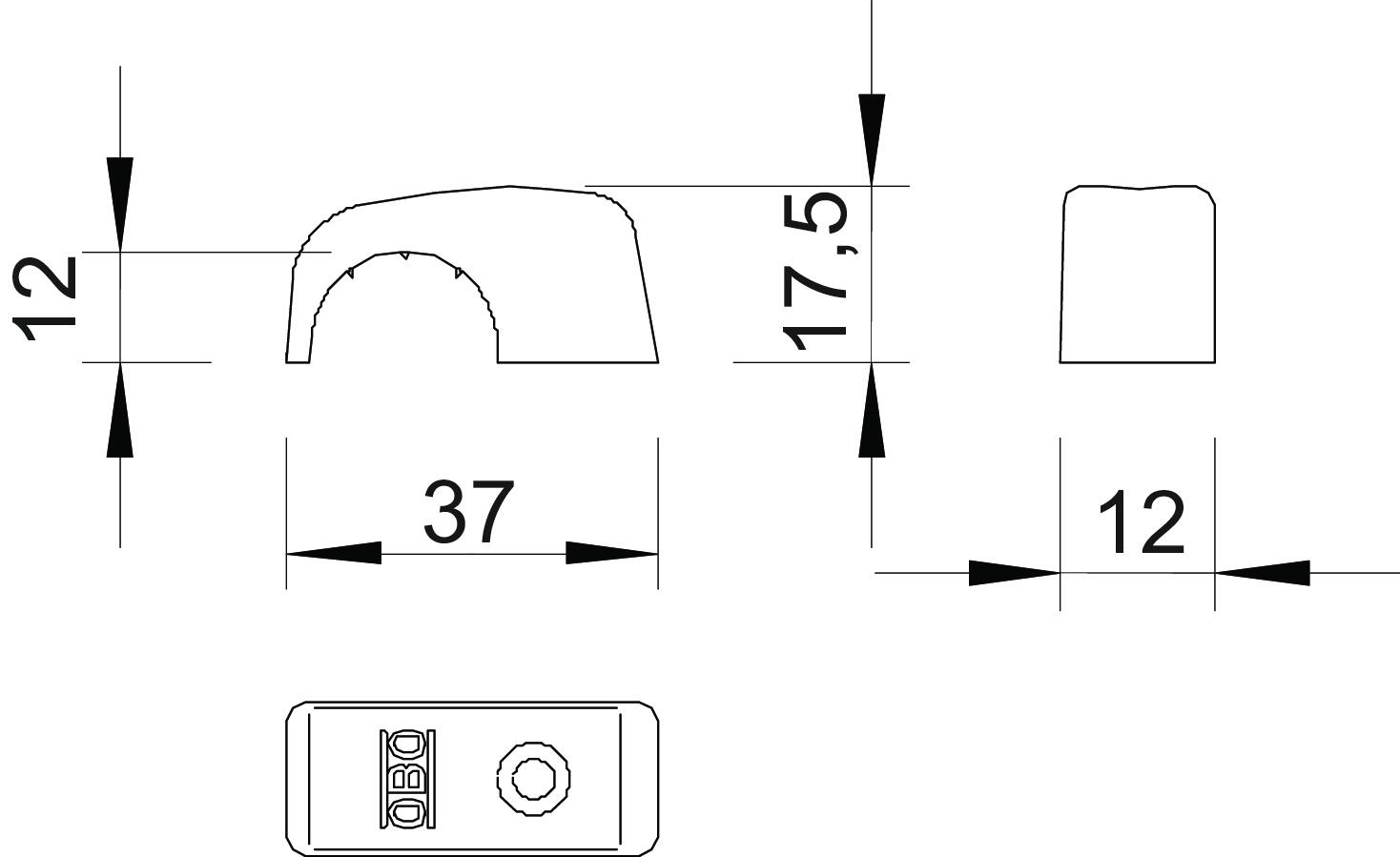

Colour Light grey; RAL 7035 Dimension 16-20mm Dimension B 12 mm Dimension H 17,5 mm Dimension H1 12 mm Dimension L 37 mm Double clip no for cable diameter, max. 20 mm for cable diameter, min. 16 mm For nail diameter 2,0 Halogen-free yes Hardened no Impact-resistant no Material Polypropylene Pipe locking no Shape Round (for round conductor) With nail no - All types
- Downloads
-
Data sheet 4032 / 2215209 , 0.17MB , pdfEU declaration of conformity 4032 / 2215209 , 0.06MB , pdfREACH Declaration of conformity 4032 / 2215209 , 0.12MB , pdfRoHS Declaration of conformity 4032 / 2215209 , 0.12MB , pdf
