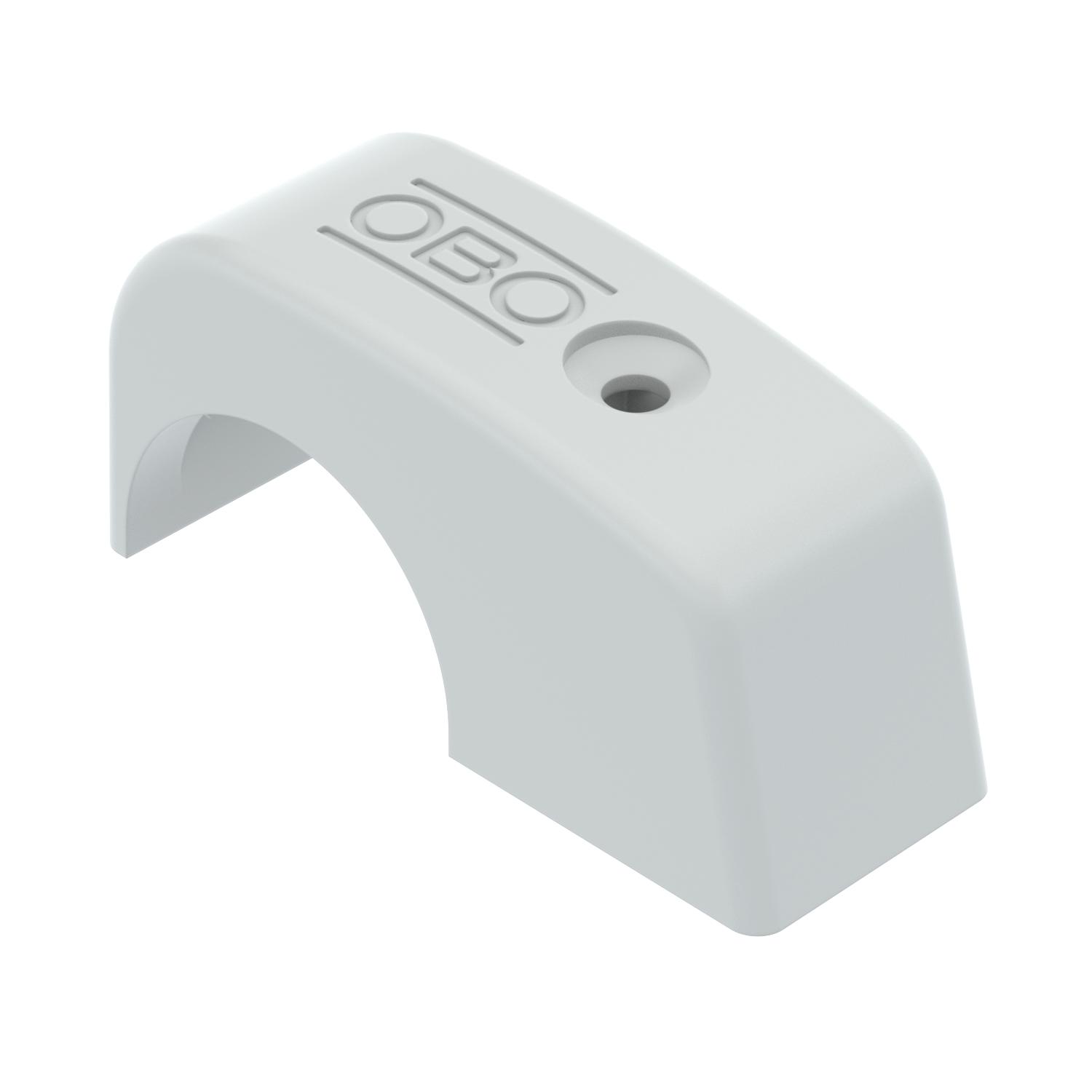

ISO nail clip 4031 10-14
Item no. 2215144 | EAN 4012195213314
- Product description
-
Product description
OBO makes various fastening systems available for fastening cables securely on different substrates. Starting with the adhesive clip or ISO nail clips for fastening, e.g. on wooden beams, up to the Nail-Fix for fixing in masonry slits, OBO can offer a wide range of clips for nail fastening, suitable for steel nails 2 mm.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 10-14mm Double clip no for cable diameter, max. 14 mm for cable diameter, min. 10 mm For nail diameter 2,0 Halogen-free yes Hardened no Impact-resistant no Material Polypropylene Pipe locking no Shape Round (for round conductor) With nail no Dimensions

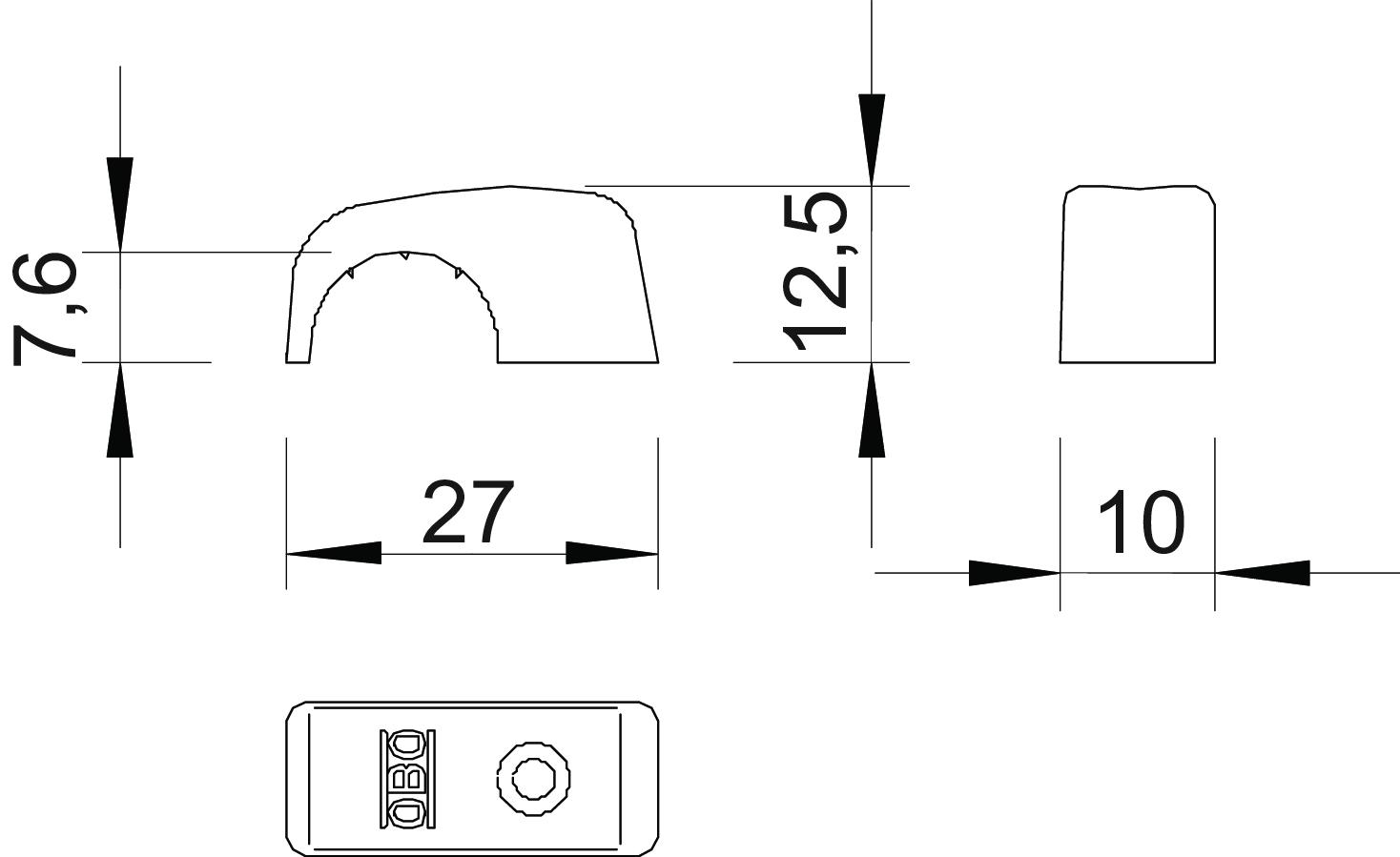

Dimension B 10 mm Dimension H 12,5 mm Dimension H1 7,6 mm Dimension L 27 mm - All types
- Downloads
-
Data sheet 4031 10-14 / 2215144 , 0.16MB , pdfDeclaration of conformity 4031 10-14 / 2215144 , 0.06MB , pdfREACH Declaration of conformity 4031 10-14 / 2215144 , 0.12MB , pdfRoHS Declaration of conformity 4031 10-14 / 2215144 , 0.12MB , pdf
