ISO nail clip 2020, white 40 | 20 | 2,0x40 | Pure white; RAL 9010

morepic-1

morepic-2

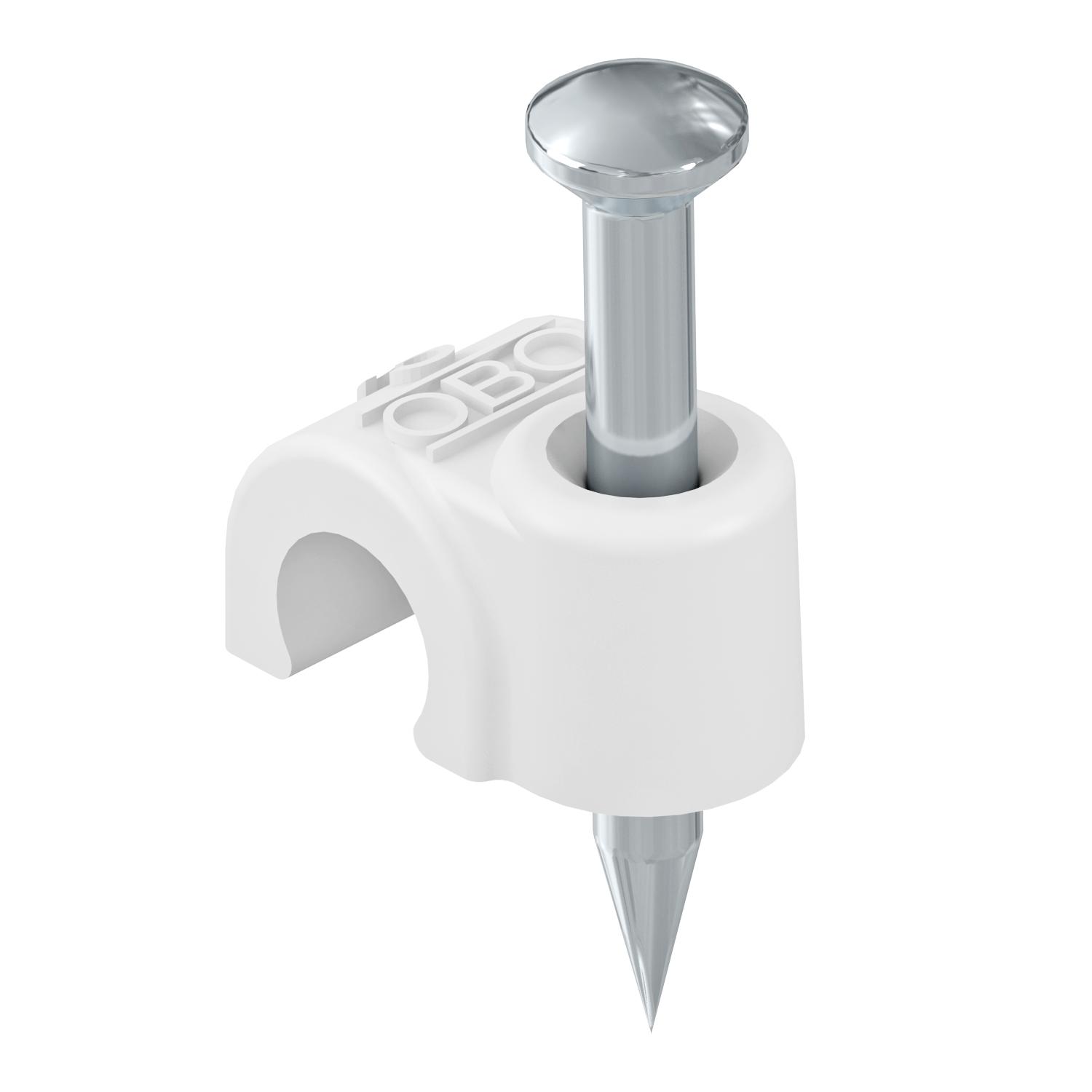

ISO nail clip 2020, white

Item no. 2226405 | EAN 4012195216919

Item no. / Types	2226405 / 2020 40 RW

Nail length	40 mm

for cable diameter	20 mm

For nail diameter	2,0x40

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	20mm, L40
Double clip	no
for cable diameter	20 mm
For nail diameter	2,0x40
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

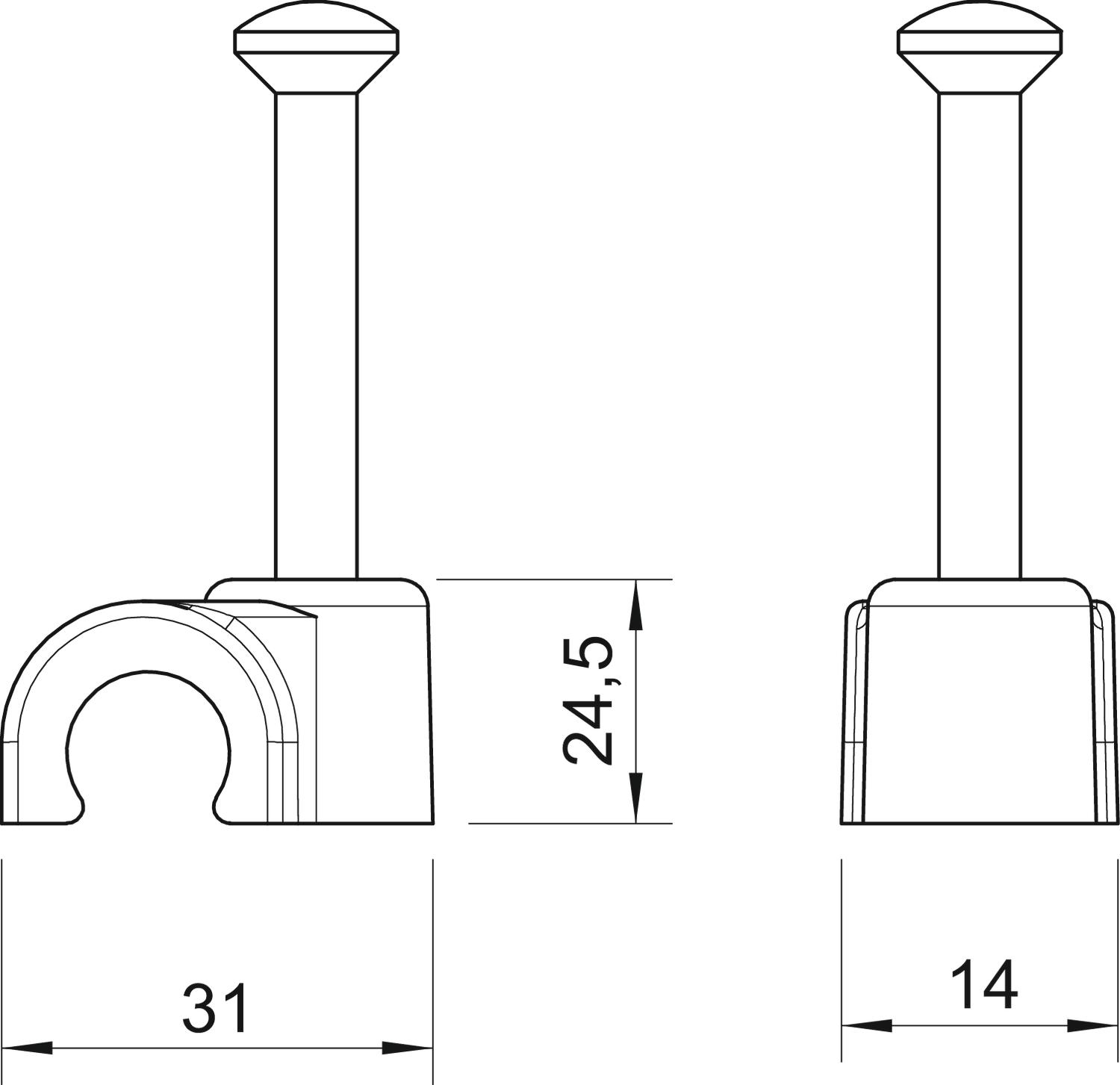

Dimensions

Dimension B	14 mm
Dimension H	24,5 mm

Dimension L	31 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2020 40 RW	40 mm	20 mm	2,0x40	Pure white; RAL 9010	2226405	piece	25 piece

Downloads

Data sheet 2020 40 RW / 2226405 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2020 40 RW / 2226405 , 0.06MB , pdf

Download

Product graphic 2020 40 RW / 2226405, 39.24 kB, jpg

Scale drawing 2020 40 RW / 2226405, 66.20 kB, jpg

2020 40 RW / 2226405
