ISO nail clip 2020, light grey 50 | 20 | 2,0x50 | Light grey; RAL 7035

ISO nail clip 2020, light grey

Item no. 2228416 | EAN 4012195219439

Item no. / Types

Nail length

for cable diameter	20 mm

For nail diameter

Colour	Light grey; RAL 7035

Back to overview

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
CO₂ Footprint (GWP) Cradle-to-Gate	0,0186 kg CO₂e / 1 Piece
Dimension	20mm, L50
Dimension B	14 mm
Dimension H	24,5 mm
Dimension L	31 mm
Double clip	no
for cable diameter	20 mm
For nail diameter	2,0x50

Halogen-free	yes
Hardened	yes
Impact-resistant	no
Material	Polypropylene
Nail length	50 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2020 40 LGR	40 mm	20 mm	2,0x40	Light grey; RAL 7035	2228408	piece	25 piece
2020 50 LGR	50 mm	20 mm	2,0x50	Light grey; RAL 7035	2228416	piece	25 piece

Downloads

Data sheet 2020 50 LGR / 2228416 , 0.16MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2020 50 LGR / 2228416 , 0.06MB , pdf

Download

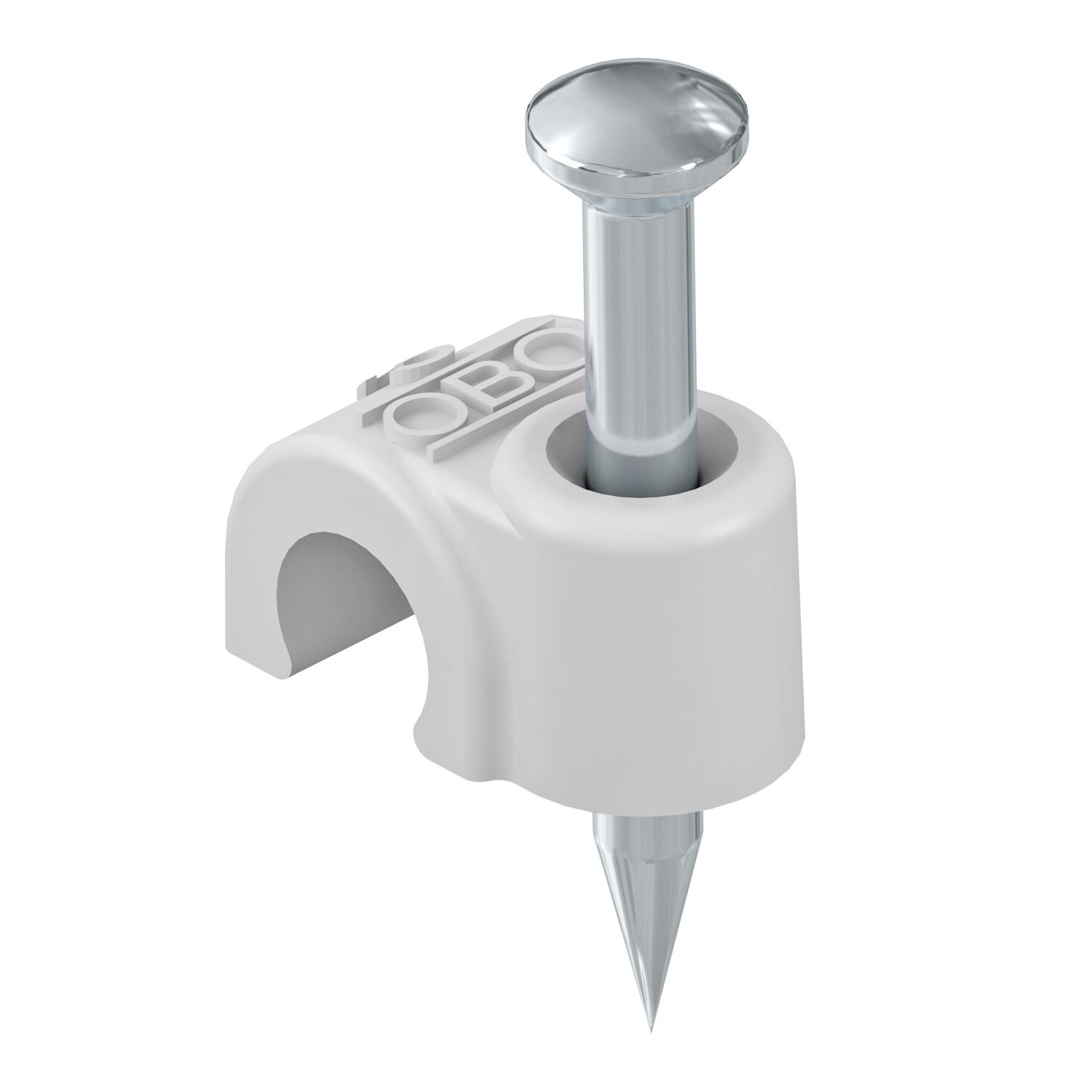

Product graphic 2020 50 LGR / 2228416, 42.61 kB, jpg

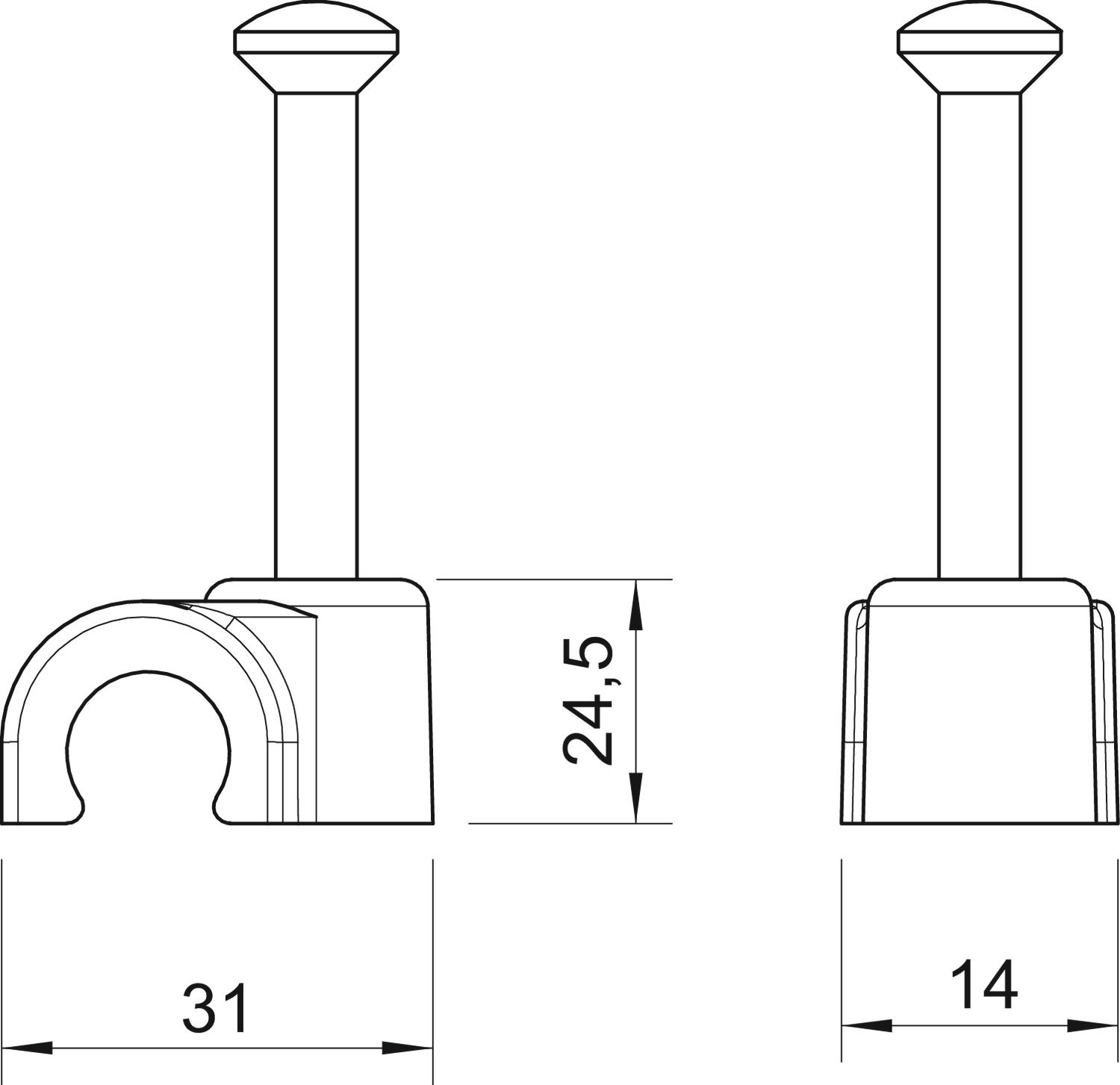

Scale drawing 2020 50 LGR / 2228416, 66.20 kB, jpg

2020 50 LGR / 2228416
