ISO nail clip 2018, light grey 50 | 18 | 2,5x50 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2018, light grey

Item no. 2228319 | EAN 4012195219316

Item no. / Types

Nail length

for cable diameter	18 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	18mm, L50
Double clip	no
for cable diameter	18 mm
For nail diameter	2,5x50
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	50 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

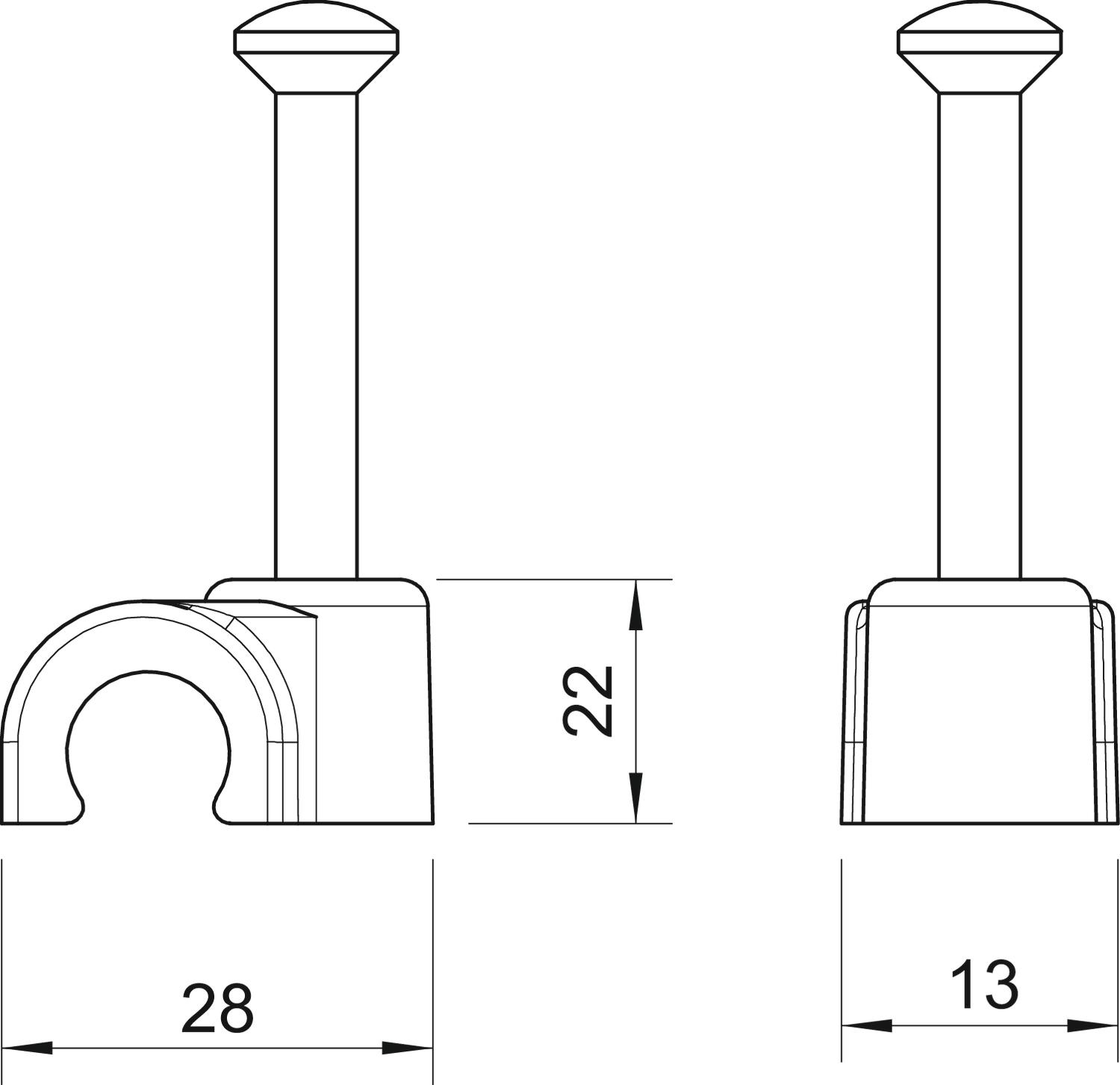

Dimensions

Dimension B	13 mm
Dimension H	22 mm

Dimension L	28 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2018 40 LGR	40 mm	18 mm	2,0x40	Light grey; RAL 7035	2228300	piece	25 piece
2018 50 LGR	50 mm	18 mm	2,5x50	Light grey; RAL 7035	2228319	piece	25 piece

Downloads

Data sheet 2018 50 LGR / 2228319 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2018 50 LGR / 2228319 , 0.06MB , pdf

Download

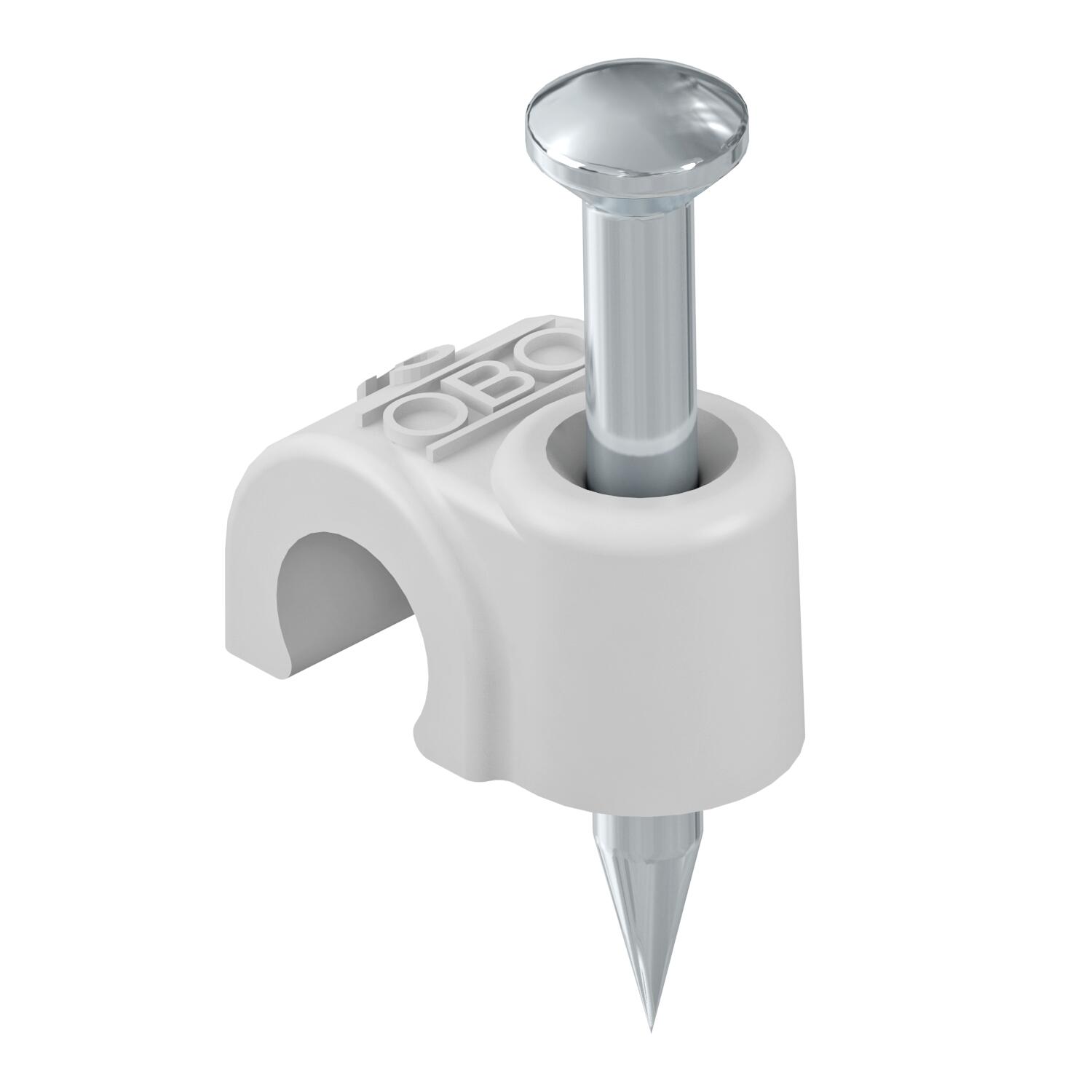

Product graphic 2018 50 LGR / 2228319, 42.51 kB, jpg

Scale drawing 2018 50 LGR / 2228319, 66.09 kB, jpg

2018 50 LGR / 2228319
