- Product description
-
Product description

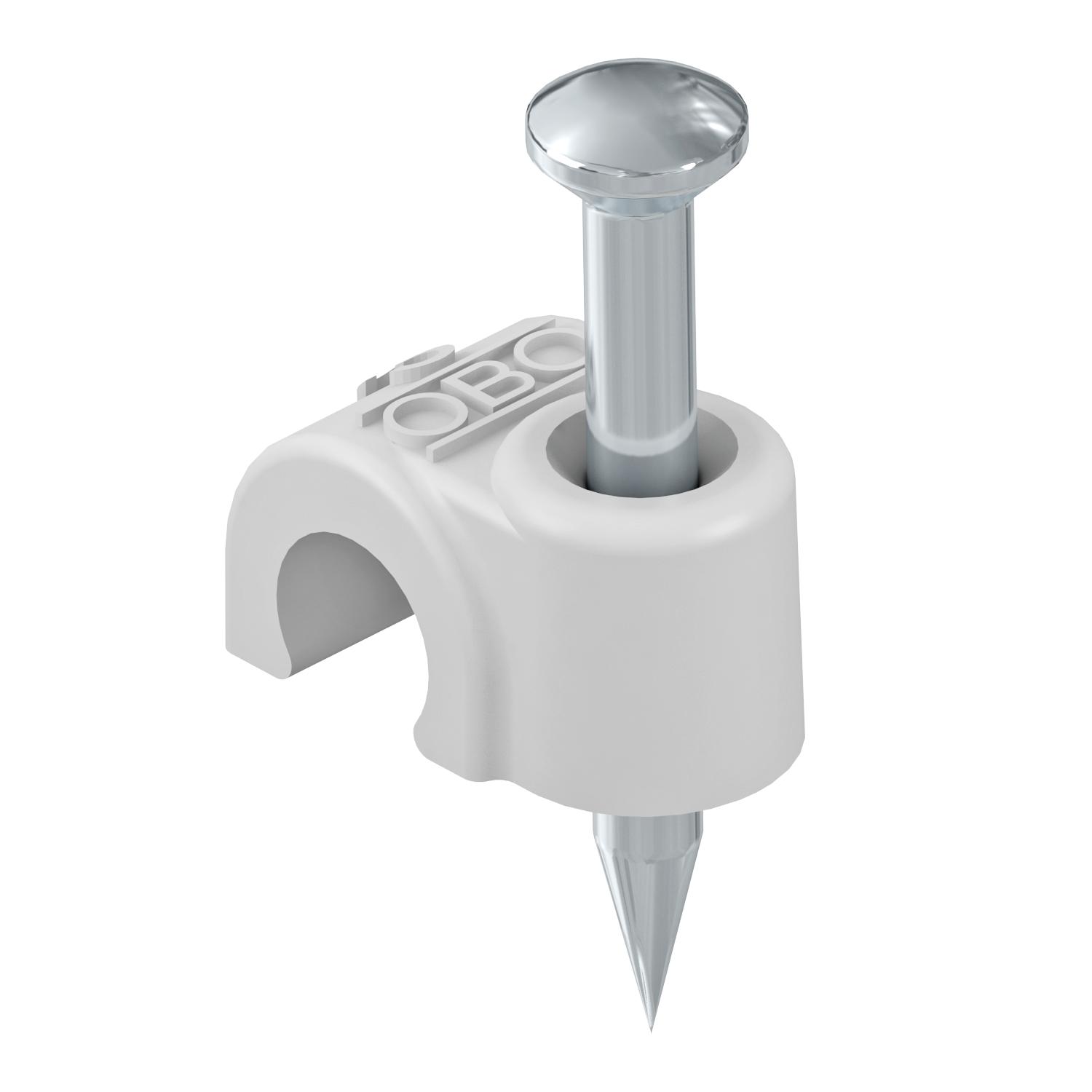

ISO nail clip, short design
- Technical data
-
Technical data

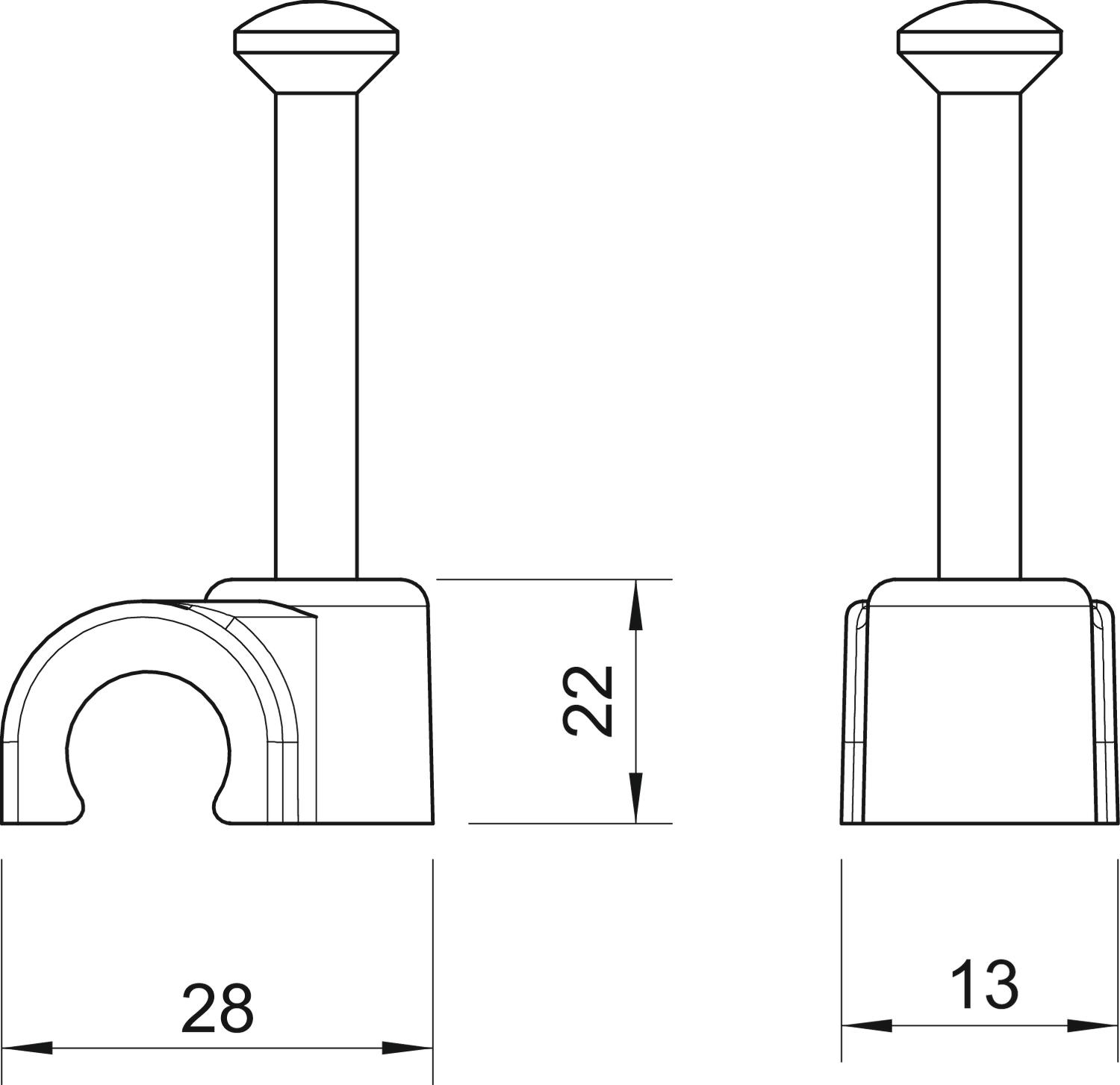

Colour Light grey; RAL 7035 Dimension 18mm, L40 Dimension B 13 mm Dimension H 22 mm Dimension L 28 mm Double clip no for cable diameter 18 mm For nail diameter 2,0x40 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 40 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2018 40 LGR / 2228300 , 0.18MB , pdfDeclaration of conformity 2018 40 LGR / 2228300 , 0.06MB , pdf
