ISO nail clip 2016, white 40 | 16 | 2,0x40 | Pure white; RAL 9010

morepic-1

morepic-2

ISO nail clip 2016, white

Item no. 2226219 | EAN 4012195216674

Item no. / Types	2226219 / 2016 40 RW

Nail length	40 mm

for cable diameter	16 mm

For nail diameter	2,0x40

Colour	Pure white; RAL 9010

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	16mm, L40
Double clip	no
for cable diameter	16 mm
For nail diameter	2,0x40
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

Dimensions

Dimension B	12 mm
Dimension H	20 mm

Dimension L	26 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2016 40 RW	40 mm	16 mm	2,0x40	Pure white; RAL 9010	2226219	piece	50 piece

Downloads

Data sheet 2016 40 RW / 2226219 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2016 40 RW / 2226219 , 0.06MB , pdf

Download

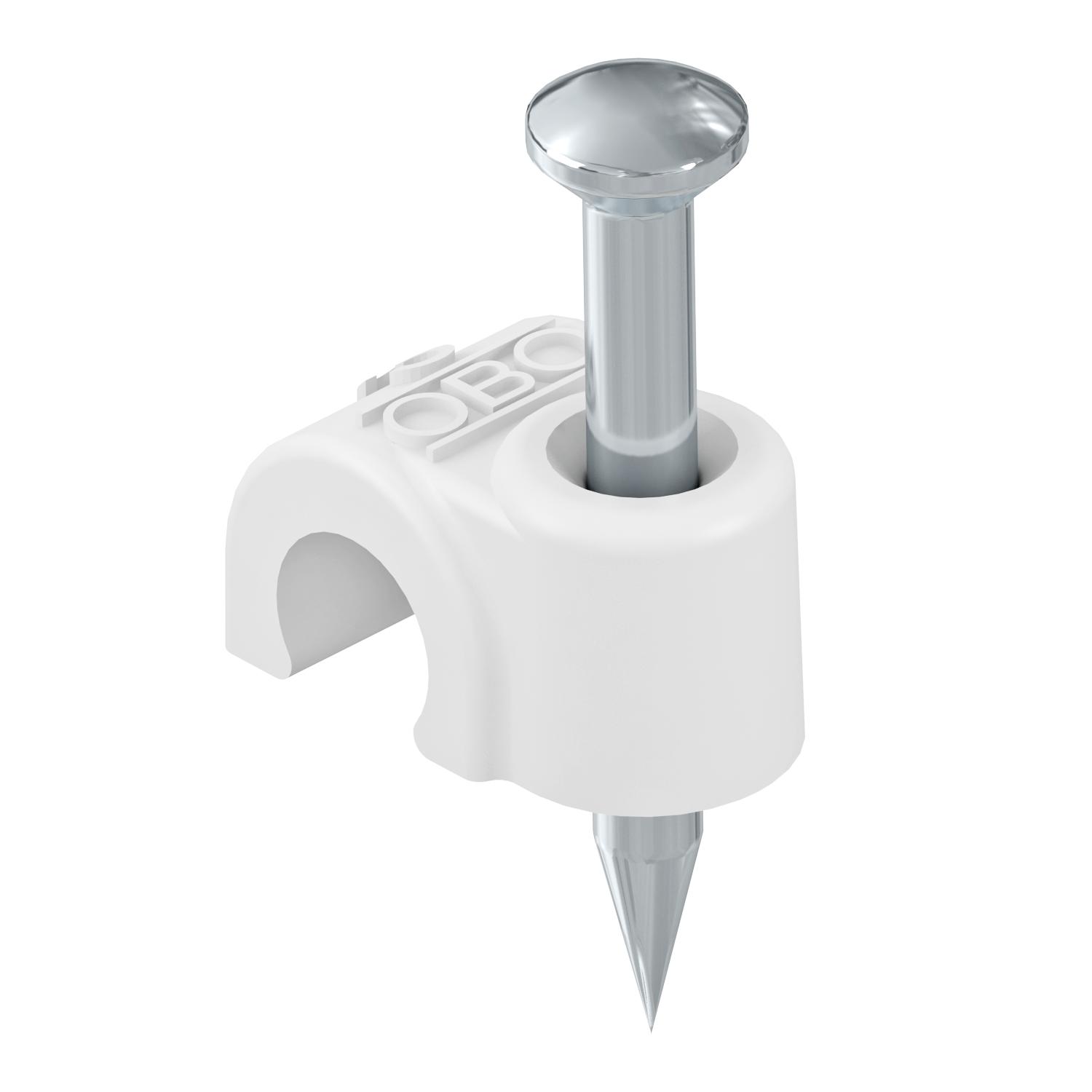

Product graphic 2016 40 RW / 2226219, 39.24 kB, jpg

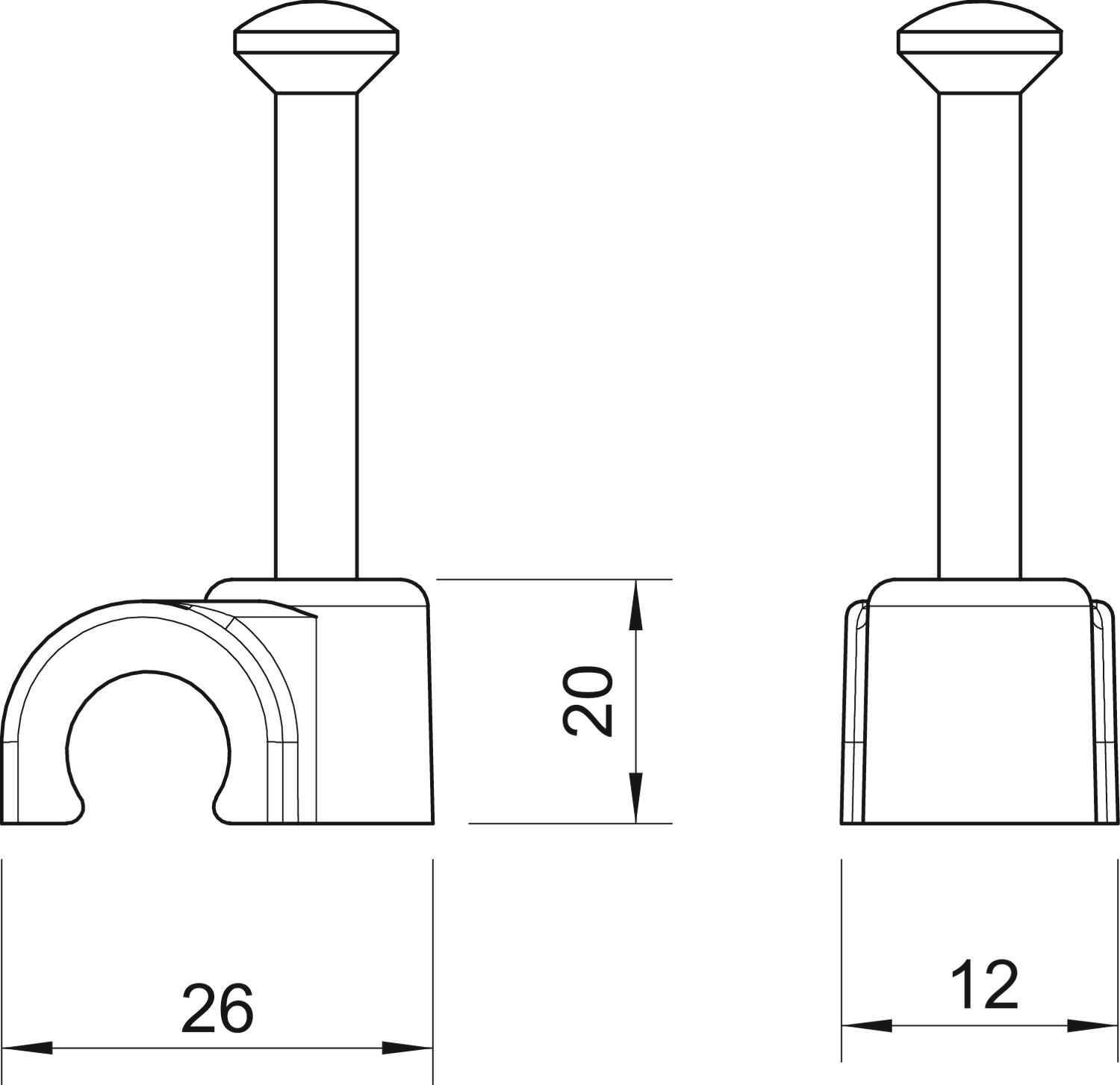

Scale drawing 2016 40 RW / 2226219, 66.17 kB, jpg

2016 40 RW / 2226219
