ISO nail clip 2016, light grey 40 | 16 | 2,0x40 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2016, light grey

Item no. 2228211 | EAN 4012195219132

Item no. / Types

Nail length

for cable diameter	16 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	16mm, L40
Double clip	no
for cable diameter	16 mm
For nail diameter	2,0x40
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

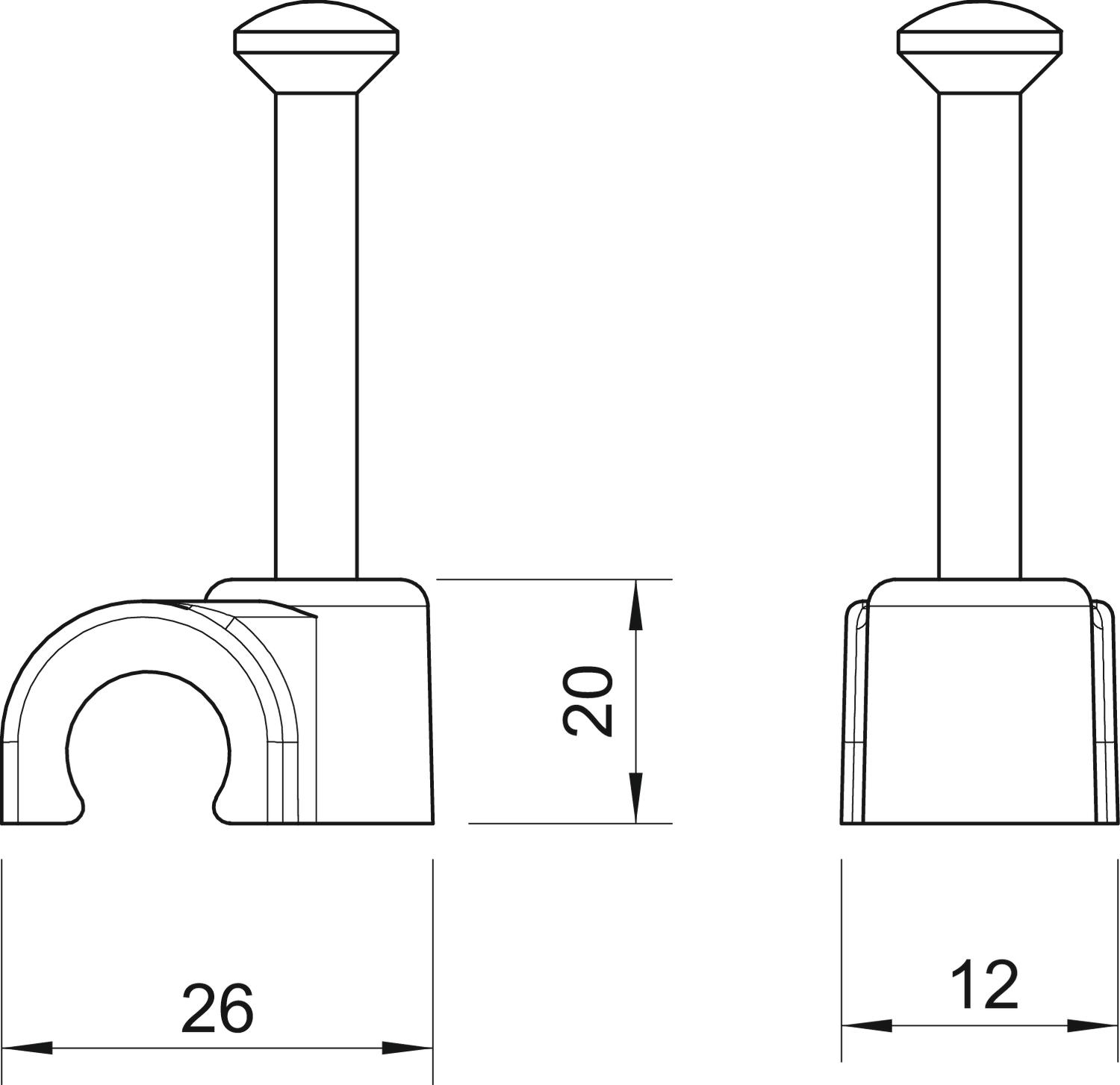

Dimensions

Dimension B	12 mm
Dimension H	20 mm

Dimension L	26 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2016 40 LGR	40 mm	16 mm	2,0x40	Light grey; RAL 7035	2228211	piece	50 piece
2016 50 LGR	50 mm	16 mm	2,0x50	Light grey; RAL 7035	2228238	piece	50 piece

Downloads

Data sheet 2016 40 LGR / 2228211 , 0.22MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2016 40 LGR / 2228211 , 0.06MB , pdf

Download

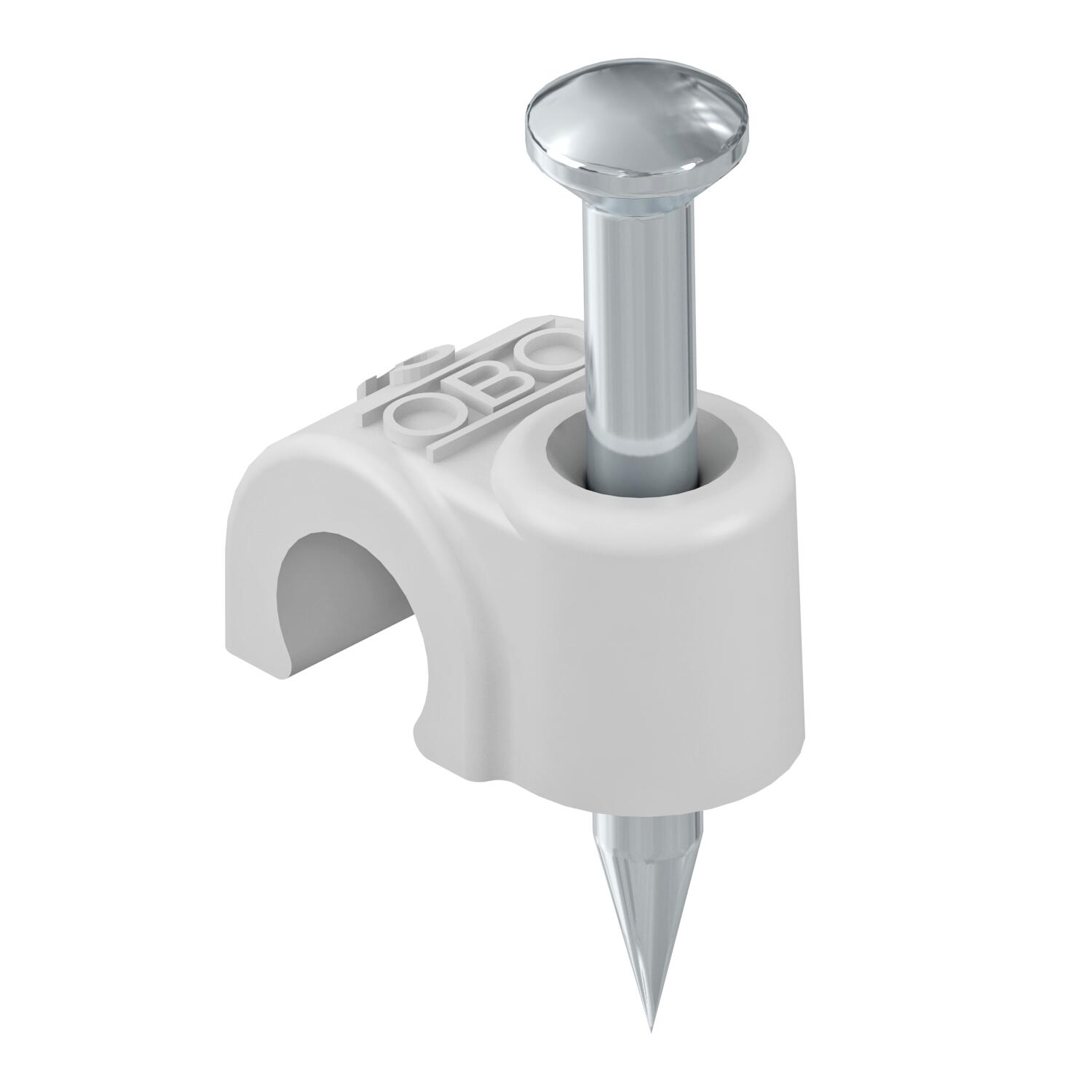

Product graphic 2016 40 LGR / 2228211, 42.51 kB, jpg

Scale drawing 2016 40 LGR / 2228211, 66.17 kB, jpg

2016 40 LGR / 2228211
