ISO nail clip 2012, white 25 | 12 | 2,0x25 | Pure white; RAL 9010
morepic-1 morepic-2

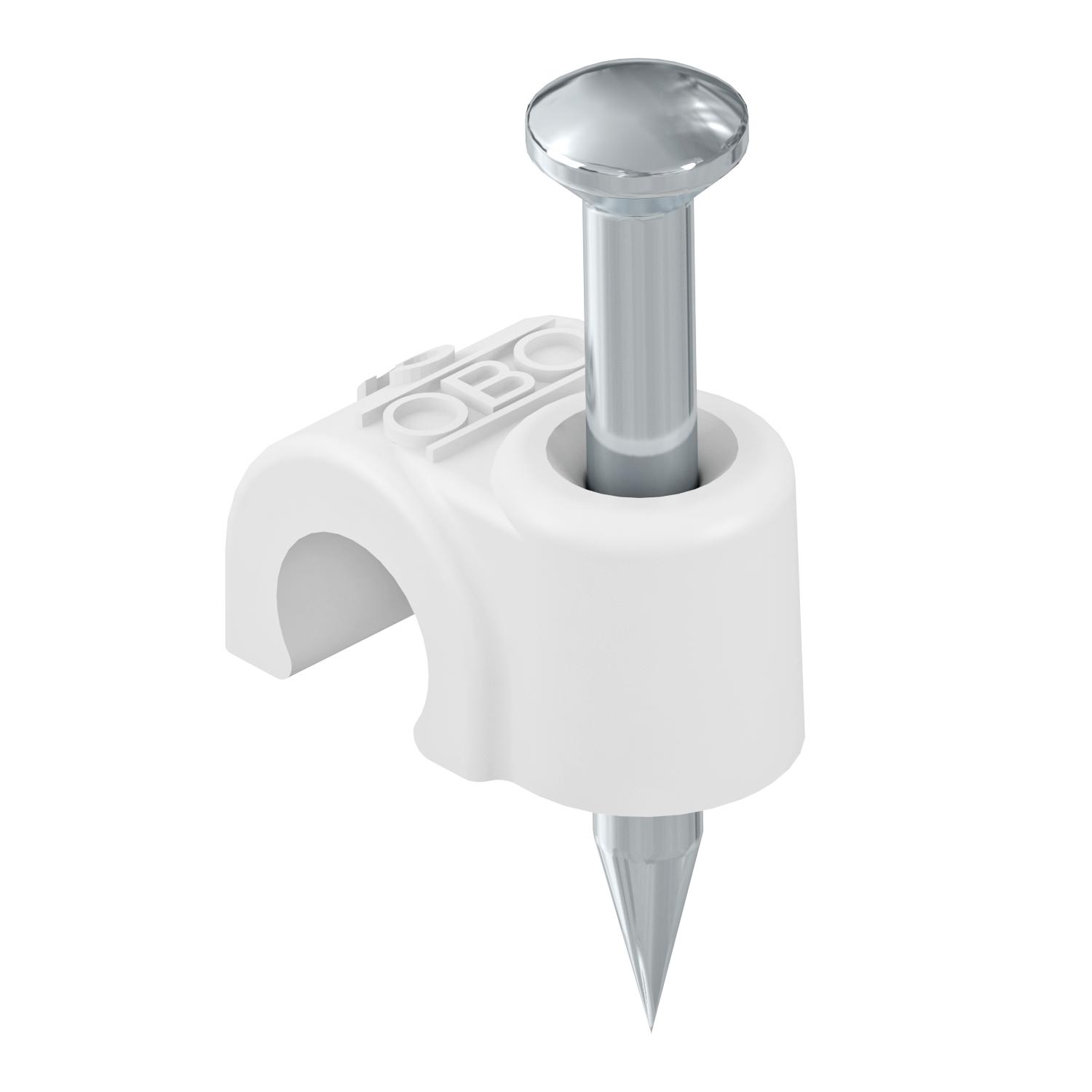

ISO nail clip 2012, white

Item no. 2226014 | EAN 4012195216254

12 mm
Pure white; RAL 9010
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 12mm, L25
Double clip no
for cable diameter 12 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes

Dimensions

Dimension B 9 mm
Dimension H 14,8 mm
Dimension L 19,8 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2012 25 RW 25 mm 12 mm 2,0x25 Pure white; RAL 9010 2226014
100 piece
2012 35 RW 35 mm 12 mm 2,0x35 Pure white; RAL 9010 2226022
100 piece
