ISO nail clip 2012, light grey 35 | 12 | 2,0x35 | Light grey; RAL 7035
morepic-1 morepic-2

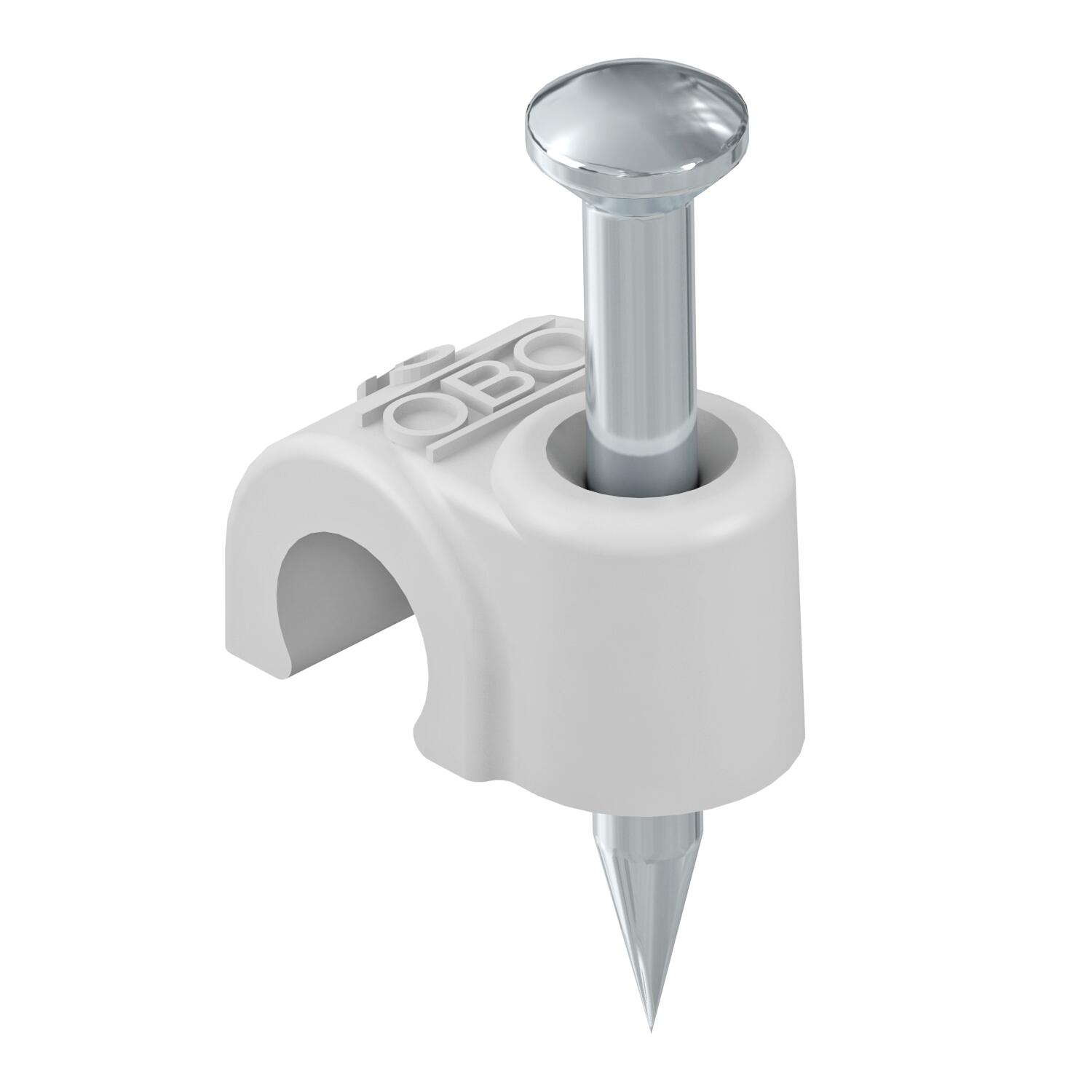

ISO nail clip 2012, light grey

Item no. 2228025 | EAN 4012195218777

12 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 12mm, L35
Double clip no
for cable diameter 12 mm
For nail diameter 2,0x35
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 35 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

Dimensions

Dimension B 9 mm
Dimension H 14,8 mm
Dimension L 19,8 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2012 35 LGR 35 mm 12 mm 2,0x35 Light grey; RAL 7035 2228025
100 piece
2012 45 LGR 45 mm 12 mm 2,0x45 Light grey; RAL 7035 2228033
100 piece
Downloads

Download

Download

Declaration of conformity 2012 35 LGR / 2228025 , 0.06MB , pdf
Download

2012 35 LGR / 2228025
Download
