ISO nail clip 2012, black 35 | 12 | 2,0x35 | Jet black; RAL 9005
morepic-1 morepic-2

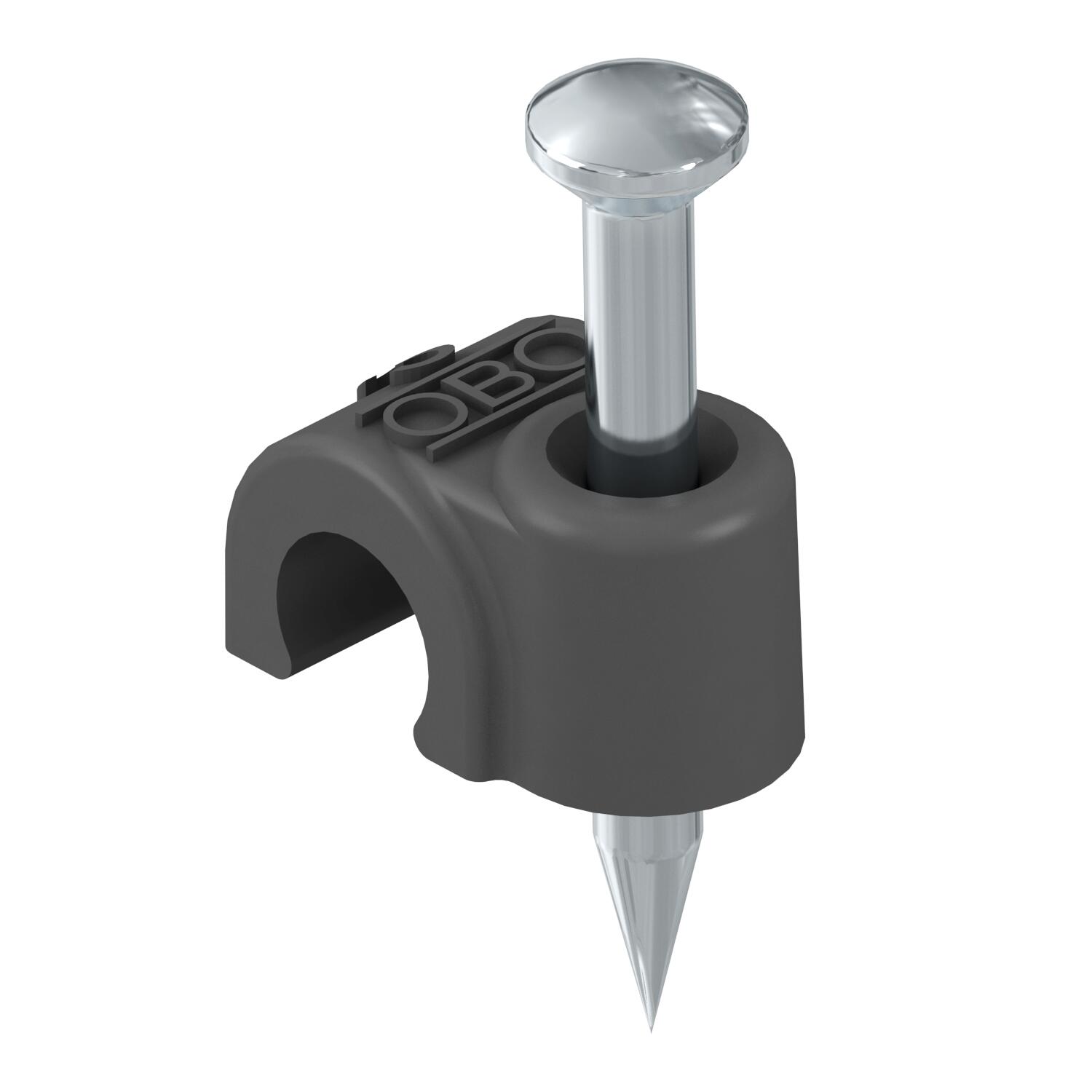

ISO nail clip 2012, black

Item no. 2232316 | EAN 4012195335955

2232316 / 2012 35 SW
35 mm
12 mm
2,0x35
Jet black; RAL 9005
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Jet black; RAL 9005
Dimension 12mm, L35
Double clip no
for cable diameter 12 mm
For nail diameter 2,0x35
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 35 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

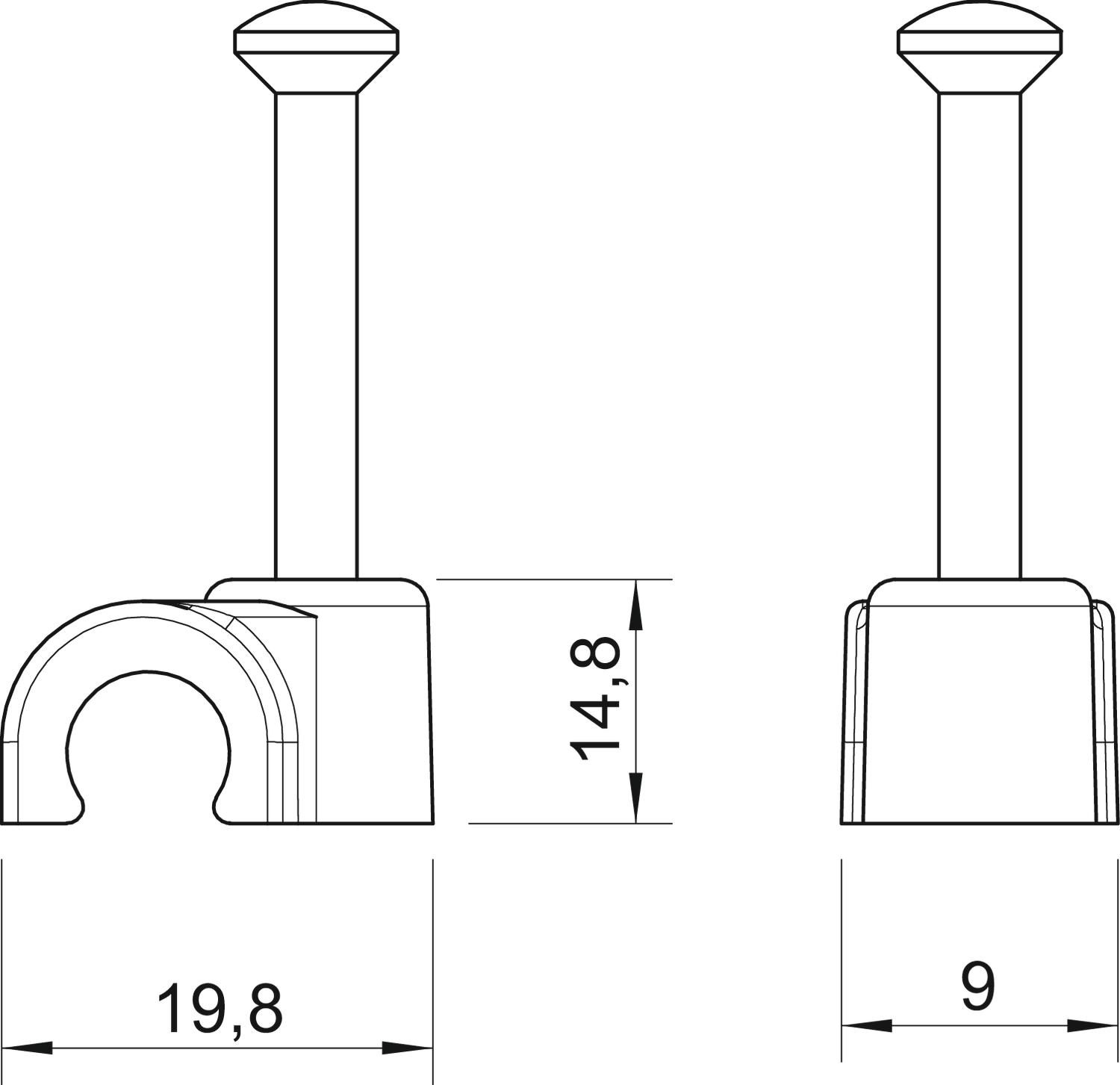

Dimensions

Dimension B 9 mm
Dimension H 14,8 mm
Dimension L 19,8 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2012 35 SW 35 mm 12 mm 2,0x35 Jet black; RAL 9005 2232316
100 piece
Downloads

Download

Download

Declaration of conformity 2012 35 SW / 2232316 , 0.06MB , pdf
