ISO nail clip 2011, light grey 45 | 11 | 2,0x45 | Light grey; RAL 7035

morepic-1

morepic-2

ISO nail clip 2011, light grey

Item no. 2227924 | EAN 4012195218654

Item no. / Types

Nail length

for cable diameter	11 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

ISO nail clip, short design

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	11mm, L45
Double clip	no
for cable diameter	11 mm
For nail diameter	2,0x45
Halogen-free	yes
Hardened	yes

Impact-resistant	no
Material	Polypropylene
Nail length	45 mm
Pipe locking	no
Shape	Round (for round conductor)
Transparent	no
With nail	yes

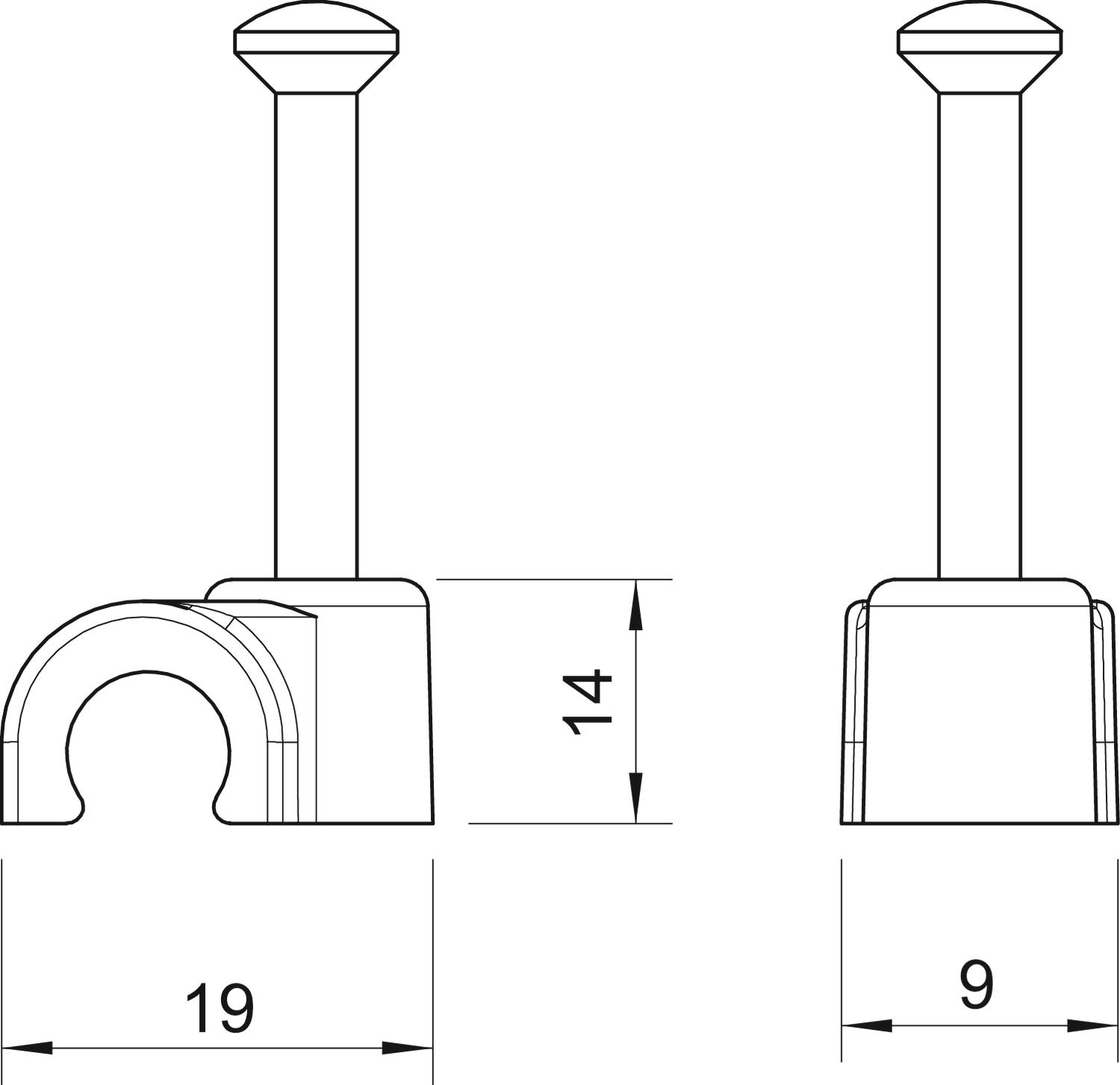

Dimensions

Dimension B	9 mm
Dimension H	14 mm

Dimension L	19 mm

All types

All types

Types	Nail length	for cable diameter	For nail diameter	Colour	Item no.	Quantity	SSU
2011 35 LGR	35 mm	11 mm	2,0x35	Light grey; RAL 7035	2227916	piece	100 piece
2011 45 LGR	45 mm	11 mm	2,0x45	Light grey; RAL 7035	2227924	piece	100 piece

Downloads

Data sheet 2011 45 LGR / 2227924 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2011 45 LGR / 2227924 , 0.06MB , pdf

Download

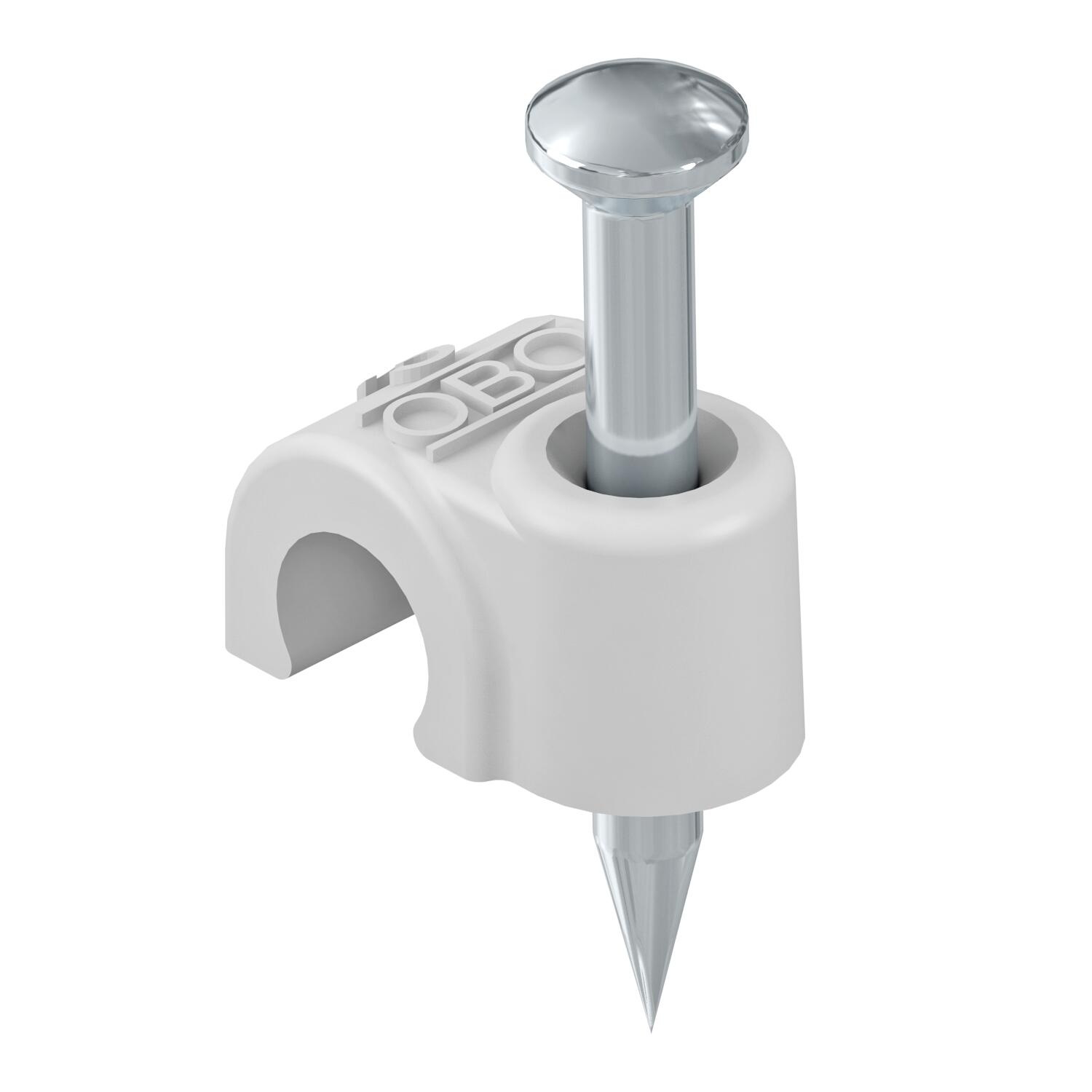

Product graphic 2011 45 LGR / 2227924, 42.51 kB, jpg

Scale drawing 2011 45 LGR / 2227924, 64.53 kB, jpg

2011 45 LGR / 2227924
