- Product description
-
Product description

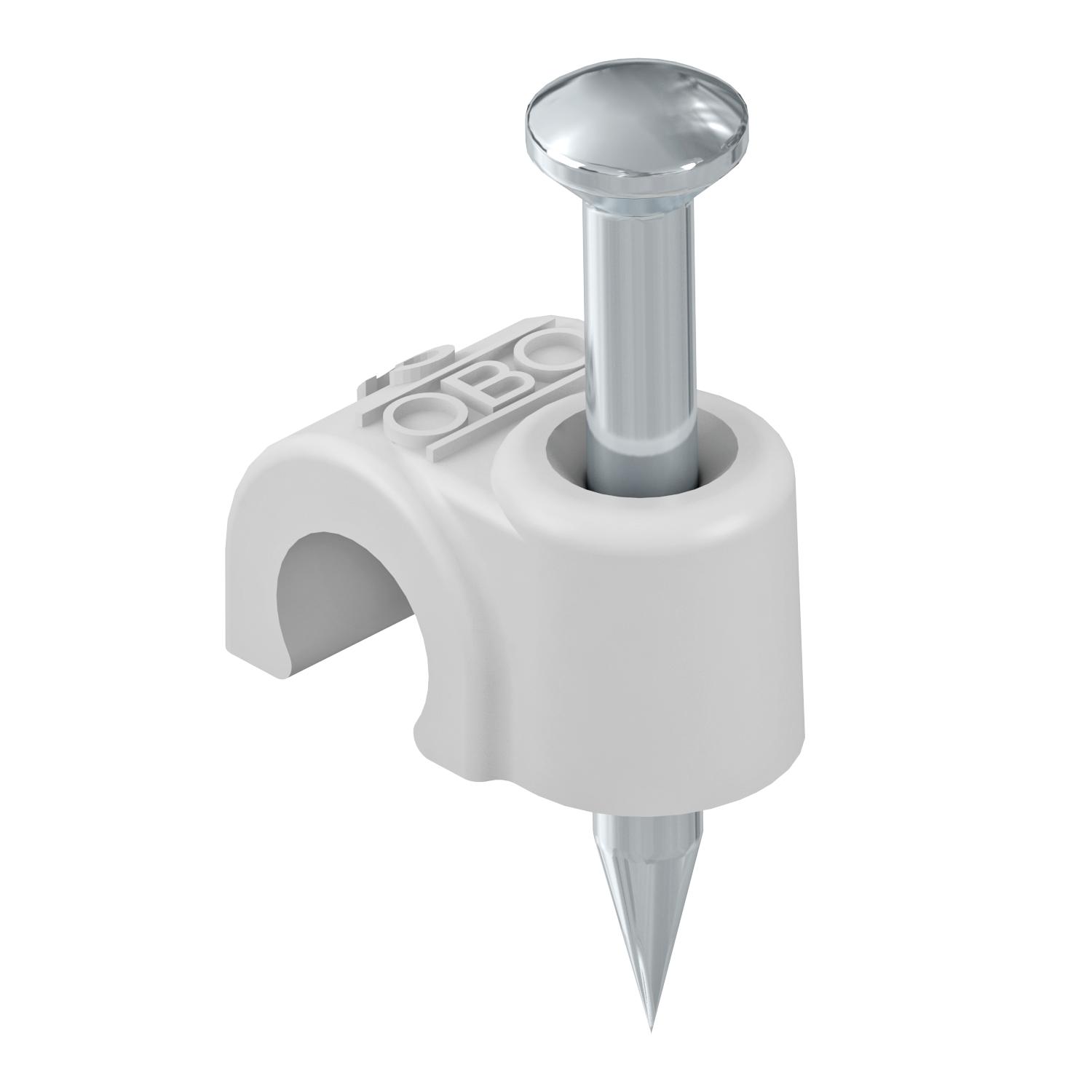

ISO nail clip, short design
- Technical data
-
Technical data

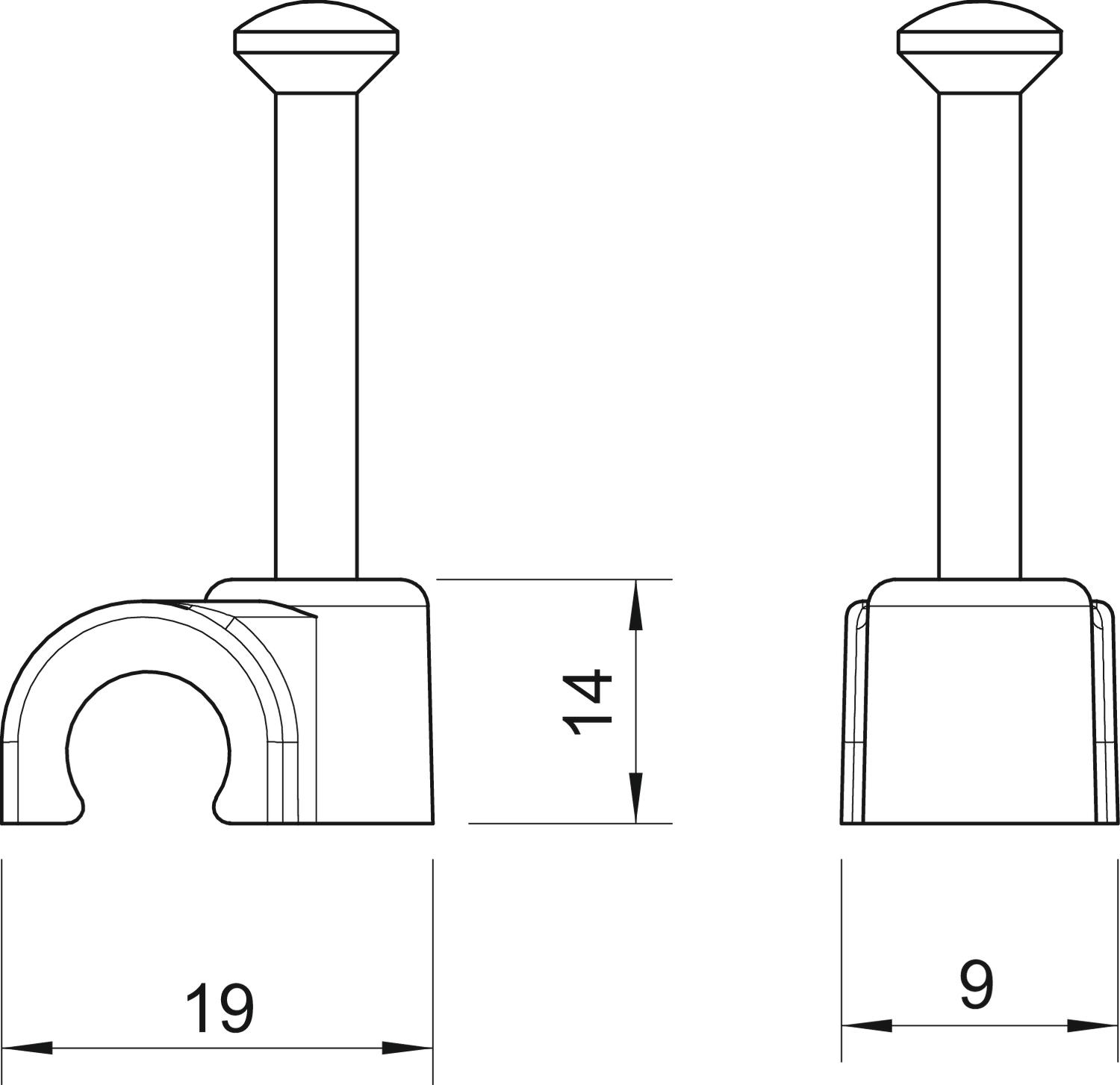

Colour Light grey; RAL 7035 Dimension 11mm, L35 Dimension B 9 mm Dimension H 14 mm Dimension L 19 mm Double clip no for cable diameter 11 mm For nail diameter 2,0x35 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 35 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2011 35 LGR / 2227916 , 0.18MB , pdfDeclaration of conformity 2011 35 LGR / 2227916 , 0.06MB , pdf
