ISO nail clip 2009, light grey 25 | 9 | 2,0x25 | Light grey; RAL 7035
morepic-1 morepic-2

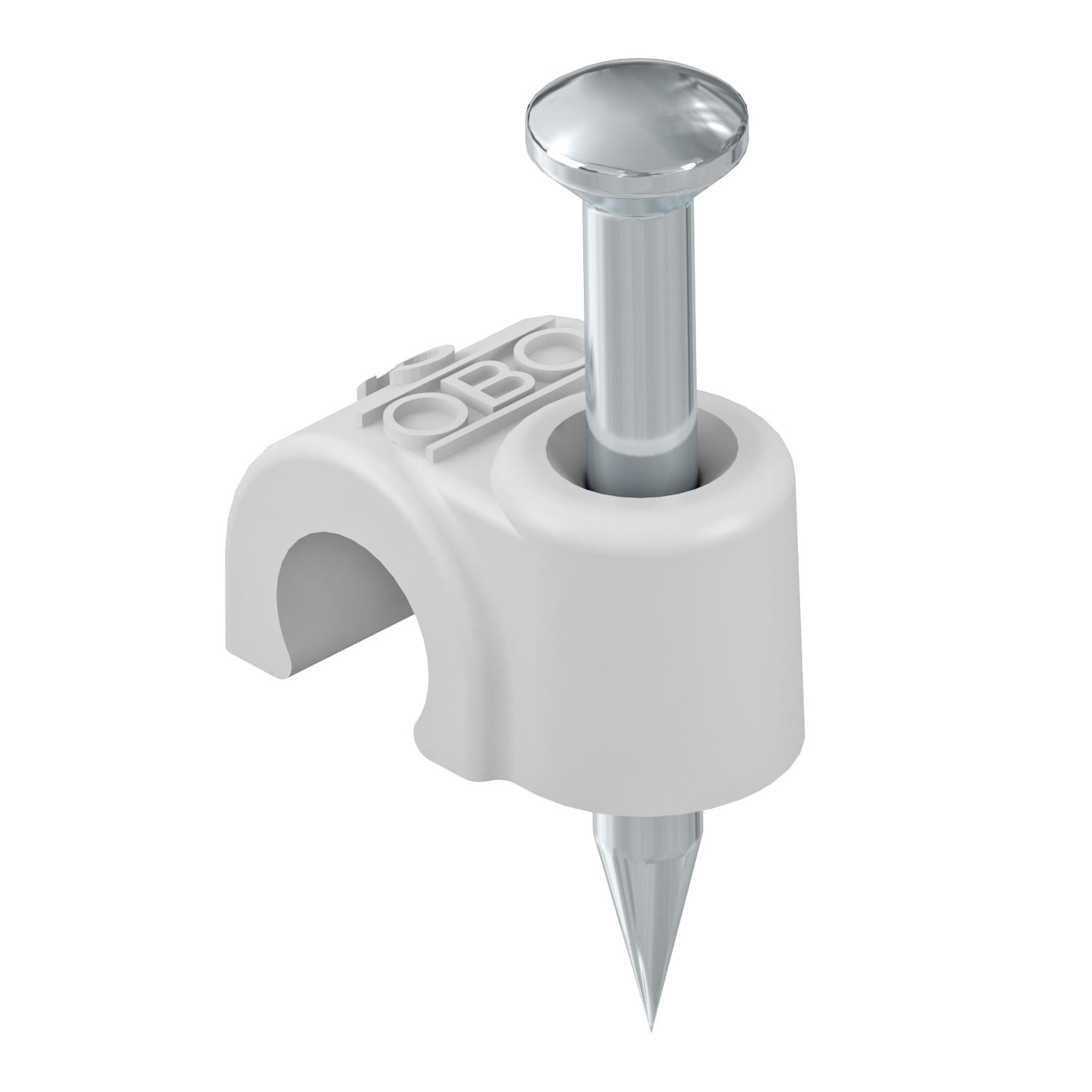

ISO nail clip 2009, light grey

Item no. 2227711 | EAN 4012195218173

9 mm
Light grey; RAL 7035
Product description

Product description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 9mm, L25
Double clip no
for cable diameter 9 mm
For nail diameter 2,0x25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
Transparent no
With nail yes

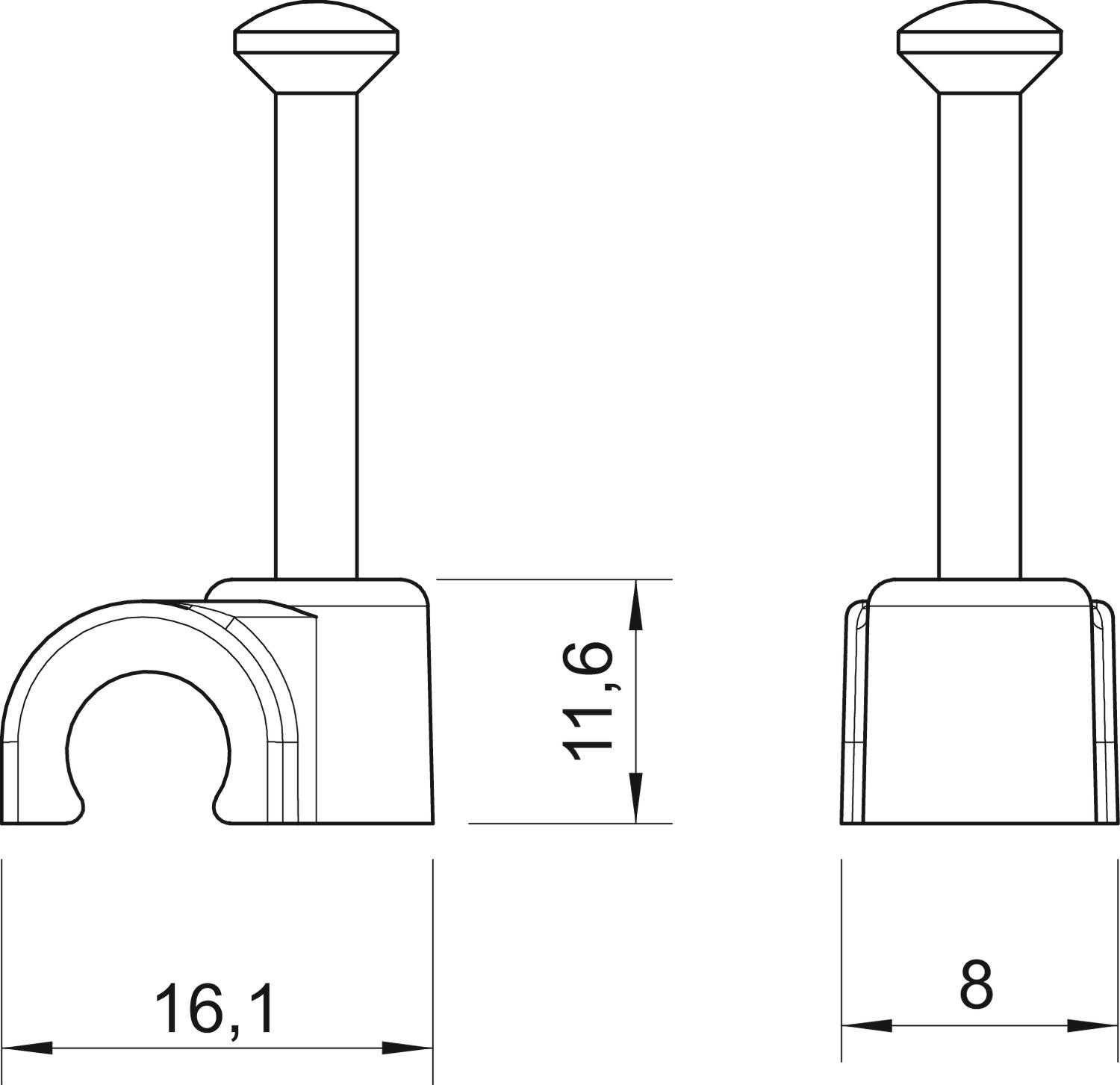

Dimensions

Dimension B 8 mm
Dimension H 11,6 mm
Dimension L 16,1 mm
All types

All types

Types Nail length for cable diameter For nail diameter Colour Item no. Quantity SSU
2009 25 LGR 25 mm 9 mm 2,0x25 Light grey; RAL 7035 2227711
100 piece
2009 35 LGR 35 mm 9 mm 2,0x35 Light grey; RAL 7035 2227738
100 piece
2009 45 LGR 45 mm 9 mm 2,0x45 Light grey; RAL 7035 2227746
100 piece
2009 35 LGR SP 35 mm 9 mm 2,0x35 Light grey; RAL 7035 2227762
200 piece
2009 45 LGR SP 45 mm 9 mm 2,0x45 Light grey; RAL 7035 2227797
200 piece
