- Product description
-
Product description

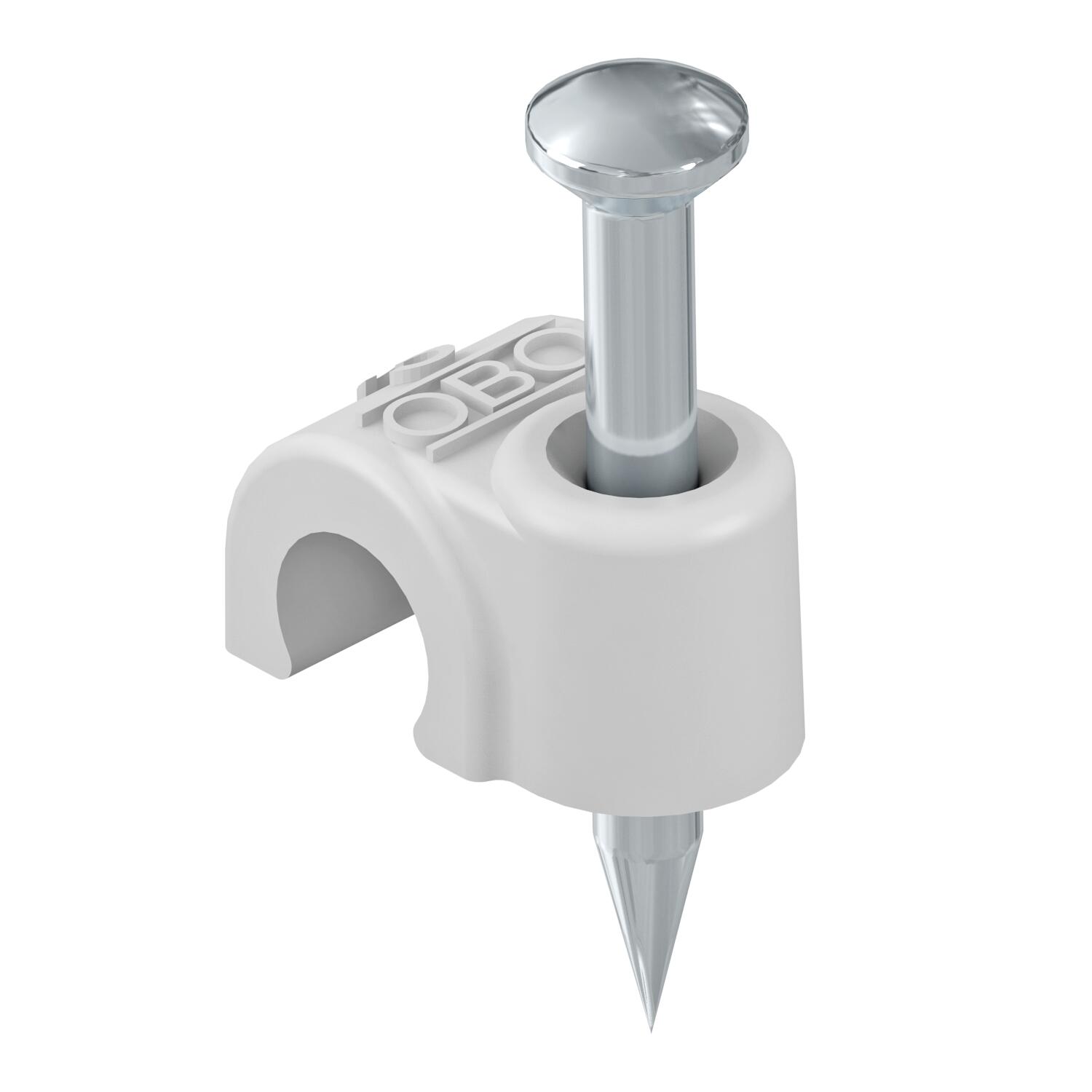

ISO nail clip, short design
- Technical data
-
Technical data

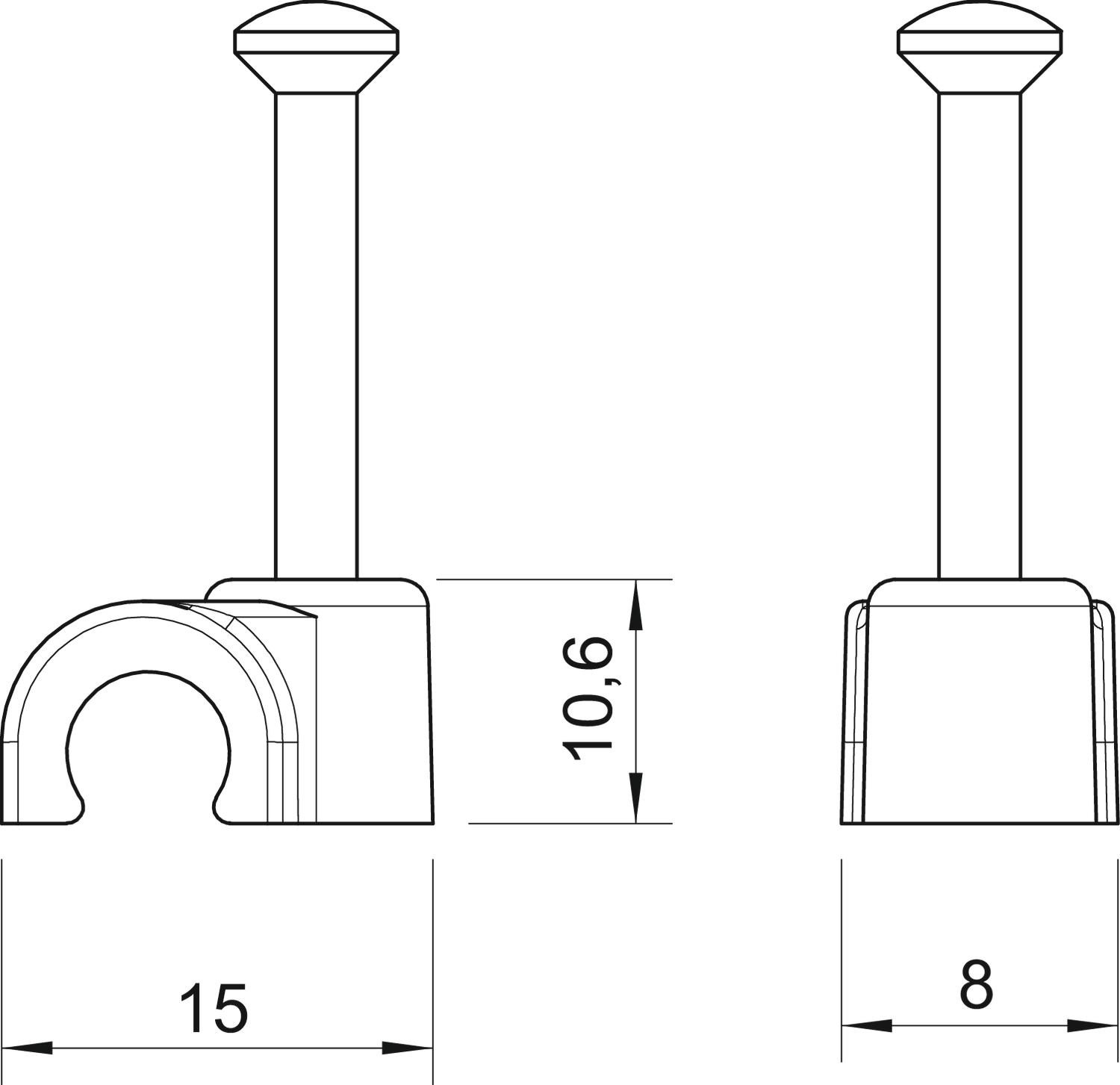

Colour Light grey; RAL 7035 Dimension 8mm, L35 Dimension B 8 mm Dimension H 10,6 mm Dimension L 15 mm Double clip no for cable diameter 8 mm For nail diameter 2,0x35 Halogen-free yes Hardened yes Impact-resistant no Material Polypropylene Nail length 35 mm Pipe locking no Shape Round (for round conductor) Transparent no With nail yes - All types
- Downloads
-
Data sheet 2008 35 LGR / 2227622 , 0.16MB , pdfDeclaration of conformity 2008 35 LGR / 2227622 , 0.06MB , pdf
